Home >> Chevrolet >> 2025 >> Traverse RS, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Transmission Cooling System >> Repair Instructions >> Transmission Fluid Cooler Inlet Pipe Replacement >> Installation Procedure

Installation Procedure

  1. GM5149409Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Outlet Pipe (4) @ Transmission - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

  2. Transmission Fluid Cooler Outlet Pipe Bracket (3) - Install
  3. Transmission Fluid Cooler Outlet Pipe Clip (1) - Clip
  4. Transmission Fluid Cooler Outlet Pipe Bolt (2) - Install Fastener Specifications

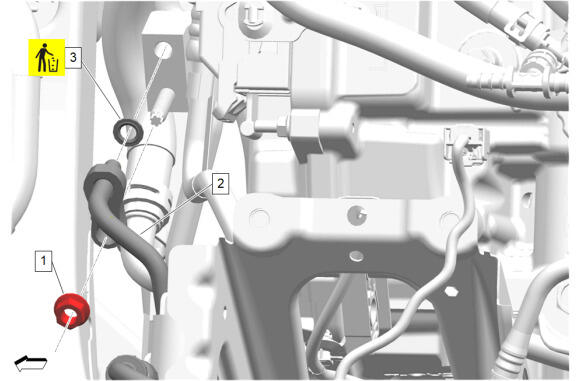

  5. GM6382756Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Outlet Pipe Seal (3) - Install NEW

  6. Transmission Fluid Cooler Outlet Pipe (2) - Install
  7. Transmission Fluid Cooler Outlet Pipe Nut (1) - Install and tighten - Fastener Specifications
  8. Raise the transmission.
  9. GM6614320Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount (2) - Install

    10. CAUTION:

    The stated fastener removal or installation sequence must be followed to avoid damage to the components of the mount assembly.

  10. Transmission Mount Transmission Side Bolt (1) - Install and tighten in sequence [4x] - Fastener Specifications and BOLT TIGHTENING SEQUENCE
  11. GM5396004Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bolt (1) - Install and tighten [2x] - Fastener Specifications

  12. GM6385803Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Brace (2) - Install

  13. Transmission Mount Brace Bolt (1) - Install and tighten [2x] - Fastener Specifications
  14. Remove the transmission jack.
  15. GM6382032Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (2) - Install

  16. Install the retainers.
  17. Battery Tray Bolt (1) - Install and tighten - Fastener Specifications
  18. GM6380295Courtesy of GENERAL MOTORS COMPANY

    Battery Cover (1) - Install

  19. GM6380302Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

  20. GM6380301Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  21. Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
  22. GM6382356Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (3) - Install

  23. Install the electrical connector (2).
  24. Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
  25. GM6380304Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (2) - Install

  26. Battery Hold Down Retainer Nut (1) - Install and tighten - Fastener Specifications
  27. GM6382673Courtesy of GENERAL MOTORS COMPANY

    Connect the wiring harness retainers as necessary.

  28. Radiator Surge Tank Outlet Hose Clip (1, 2) - Install
  29. GM6380344Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (2) - Install

  30. Connect the electrical connectors. (1)
  31. GM6382840Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  32. Battery Distribution Engine Compartment Fuse Block (5) - Install
  33. Install wiring harness terminals.
  34. Battery Negative Post Clamp Nut (4) - Install and tighten - Fastener Specifications
  35. Battery Positive Cable Junction Block Nut (3) - Install and tighten [2x] - Fastener Specifications
  36. Engine Wiring Harness Fuse Block Nut (2) - Install and tighten [2x] - Fastener Specifications
  37. GM6382817Courtesy of GENERAL MOTORS COMPANY

    Power Distributor Fuse Block Cover (1) - Install

  38. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  39. Inspect for transmission fluid leaks.
  40. Remove the drain pan.
  41. Install underbody panels as necessary. Underbody Panel Component Locator
