Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

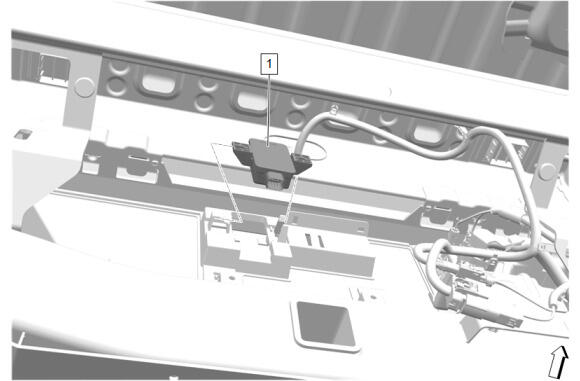

Trailer Tire Pressure Indicator Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

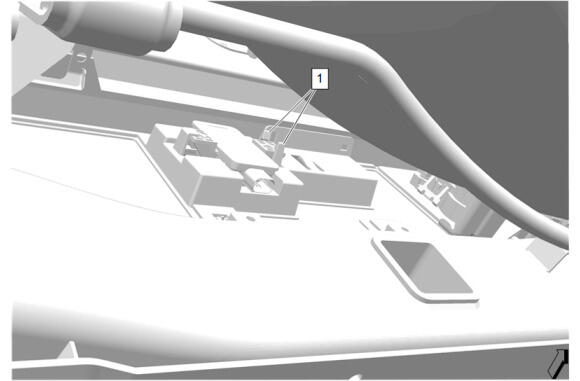

Verify that the trailer tire pressure indicator module is secured by the two retaining clips (1).
Courtesy of GENERAL MOTORS COMPANY

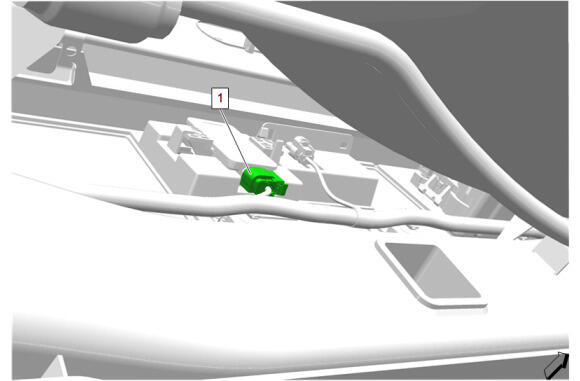

Electrical Connector (1) @ Trailer Tire Pressure Indicator Module - Connect
Courtesy of GENERAL MOTORS COMPANY

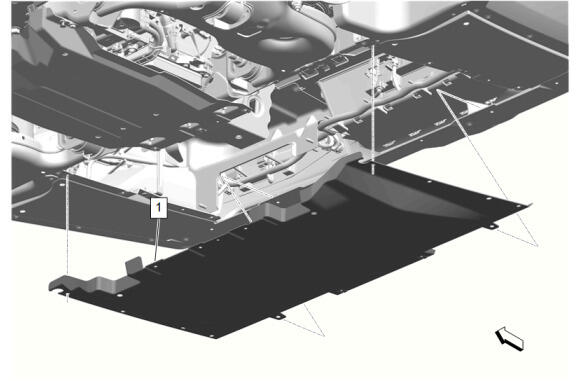

Underbody Rear Air Rear Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

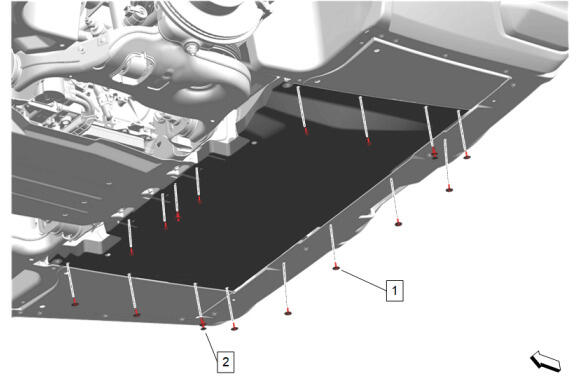

Underbody Rear Air Deflector Retainer (2) - Install [3x]

CAUTION:

Underbody Rear Air Rear Deflector Bolt (1) - Install and tighten [13x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

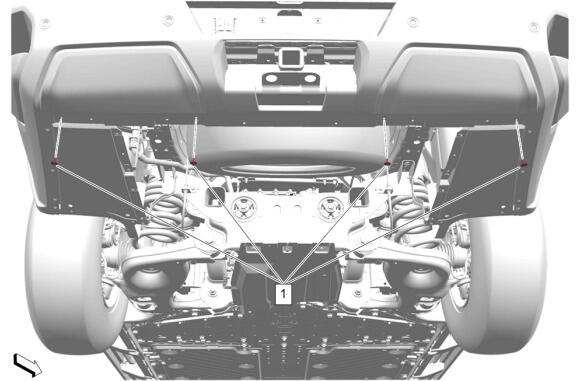

Rear Bumper Fascia Bolt (1) - Install and tighten [4x] - Fastener Specifications
Remove the support and lower the vehicle.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Perform the trailer tire pressure sensor manual learn. Trailer Tire Pressure Sensor Manual Learn
