Installation Procedure

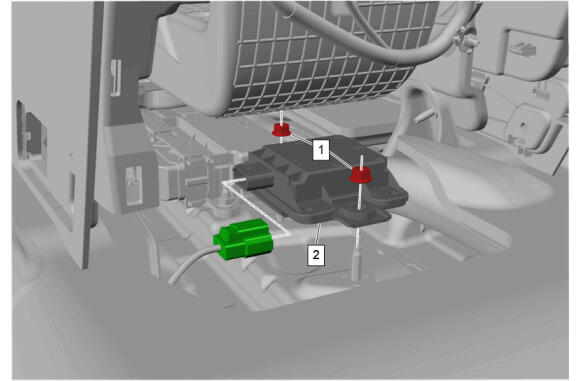

Vehicle Dynamics Sensor (2) - Install
- Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector.
Connect the electrical connectors.

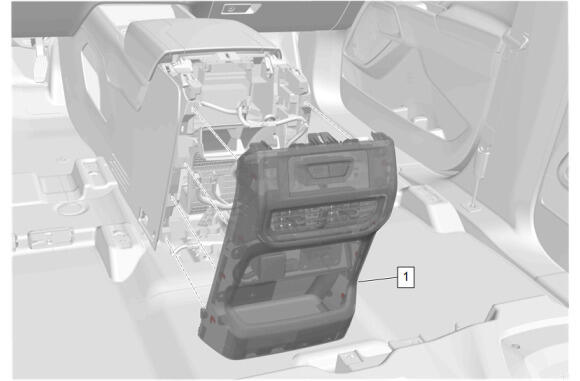

- Front Floor Console Rear Trim Panel (1) - Install
Front Floor Console Rear Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.

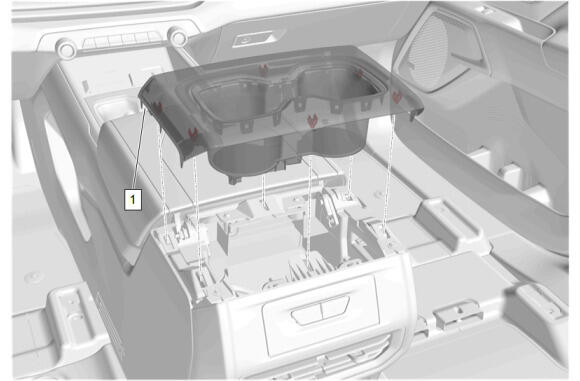

- Front Floor Console Rear Cup Holder (1) - Install
Front Floor Console Rear Cover Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications

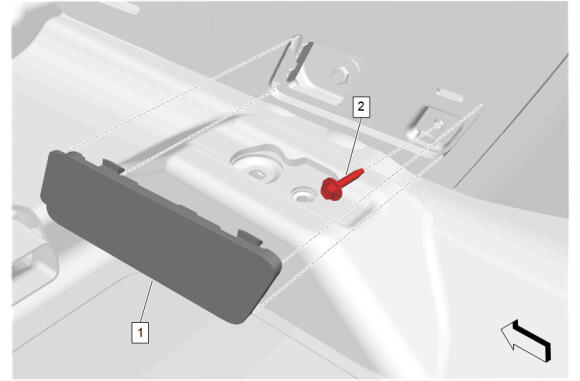

- Front Floor Console Bolt Access Hole Cover - Left Side and Right Side (1) - Install [2x]
- Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
- Perform the accessory power outlet enabling procedure. Accessory Power Outlet System Disabling (KV7)
CAUTION:
Refer to Fastener Caution .
