Fastener Specifications

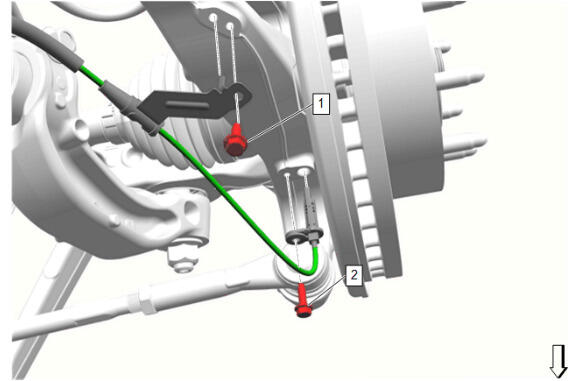

GM6478350Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bracket Bolt - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement
2 Front Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement

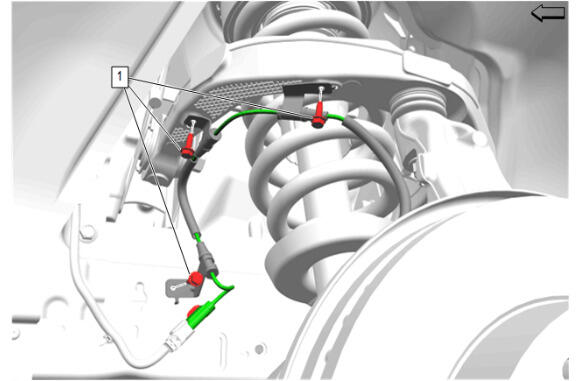

GM6318388Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bolt [3x] - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement
GM6287090Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Speed Sensor Bracket Bolt - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement
2 Rear Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement

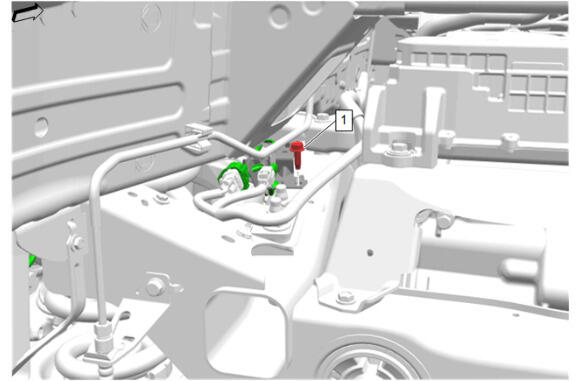

GM6321963Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor Bracket @ Rear Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Speed Sensor Bracket Bolt - - 22 N.m (16 lb ft) Rear Wheel Speed Sensor Replacement

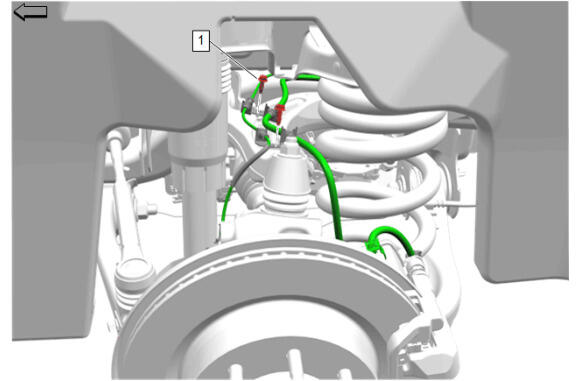

GM6287088Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor Bracket @ Rear Suspension Upper Control Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Speed Sensor Bracket Bolt [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement

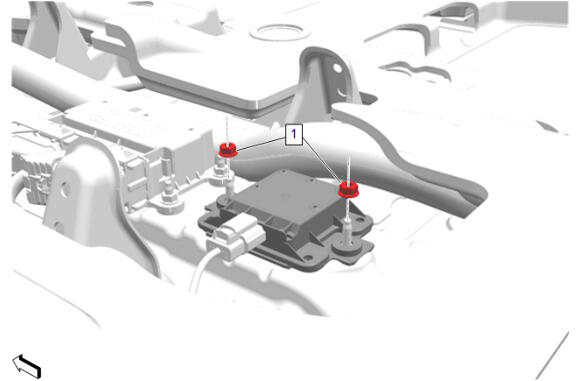

GM6464558Courtesy of GENERAL MOTORS COMPANY
Vehicle Dynamics Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Vehicle Dynamic Sensor Nut [2x] - - 9 N.m (80 lb in) Vehicle Dynamics Sensor Replacement
