Installation Procedure

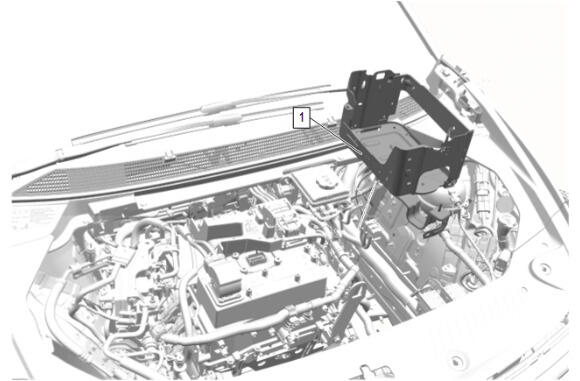

  1. GM6380404Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Install

  2. GM6379275Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Battery Tray Bolt (2) - Install and tighten [2x] - Fastener Specifications

  3. Battery Tray Nut (1) - Install and tighten [2x] - Fastener Specifications

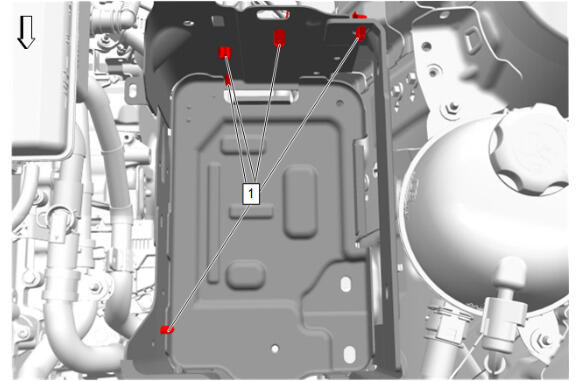

  4. GM6380383Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage [5x]

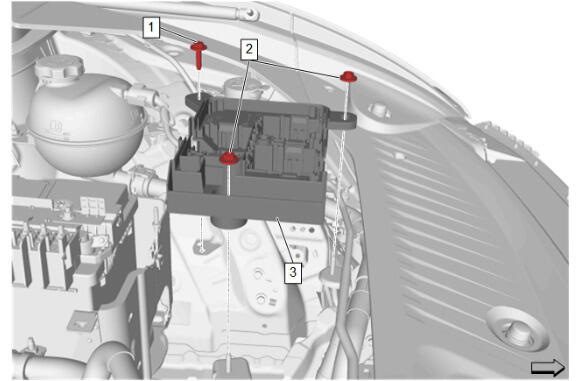

  5. GM6377806Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Bracket (3) - Install

  6. Engine Wiring Harness Junction Block Shield Nut (2) - Install and tighten [2x] - Fastener Specifications
  7. Engine Wiring Harness Junction Block Shield Bolt (1) - Install and tighten - Fastener Specifications

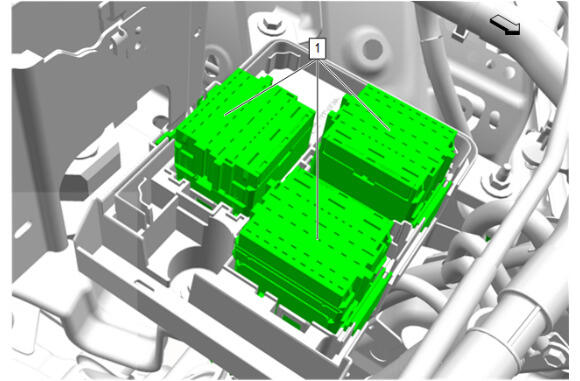

  8. GM6396090Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect [3x]

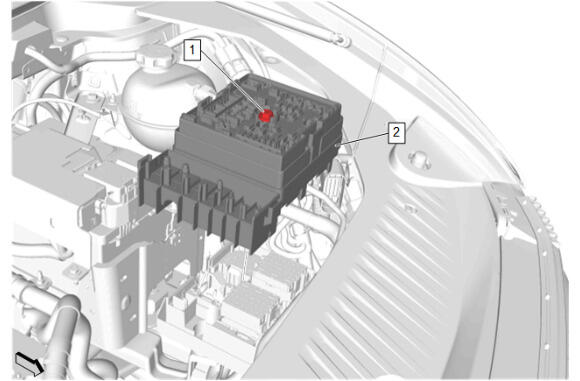

  9. GM6377812Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block (2) - Install

  10. Engine Wiring Harness Junction Block Bolt (1) - Tighten - Fastener Specifications

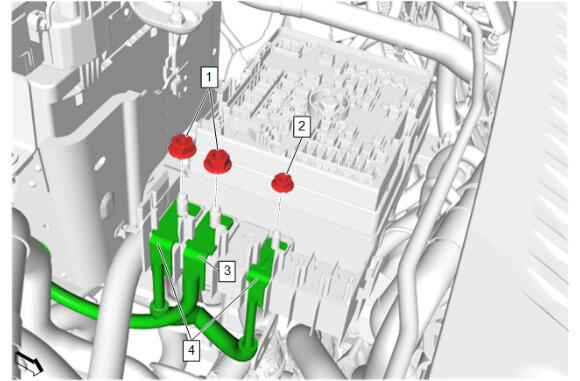

  11. GM6377811Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (4) - Install [2x]

  12. Battery Positive Cable (3) - Install
  13. Fuse Block Nut (2) - Install and tighten - Fastener Specifications
  14. Engine Wiring Harness Fuse Block Nut (1) - Install and tighten [2x] - Fastener Specifications
  15. GM6377810Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Cover (2) - Install

  16. Retaining Tab (1) - Engage [2x]
  17. GM6377808Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block Cover (2) - Install

  18. Retaining Tab (1) - Engage [2x]
  19. GM6375562Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

  20. GM6375560Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  21. Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
  22. GM6375557Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (3) - Install

  23. Retaining Tab (2) - Engage [2x]
  24. Battery Distribution Engine Compartment Fuse Block (1) - Tighten - Fastener Specifications
  25. GM6375555Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (2) - Install

  26. Retaining Tab (1) - Engage [2x]
  27. GM6374899Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

  28. Battery Monitor Module (1) - Tighten - Fastener Specifications
  29. GM6374898Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  30. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  31. Learn the battery sensor module. Battery Sensor Module Learn
