Installation Procedure

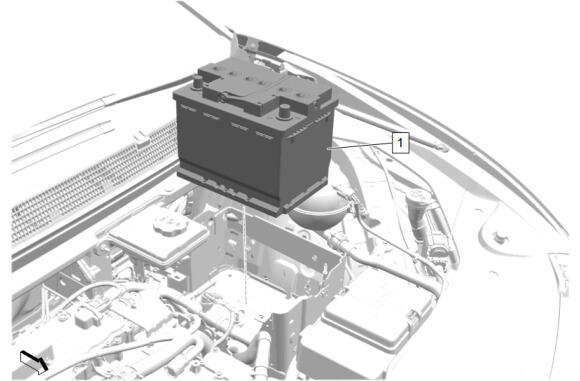

  1. GM6375562Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

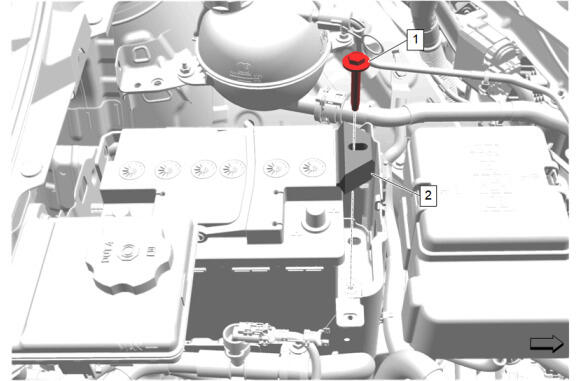

  2. GM6375560Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications

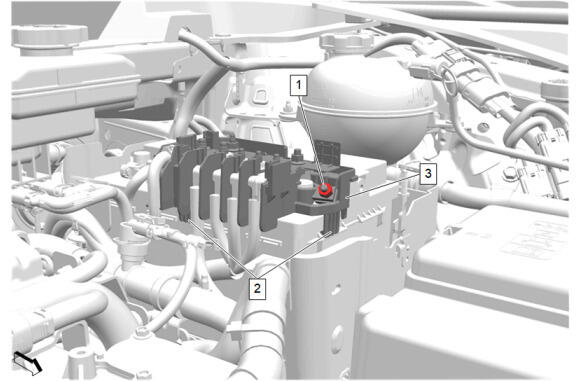

  4. GM6375557Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (3) - Install

  5. Retaining Tab (2) - Engage [2x]
  6. Battery Distribution Engine Compartment Fuse Block (1) - Tighten - Fastener Specifications

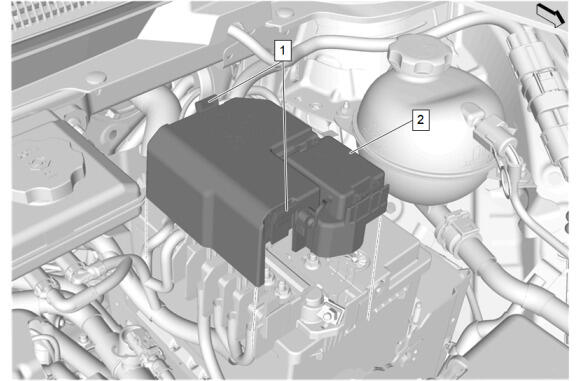

  7. GM6375555Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (2) - Install

  8. Retaining Tab (1) - Engage [2x]

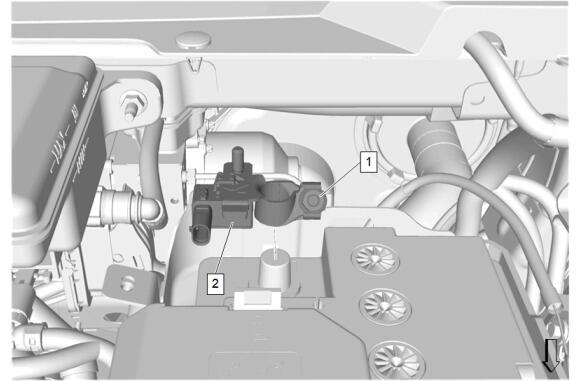

  9. GM6374899Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

  10. Battery Monitor Module (1) - Tighten - Fastener Specifications

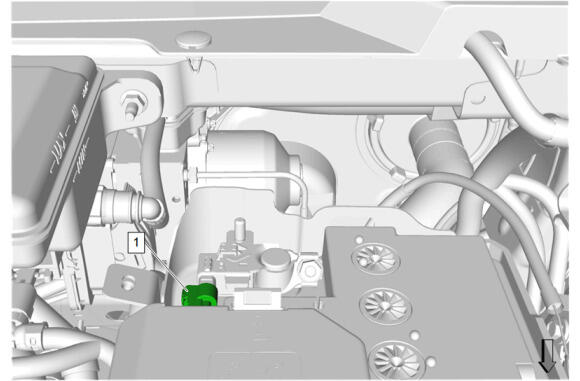

  11. GM6374898Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  13. Learn the battery sensor module. Battery Sensor Module Learn
