Installation Procedure

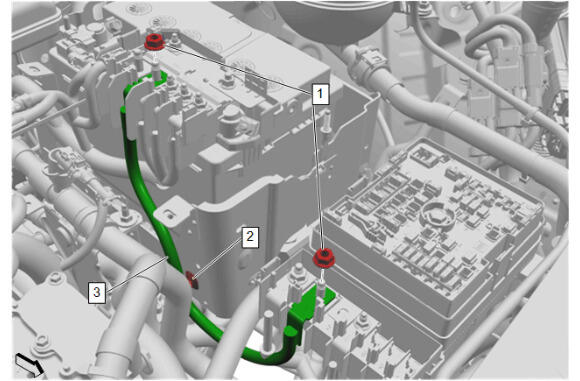

  1. GM6377797Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (3) - Install

  2. Engage the battery positive cable retainer (2).
    3. CAUTION:

    Refer to Fastener Caution

  3. Engine Wiring Harness Fuse Block Nut (1) - Install and tighten [2x] - Fastener Specifications

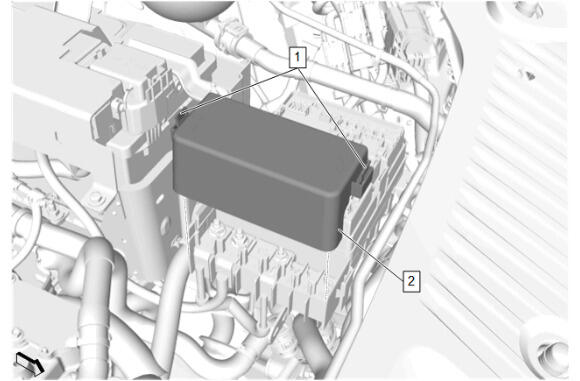

  4. GM6377810Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Cover (2) - Install

  5. Retaining Tab (1) - Engage [2x]

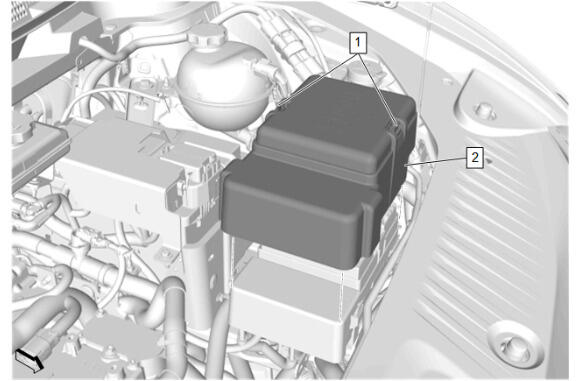

  6. GM6377808Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block Cover (2) - Install

  7. Retaining Tab (1) - Engage [2x]
  8. GM6375555Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (2) - Install

  9. Retaining Tab (1) - Engage [2x]
  10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
