Installation Procedure

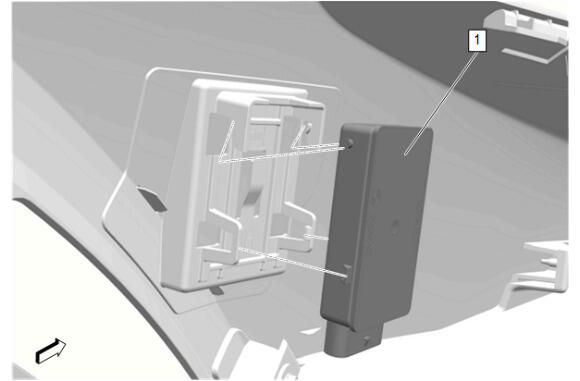

UHF Low Energy Remote Control Access Sensor Transceiver - Position 3 (1) - Install
- Ensure that the retaining tabs are fully secured.
- Connect the electrical connector.

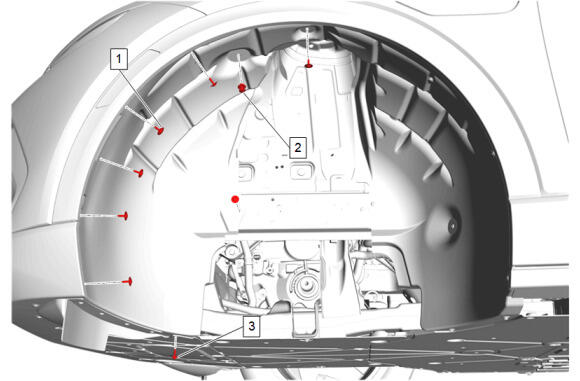

Front Wheelhouse Liner (1) - Install
- CAUTION:
Refer to Fastener Caution
Front Wheelhouse Liner Bolt (1) - Install and tighten [7x] - Fastener Specifications
- Retainer (2) - Install
- Front Bumper Fascia Lower Stiffener Bolt (3) - Install and tighten - Fastener Specifications
Front Tire Front Air Deflector (2) - Install

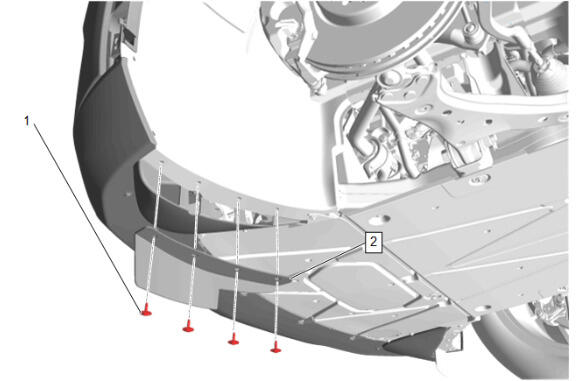

- Front Tire Front Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
