Installation Procedure

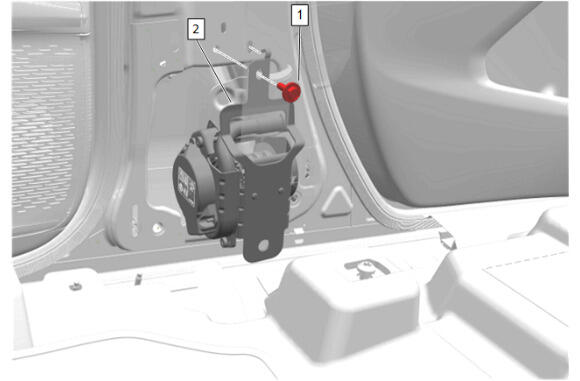

Front Seat Belt Retractor (2) - Install
- Front Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector and install the wiring harness retainers as necessary.
- NOTE:
Some components not shown for graphic clarity.

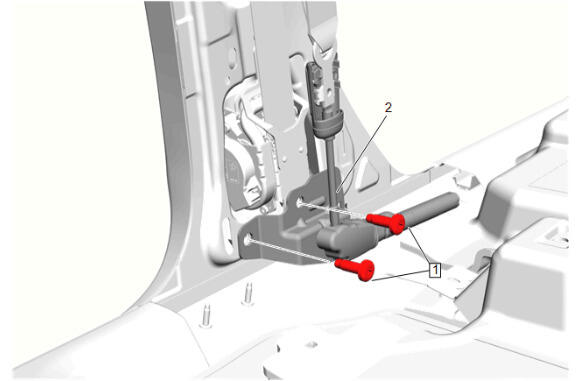

Front Seat Belt Anchor Plate Tensioner (2) - Install
- Front Seat Center Belt Anchor Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

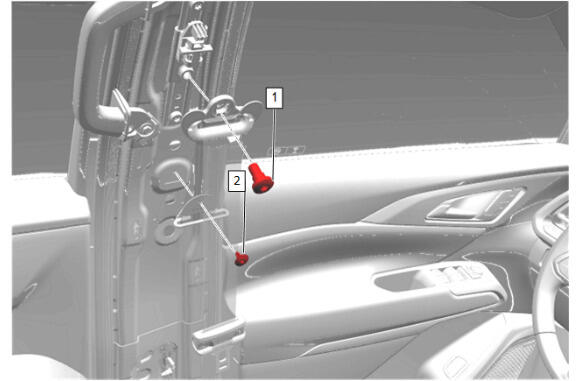

Front Seat Belt Guide Bolt (1) - Install and tighten - Fastener Specifications
- Push Pin (2) - Install

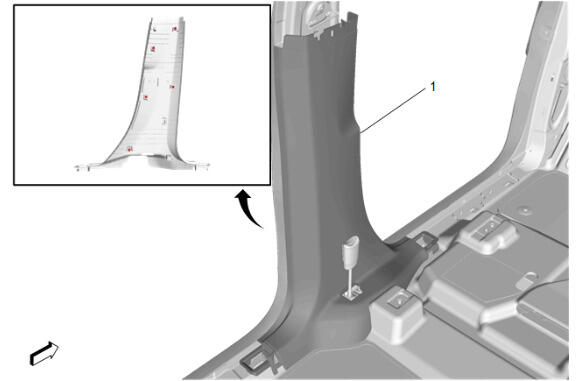

Center Pillar Lower Garnish Molding (1) - Install
- Ensure the seat belt webbing does not become trapped during installation.
Rear Side Door Sill Garnish Molding (1) - Install

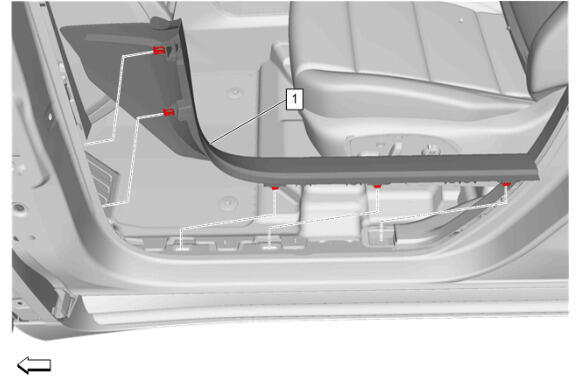

Front Side Door Sill Garnish Molding (1) - Install

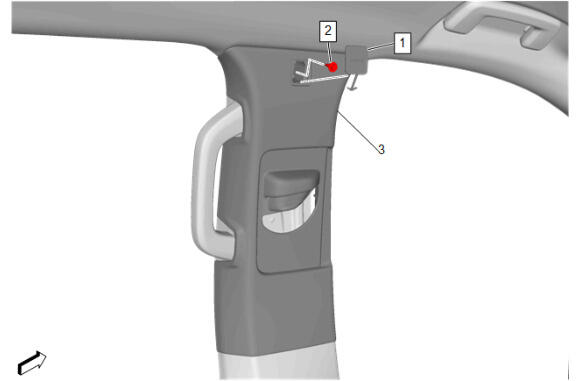

Feed seat belt retractor anchor threw center pillar upper trim panel (3).
- Center Pillar Upper Trim Panel (3) - Install
- Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
- Center Pillar Upper Trim Panel Bolt Cap (1) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.

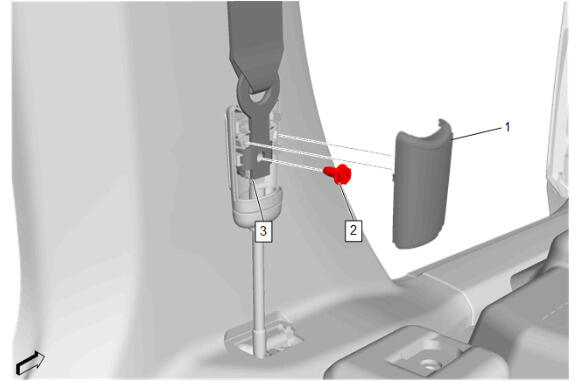

- Front Seat Belt Anchor Plate Tensioner Bolt (2) - Install and tighten - Fastener Specifications
- Front Seat Belt Anchor Plate Tensioner Cover (1) - Install
Center Pillar Lower Garnish Molding Lower Hole Cover (1) - Install
- Enable the SIR System. SIR Disabling and Enabling
Refer to Fastener Caution .
