Fastener Specifications

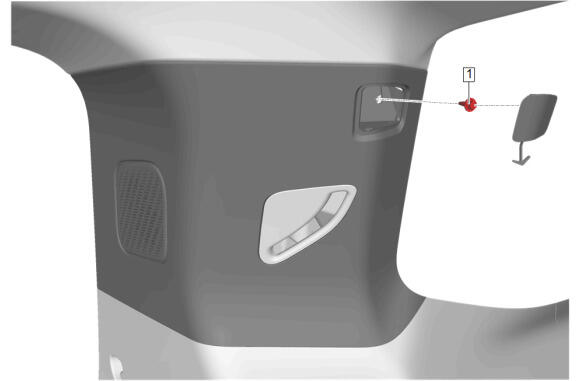

GM6422836Courtesy of GENERAL MOTORS COMPANY
Body Rear Corner Upper Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Body Rear Corner Upper Garnish Molding Bolt - - 2.5 N.m (22 lb in) Body Rear Corner Upper Garnish Molding Replacement

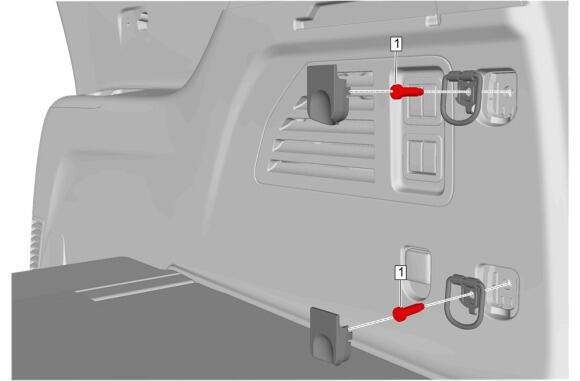

GM6422840Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt - - 15 N.m (11 lb ft) Cargo Tie Down Loop Replacement

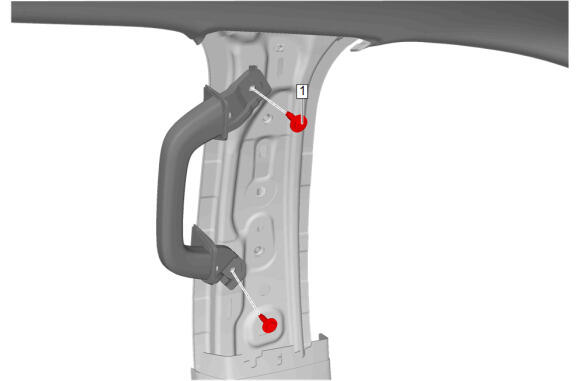

GM6422834Courtesy of GENERAL MOTORS COMPANY
Center Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Center Pillar Assist Handle Replacement

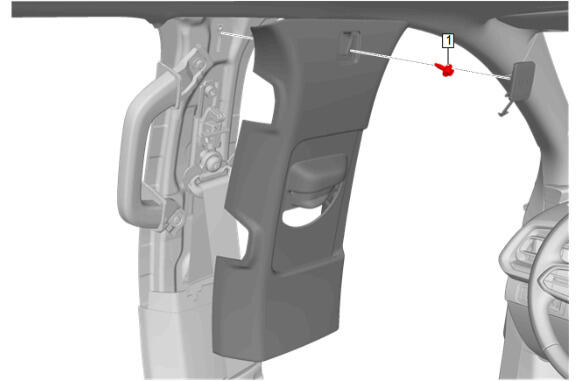

GM6422837Courtesy of GENERAL MOTORS COMPANY
Center Pillar Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Upper Garnish Molding Bolt - - 2.5 N.m (22 lb in) Center Pillar Upper Trim Panel Replacement

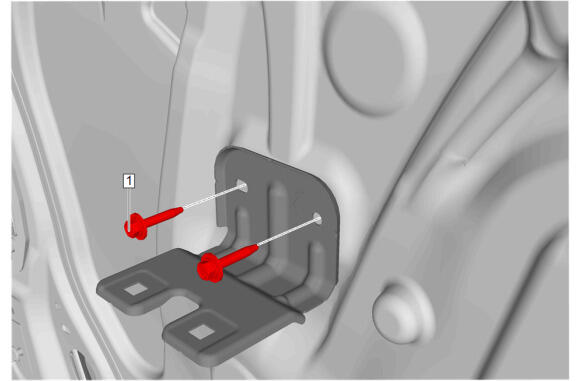

GM6422832Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Armrest Bracket Replacement

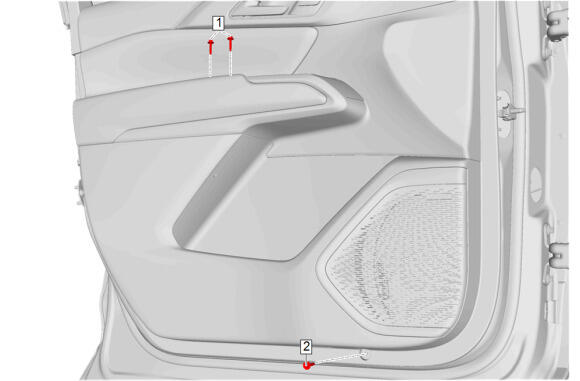

GM6422830Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Pull Cup Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation
2 Front Side Door Trim Panel Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation

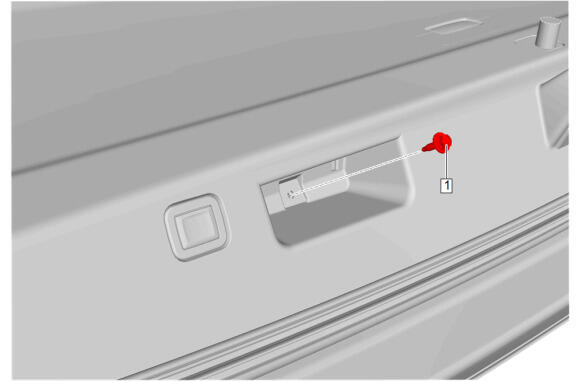

GM6422839Courtesy of GENERAL MOTORS COMPANY
Liftgate Lower Trim Finish Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Lower Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Liftgate Lower Trim Finish Panel Replacement

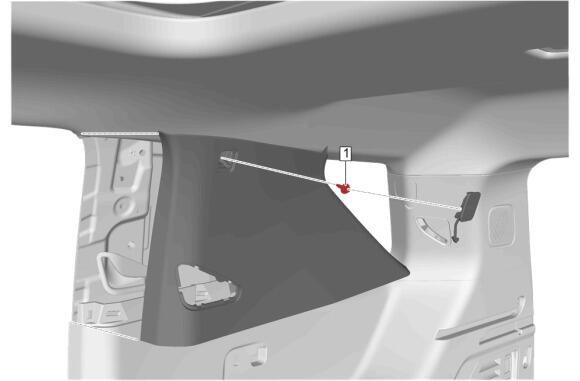

GM6422838Courtesy of GENERAL MOTORS COMPANY
Quarter Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Quarter Upper Trim Panel Bolt - - 2.5 N.m (22 lb in) Quarter Upper Trim Panel Replacement

GM6399531Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Floor Stowage Compartment Divider

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Floor Stowage Compartment Divider Retainer [4x] - - 2.5 N.m (22 lb in) Rear Compartment Floor Stowage Compartment Divider Replacement

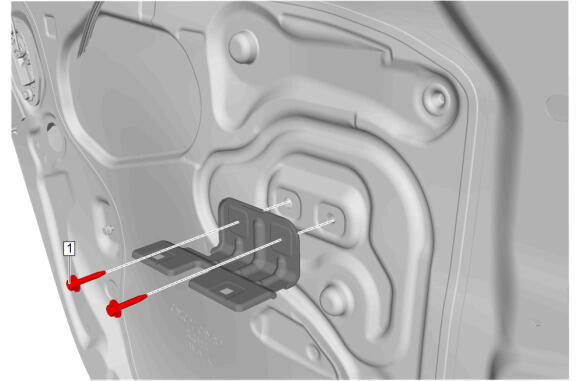

GM6422829Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Pull Cup Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Armrest Pull Cup Bracket Replacement
GM6422831Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation
2 Rear Side Door Trim Panel Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation

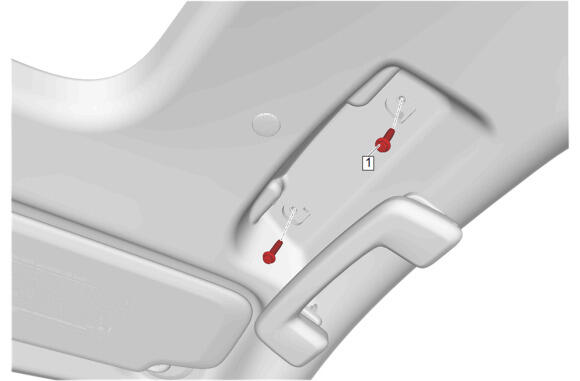

GM6422835Courtesy of GENERAL MOTORS COMPANY
Roof Rail Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rail Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Roof Rail Assist Handle Replacement

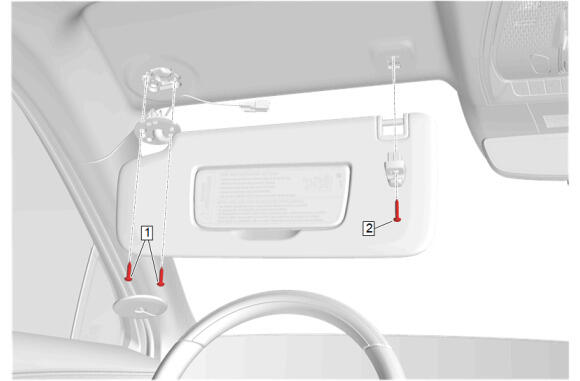

GM5981596Courtesy of GENERAL MOTORS COMPANY
Sunshade and Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [2x] - - 2.5 N.m (22 lb in) Sunshade Replacement

2 Sunshade Support Bolt - - 2.5 N.m (22 lb in) Sunshade Support Replacement

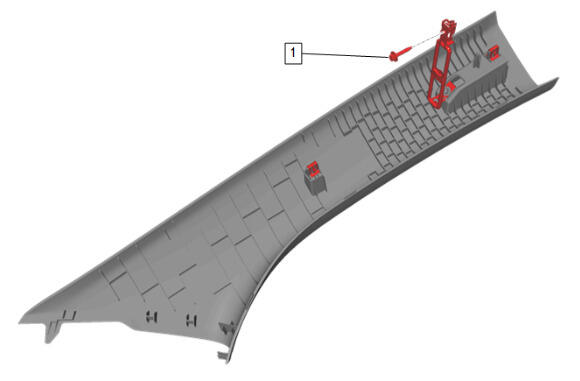

GM6480260Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Garnish Molding Bolt [2x] - - 2.5 N.m (22 lb in) Windshield Garnish Molding Replacement
