Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

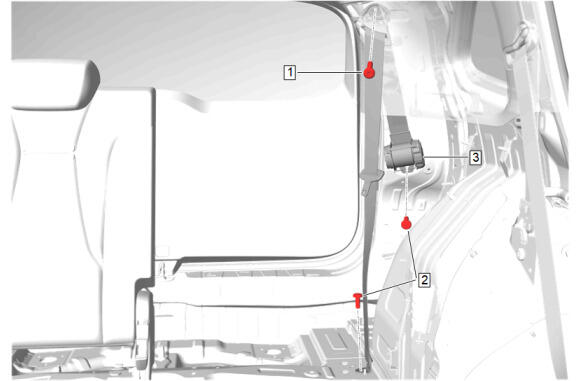

3rd Row Seat Belt Retractor (3) - Install

CAUTION:

Refer to Fastener Caution .

3rd Row Seat Belt Retractor Bolt (2) - Install and tighten [2x] - Fastener Specifications
Rear Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Quarter Lower Rear Trim Panel- Left Side (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Rear End Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Liftgate Lock Striker Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Compartment Divider (2) - Install
Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Front Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Load Floor Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Cargo Tie Down Loop (3) - Install [2x]
Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
Cargo Tie Down Loop Trim Cover (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Body Rear Corner Upper Garnish Molding Bolt (3) - Install
Body Rear Corner Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Quarter Upper Trim Panel (3) - Install
Quarter Upper Trim Panel Bolt (2) - Install and tighten - Fastener Specifications
Body Lock Pillar Upper Trim Panel Bolt Hole Plug (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Sill Garnish Molding (1) - Install
Enable the SIR System. SIR Disabling and Enabling
