Installation Procedure

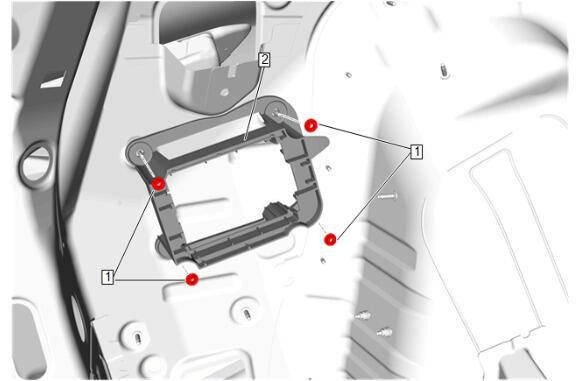

  1. GM6385550Courtesy of GENERAL MOTORS COMPANY

    Rear Body Fuse Block Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Rear Body Fuse Block Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

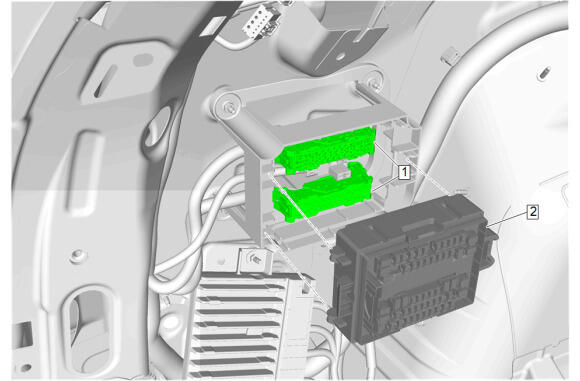

  3. GM6420257Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

  4. Body Wiring Harness Junction Block (2) - Install
  5. GM6399525Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel- Left Side (1) - Install

  6. Connect the electrical connectors.
  7. GM4755353Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

  8. GM4755166Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lock Striker Cover (1) - Install

  9. GM6399531Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Divider (2) - Install

  10. Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
  11. GM6399529Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Front Trim (1) - Install

  12. GM6399524Courtesy of GENERAL MOTORS COMPANY

    Load Floor Trim Panel (1) - Install

  13. GM6399467Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (3) - Install [2x]

  14. Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
  15. Cargo Tie Down Loop Trim Cover (1) - Install [2x]
  16. GM6399466Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding (3) - Install

  17. Body Rear Corner Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
  18. Body Rear Corner Upper Garnish Molding Cap (1) - Install
  19. GM6399528Courtesy of GENERAL MOTORS COMPANY

    Quarter Upper Trim Panel (3) - Install

  20. Quarter Upper Trim Panel Bolt (2) - Install and tighten - Fastener Specifications
  21. Quarter Upper Trim Panel Bolt Cap (1) - Install
  22. GM4772715Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Sill Garnish Molding (1) - Install

  23. Enable the SIR System. SIR Disabling and Enabling
  24. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
