Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

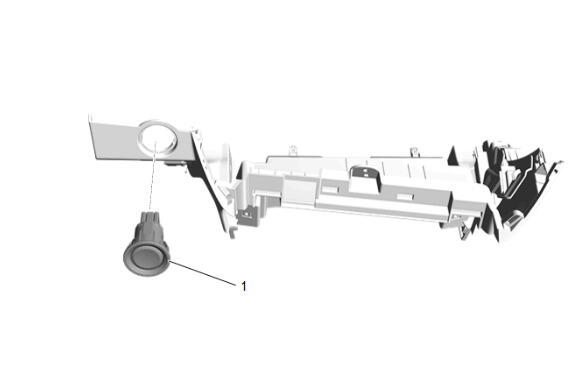

Ignition and Start Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Center Trim Panel (2) - Install

CAUTION:

Refer to Fastener Caution .

Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

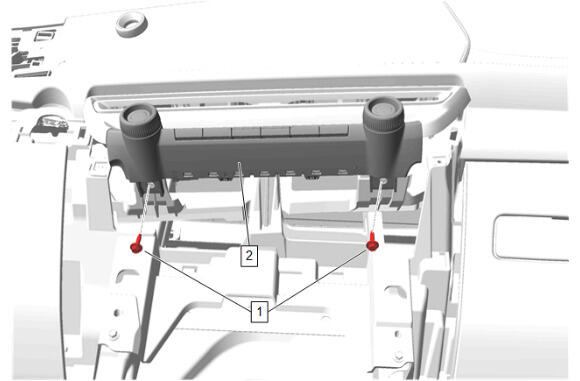

Heater and Air Conditioning User Interface Control (2) - Install
Heater and Air Conditioning User Interface Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

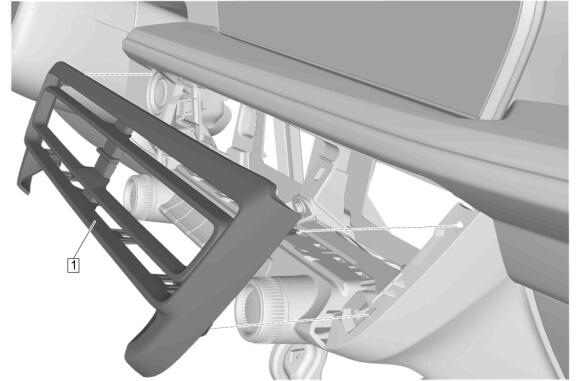

Trim Accent Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Door Opening Frame (2) - Install
Instrument Panel Compartment Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

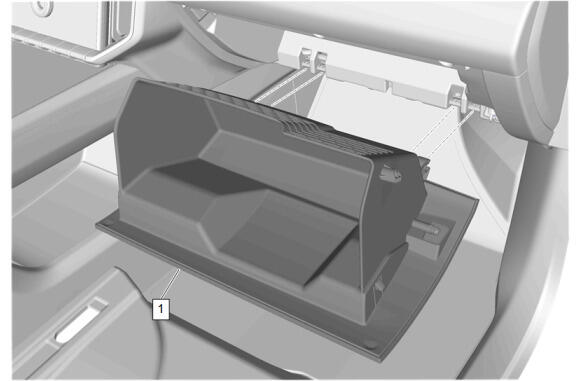

Instrument Panel Compartment Door (1) - Install
Courtesy of GENERAL MOTORS COMPANY

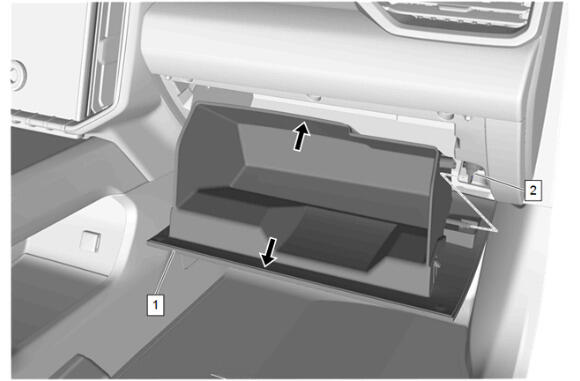

Push the sides of the instrument panel compartment door (1) to allow the door to go past the stops.
Connect the instrument panel compartment door dampener (2) to the instrument panel compartment door (1).
Close the instrument panel compartment door (1).
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Insert the tab at the top of the instrument panel outer trim cover (1) into the instrument panel before installing.
Instrument Panel Outer Trim Cover (1) - Install
