Fastener Specifications

GM6638485Courtesy of GENERAL MOTORS COMPANY

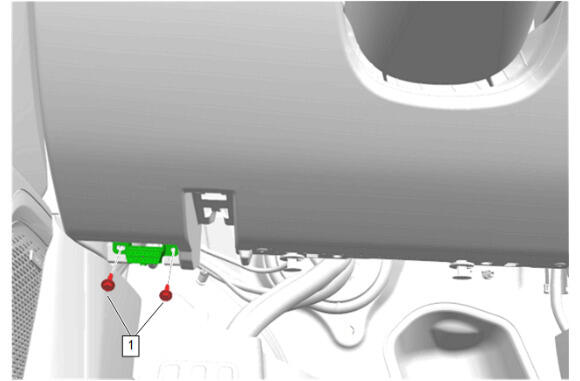

Data Link Connector Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement (Left Side) , or Front Floor Console Extension Panel Replacement (Right Side)
GM6422555Courtesy of GENERAL MOTORS COMPANY

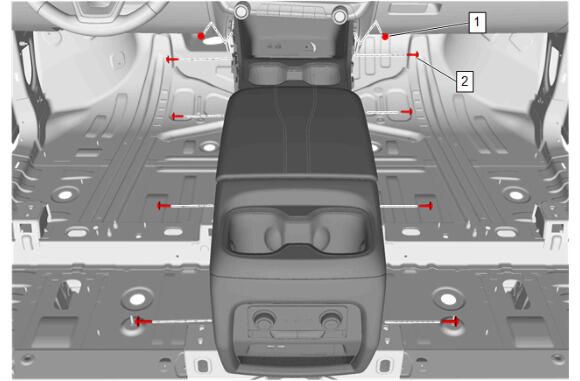

Front Floor Console Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation
2 Front Floor Console Bolt [8x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation
GM6422325Courtesy of GENERAL MOTORS COMPANY

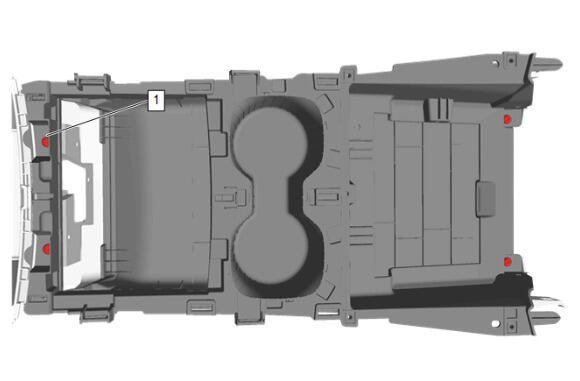

Front Floor Console Compartment Front Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Stowage Tray Replacement
GM6422509Courtesy of GENERAL MOTORS COMPANY

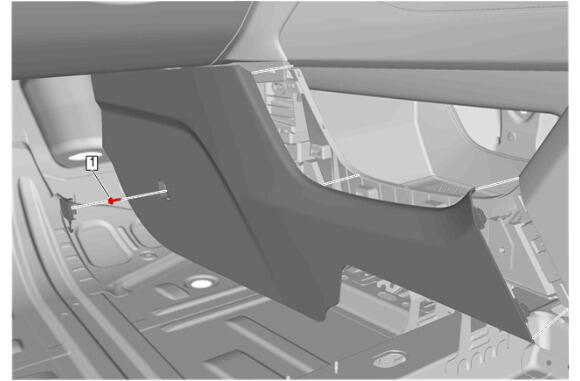

Front Floor Console Extension Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Panel Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement (Left Side) , or Front Floor Console Extension Panel Replacement (Right Side)
GM6422515Courtesy of GENERAL MOTORS COMPANY

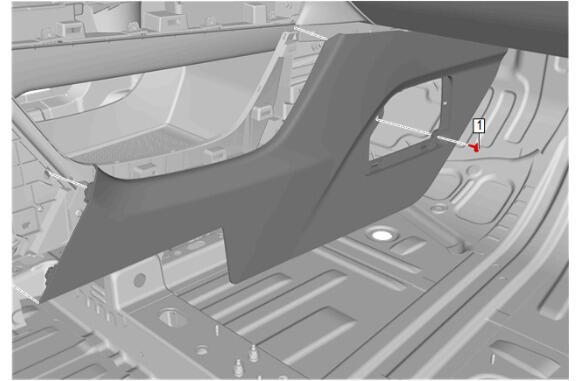

Front Floor Console Extension Panel - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Panel Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement (Left Side) , or Front Floor Console Extension Panel Replacement (Right Side)
GM6399481Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Front Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Front Compartment Replacement

GM6422501Courtesy of GENERAL MOTORS COMPANY

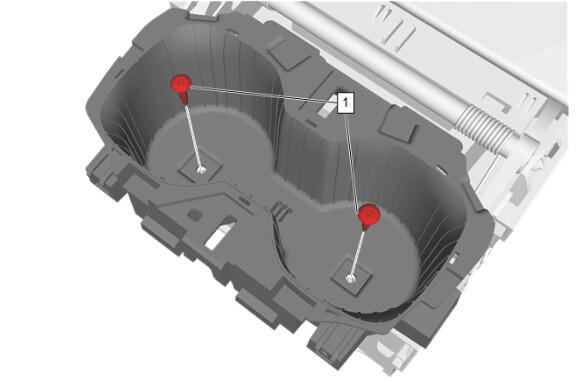

Front Floor Console Rear Cup Holder

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Cup Holder Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Cup Holder Replacement
GM6399484Courtesy of GENERAL MOTORS COMPANY

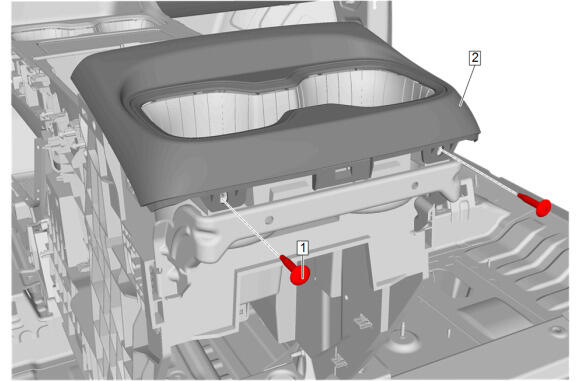

Front Floor Console Rear Trim Lower Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Cup Holder Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Cup Holder Replacement
GM6422484Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Stowage Tray

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Stowage Tray Bolt [6x] - - 2.5 N.m (22 lb in) Front Floor Console Stowage Tray Replacement
GM6399493Courtesy of GENERAL MOTORS COMPANY

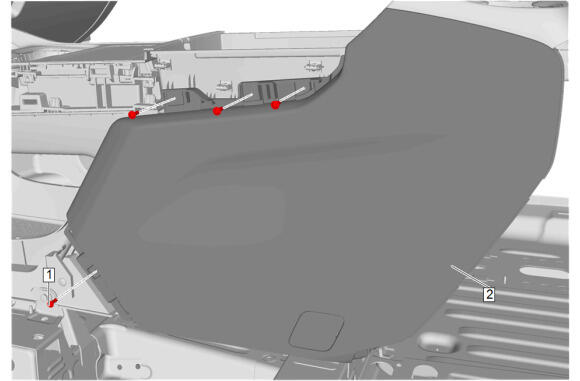

Front Floor Rear Console Side Trim Panel - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Side Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Rear Console Side Trim Panel Replacement (Left Side) , or Front Floor Rear Console Side Trim Panel Replacement (Right Side)
GM6399494Courtesy of GENERAL MOTORS COMPANY

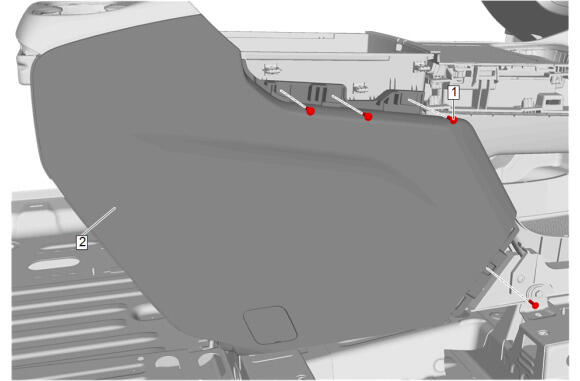

Front Floor Rear Console Side Trim Panel - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Side Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Rear Console Side Trim Panel Replacement (Left Side) , or Front Floor Rear Console Side Trim Panel Replacement (Right Side)
GM6420690Courtesy of GENERAL MOTORS COMPANY

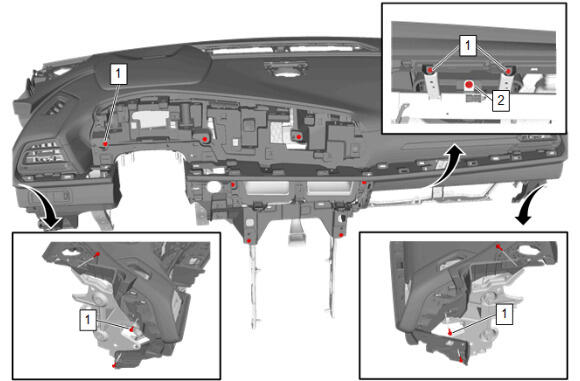

Instrument Panel Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [15x] - - 2.5 N.m (22 lb in) Instrument Panel Removal and Installation
2 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Removal and Installation
GM6652819Courtesy of GENERAL MOTORS COMPANY

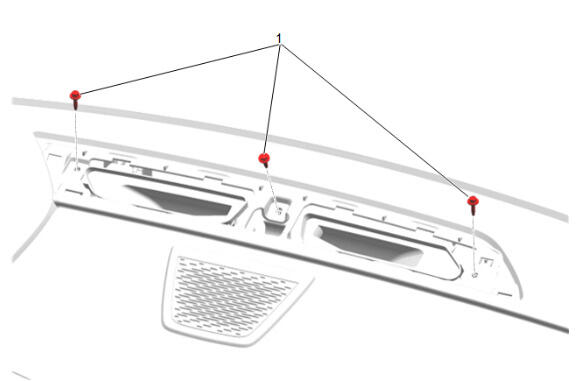

Instrument Panel Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Removal and Installation
GM6399509Courtesy of GENERAL MOTORS COMPANY

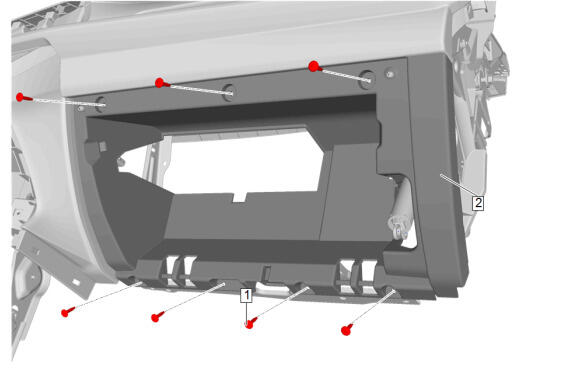

Instrument Panel Compartment Door Opening Frame

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Bolt [7x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Door Opening Frame Replacement
GM6399511Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
GM6399510Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Deflector Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement
GM6399513Courtesy of GENERAL MOTORS COMPANY

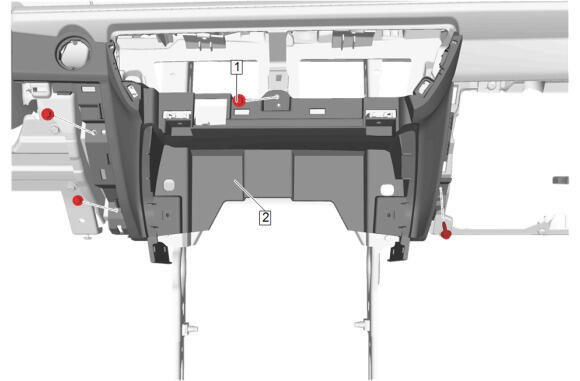

Instrument Panel Lower Center Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Center Trim Panel Replacement

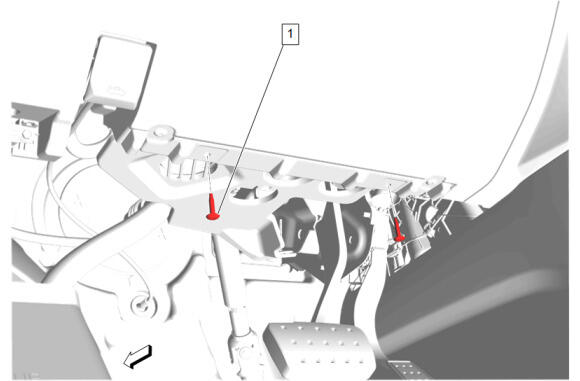

GM6595842Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Trim Panel Insulator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Trim Panel Insulator Bolt [2x] - - 2.0 N.m (18 lb in) Regulatory Emergency Call Backup Speaker Replacement
GM6420270Courtesy of GENERAL MOTORS COMPANY

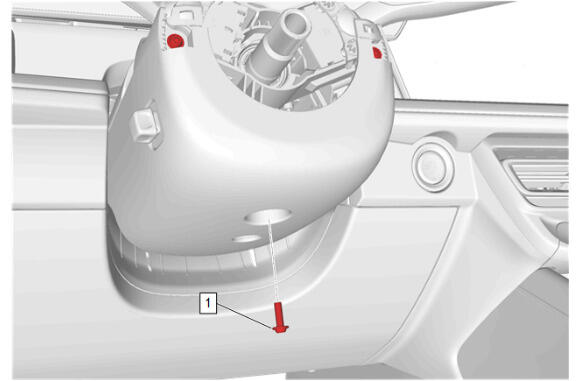

Instrument Panel Steering Column Lower Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement (+UKL) , or Instrument Panel Steering Column Lower Trim Cover Replacement (-UKL)
GM6422296Courtesy of GENERAL MOTORS COMPANY

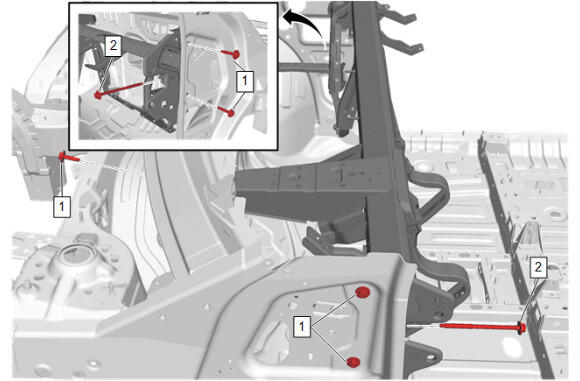

Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Tie Bar Bolt [5x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
2 Instrument Panel Tie Bar Bolt [2x] - - 12 N.m (106 lb in) Instrument Panel Tie Bar Replacement

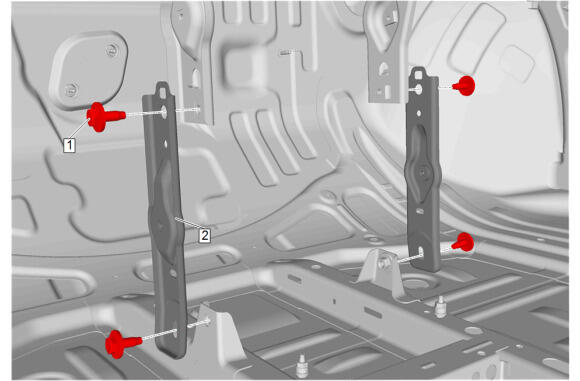

GM6399516Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar Brace

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Tie Bar Brace Bolt [4x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Brace Replacement
