Installation Procedure

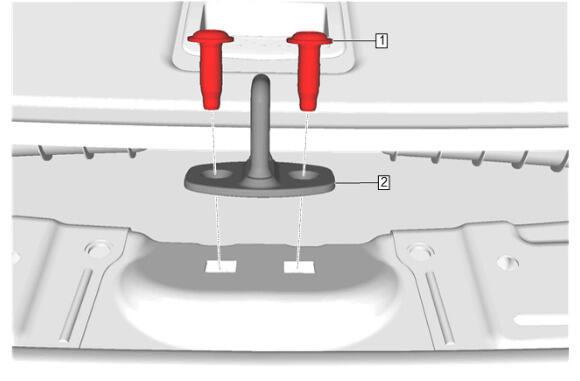

Liftgate Latch Striker (2) - Install
- Liftgate Latch Striker Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Use a clean towel and a solution of 50 / 50 isopropyl alcohol and water to remove the grease pencil markings.
Rear End Trim Finish Panel (1) - Install
Liftgate Lock Striker Cover (1) - Install
Rear Compartment Floor Stowage Compartment Divider (2) - Install
- Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
Load Floor Trim Panel (1) - Close
CAUTION:
Refer to Fastener Caution .
