Installation Procedure

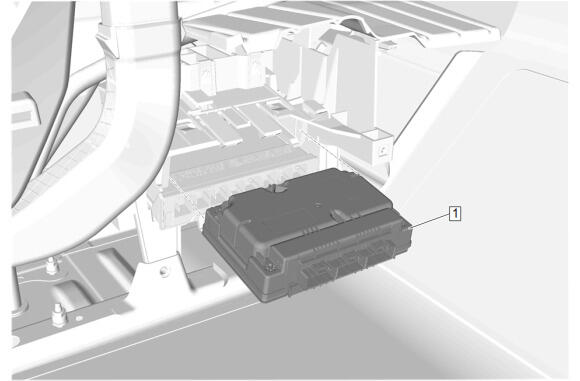

  1. GM6401152Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.
  4. GM6399480Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install

  5. Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
  6. GM6399482Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Cover (1) - Install

  7. Perform the necessary programming and setup procedure: Control Module References
