Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

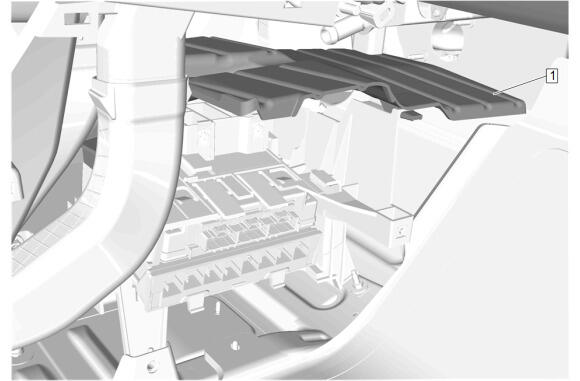

Body Control Module Shield (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

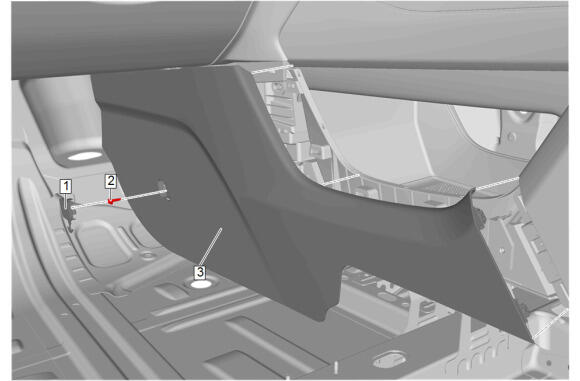

Front Floor Console Extension Panel - Left Side (3) - Install

CAUTION:

Front Floor Console Extension Panel Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

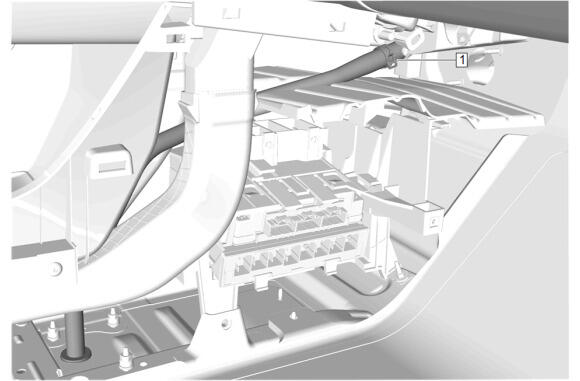

Air Conditioning Evaporator and Blower Module Drain Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (2) - Install
Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Front Cover (1) - Install
