Installation Procedure

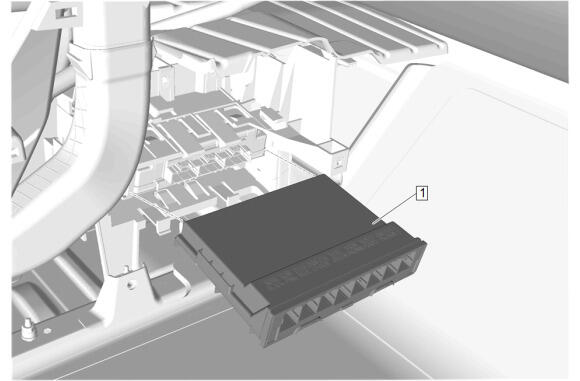

  1. GM6401138Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors for the body control module (1) and serial data gateway module.

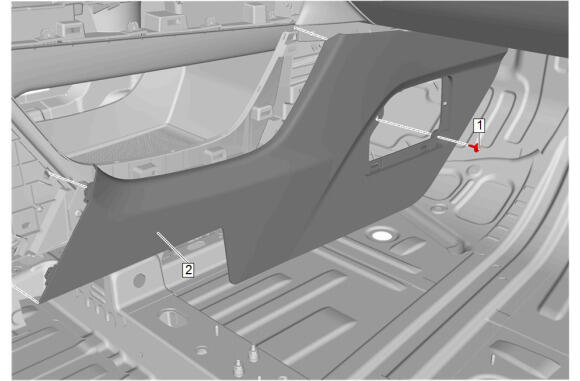

  4. GM6399480Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install

  5. Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications

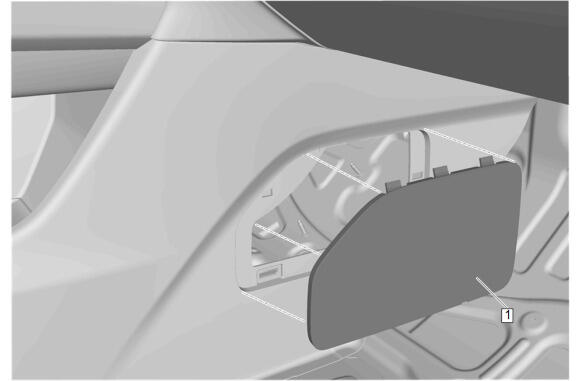

  6. GM6399482Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Cover (1) - Install

  7. Perform the necessary programming and setup procedure: Control Module References
