Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

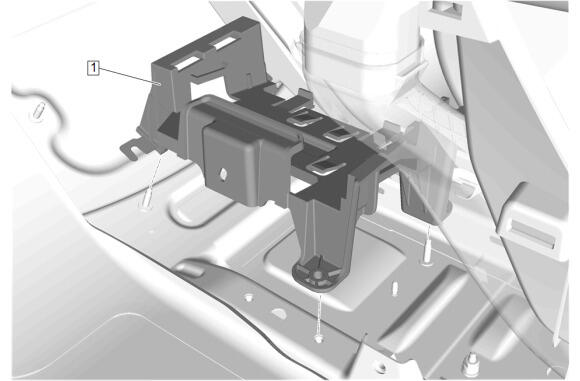

Body Control Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

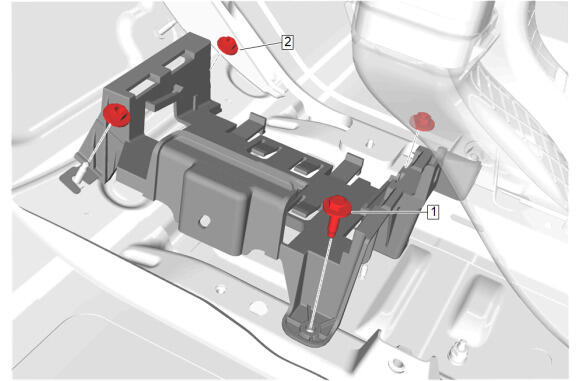

Body Control Module Bracket Nut (2) - Install and tighten [3x] - Fastener Specifications
Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

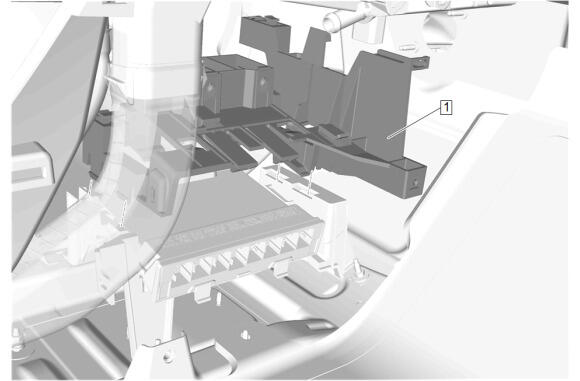

Serial Data Gateway Bracket (1) - Install
Secure the retaining tabs.
Connect the wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

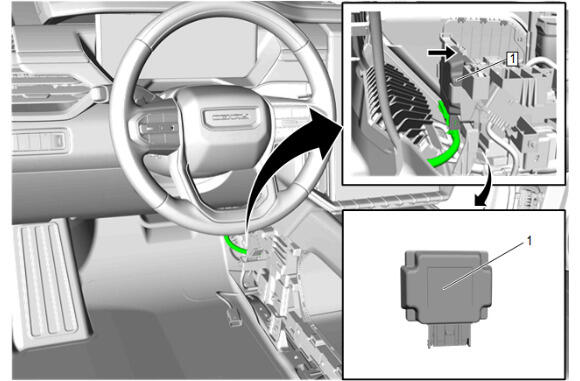

Multifunction Power Supply Converter (1) Install
Ensure that the retaining tabs are fully secured.
Courtesy of GENERAL MOTORS COMPANY

Body Control Module Shield (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (3) - Install

CAUTION:

Front Floor Console Extension Panel Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator and Blower Module Drain Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Serial Data Gateway Module (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Body Control Module (1) - Install
Secure the retaining tabs.
Connect the electrical connectors for the body control module (1) and serial data gateway module.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

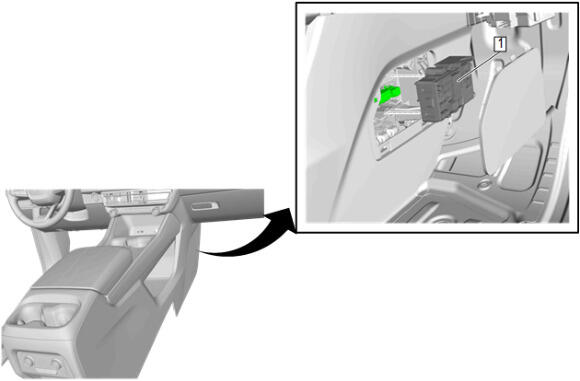

Instrument Panel Wiring Harness Junction Block (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (2) - Install
Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Front Cover (1) - Install
Enable the SIR System. SIR Disabling and Enabling
