Installation Procedure

WARNING: This page is about a different car, the 2022 Chevrolet Bolt EUV. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5679522Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Trim Spoke Cover Applique (1)- Left Side @ Cruise Control Switch (2) - Install

  2. GM5662744Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Steering Wheel Bolt (1) @ Cruise Control Switch - Install and tighten [3x] - Fastener Specifications

  3. GM5662746Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Cruise Control Switch Assembly (1) @ Steering Wheel - Install
  5. GM5662725Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) @ Radio Bracket - Install and tighten - Fastener Specifications

  6. Connect the electrical connector. (1)
  7. GM5480096Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Manual Shift Auxiliary Position Switch (2) - Install

  8. Connect the electrical connector. (1)

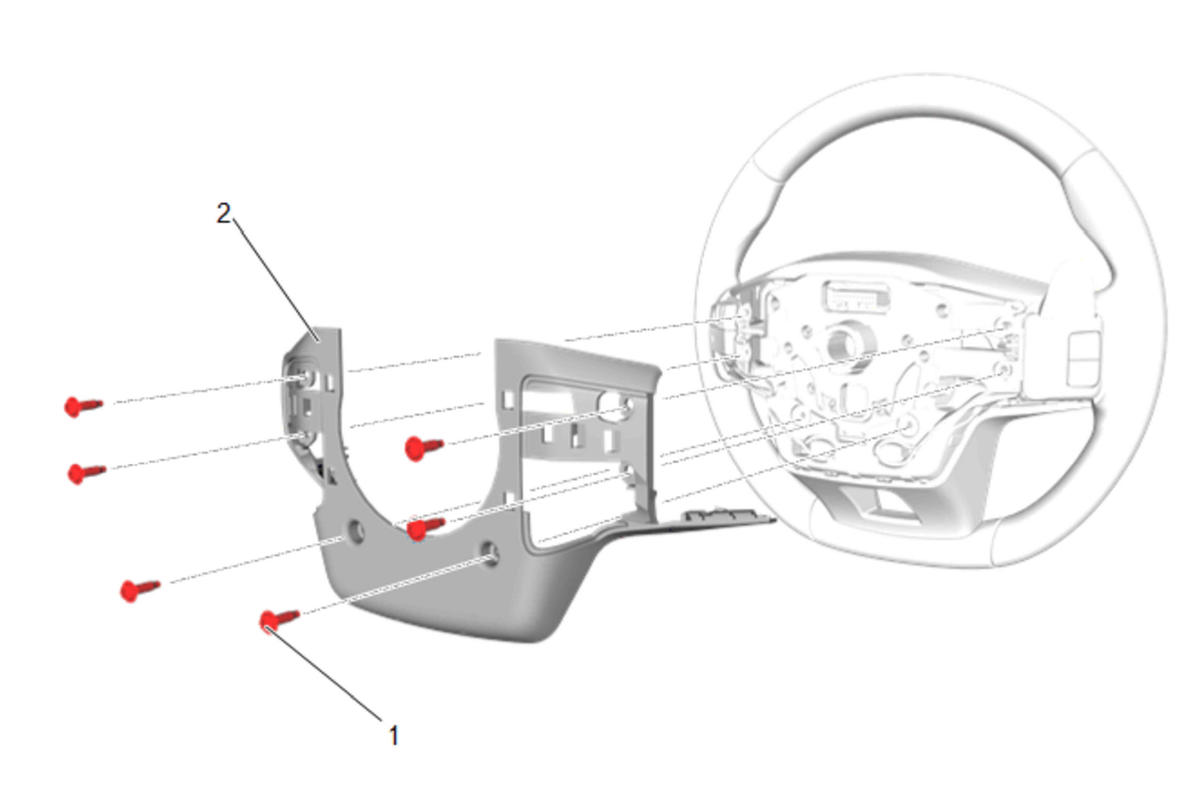

  9. GM5662324Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (2) - Install

  10. Steering Wheel Shroud Bolt (1) - Install and tighten [6x] - Fastener Specifications

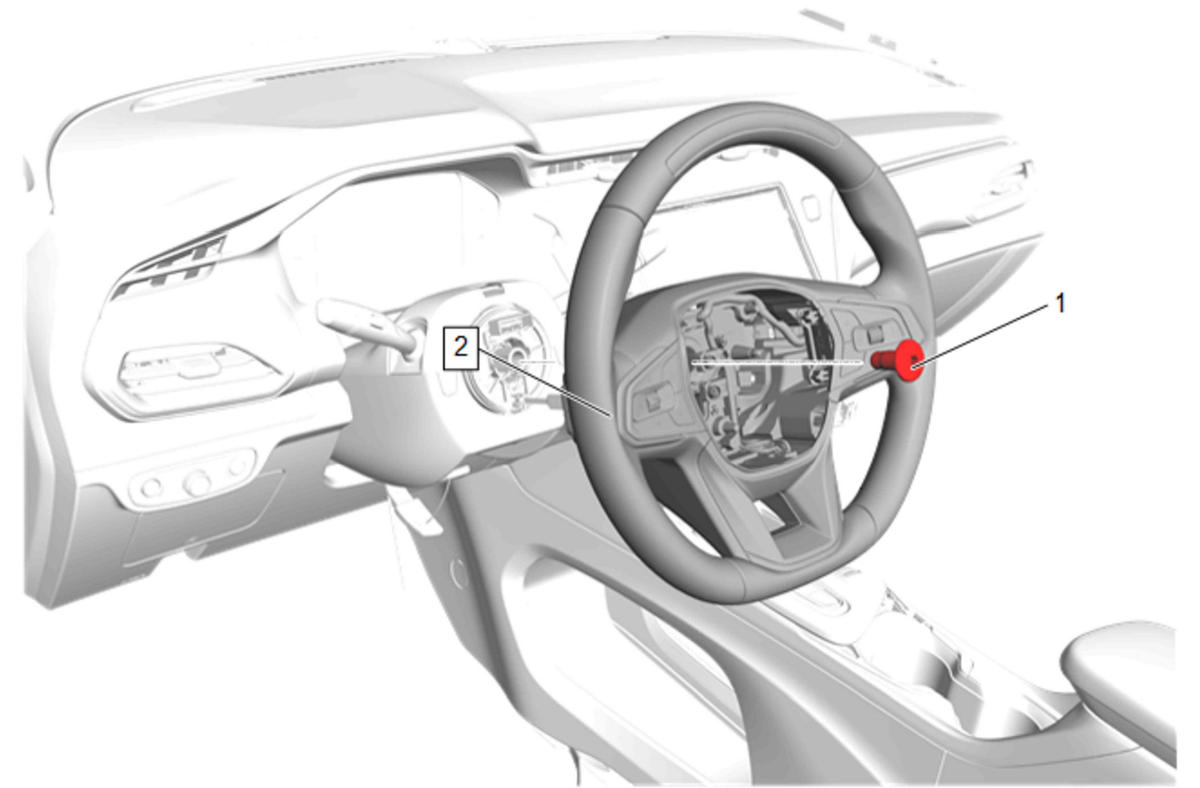

  11. GM5662323Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Install

  12. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (US, Canada) , or Adhesives, Fluids, Lubricants, and Sealers (except US, Canada)
  13. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  14. GM5663078Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  15. Install any connector position assurance (CPA) devices or secondary locks.
  16. Steering Wheel Airbag (2) - Install
  17. Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
  18. GM5436124Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the 2 steering wheel airbag access hole covers (1).

  19. Enable the SIR System. SIR Disabling and Enabling
