Installation Procedure

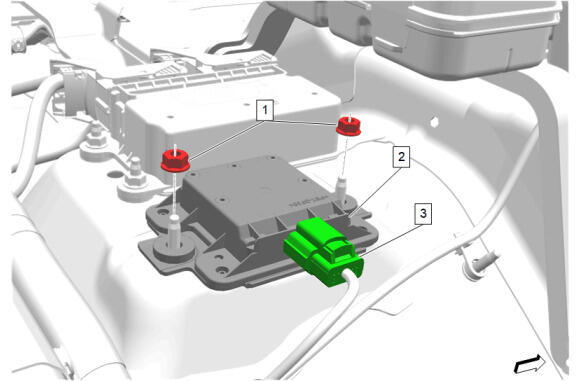

Vehicle Dynamic Sensor (2) - Install
- Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connectors. (3)

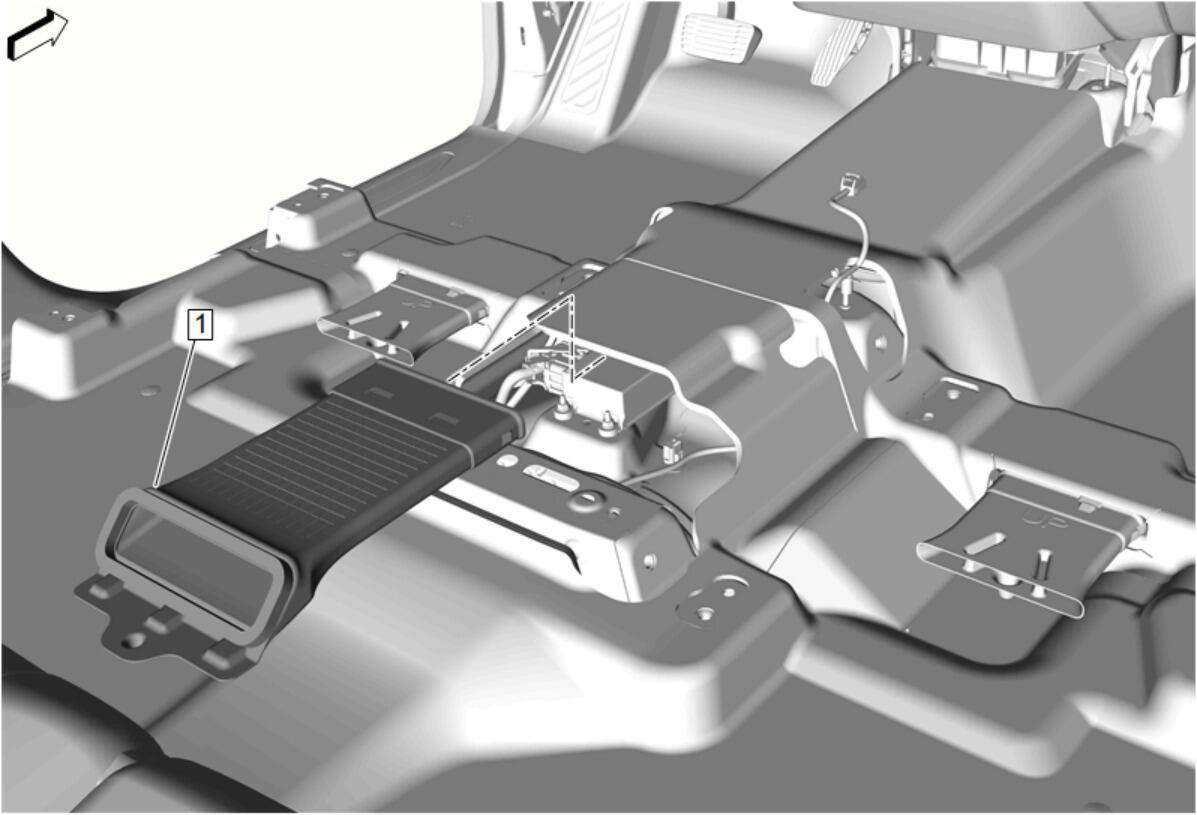

Air Distributor Duct Adapter (1) - Install
- Front Floor Console - Install - Front Floor Console Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling .
- Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
CAUTION:
Refer to Fastener Caution .
