Fastener Specifications

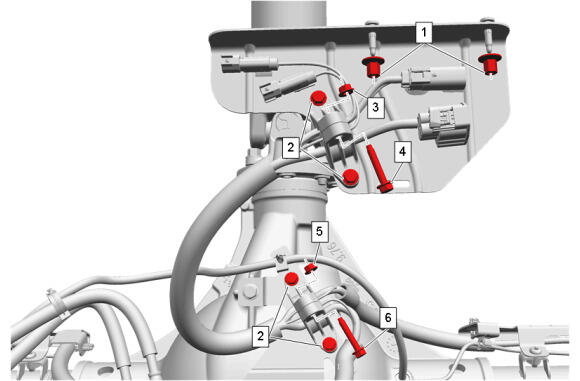

GM5651288Courtesy of GENERAL MOTORS COMPANY
Chassis Rear Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Upper Jounce Block Bracket Nut [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side
2 Jounce Block Bolt [4x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side
3 Upper Jounce Block Nut - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side
4 Upper Jounce Block Bolt - - - Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side
5 Jounce Block Nut - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side
6 Jounce Block Bolt - - - Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side

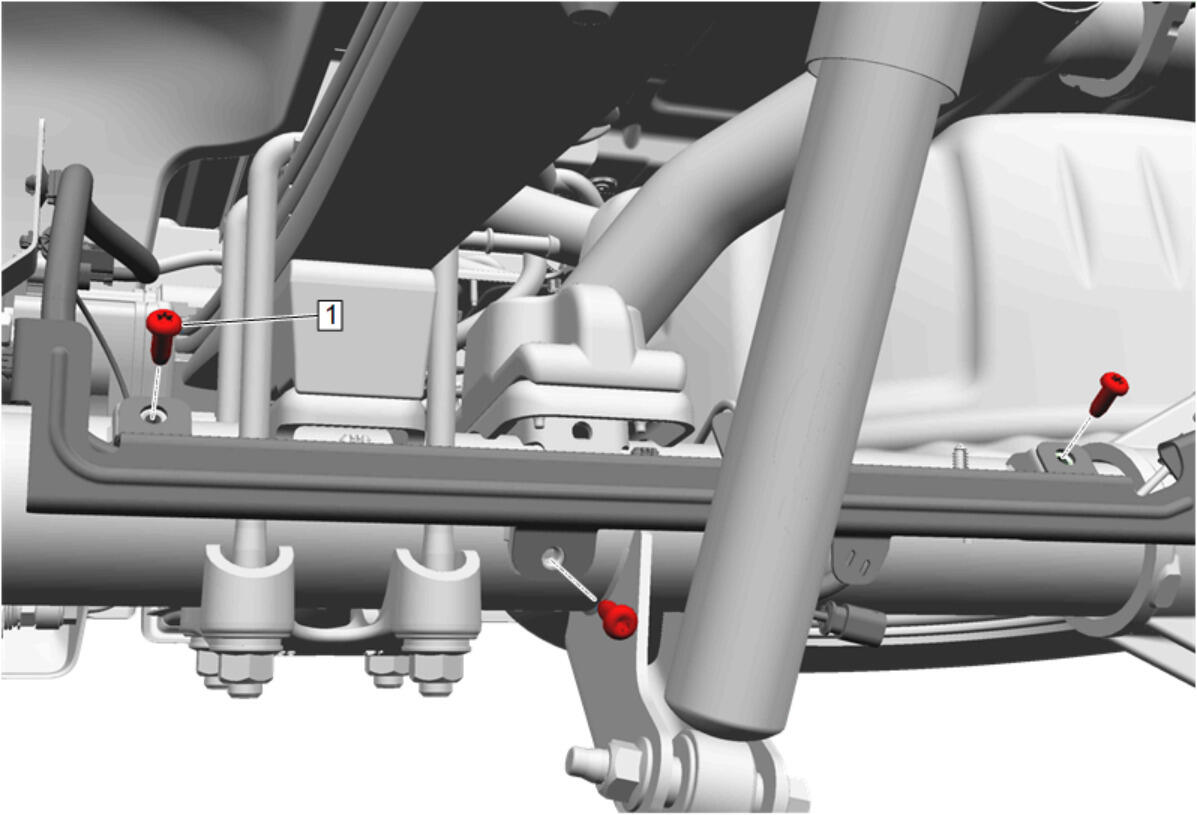

GM5153258Courtesy of GENERAL MOTORS COMPANY
Chassis Rear Wiring Harness Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Chassis Rear Wiring Harness Bracket Bolt [3x] - - 22 N.m (16 lb ft) Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side

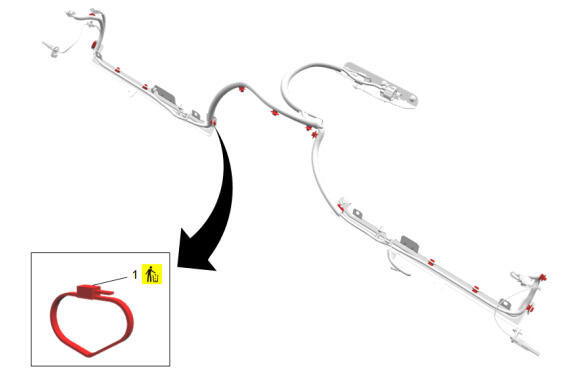

GM5752319Courtesy of GENERAL MOTORS COMPANY
Chassis Rear Wiring Harness Retainers

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Tie Strap [14x] Yes - - Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side
GM5595499Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bracket Bolt - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side
Front Wheel Speed Sensor Replacement - Right Side
2 Front Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side
Front Wheel Speed Sensor Replacement - Right Side

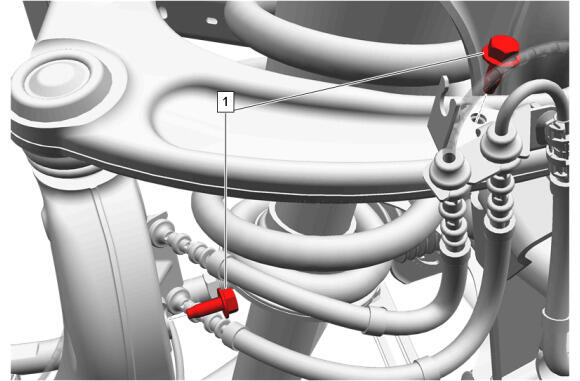

GM5651321Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side
Front Wheel Speed Sensor Replacement - Right Side

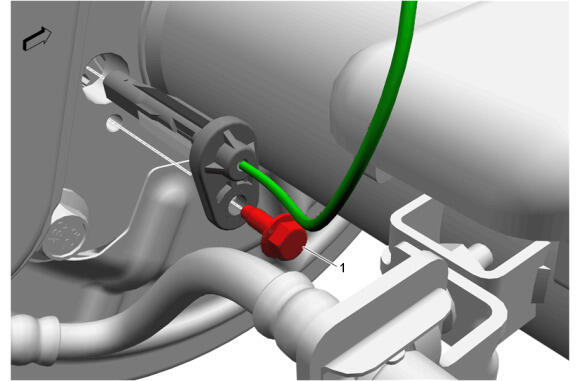

GM5651313Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side (without G94) Rear Wheel Speed Sensor Replacement - Left Side (with G94)
Rear Wheel Speed Sensor Replacement - Right Side

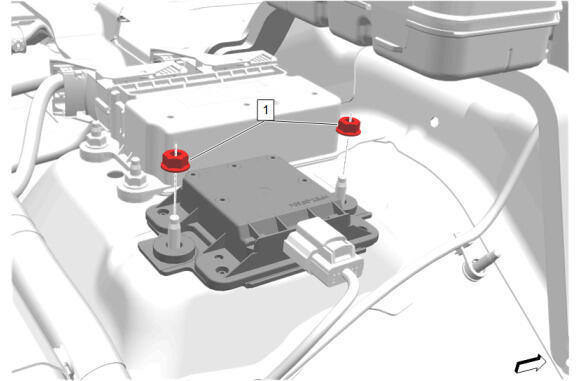

GM5999692Courtesy of GENERAL MOTORS COMPANY
Vehicle Dynamic Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Vehicle Dynamic Sensor Nut [2x] - - 9 N.m (80 lb in) Vehicle Dynamics Sensor Replacement
