Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

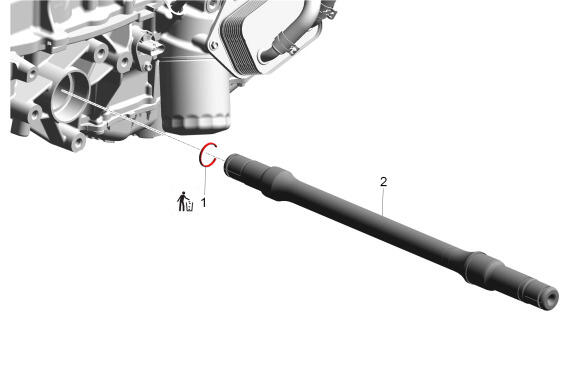

  1. GM5502695Courtesy of GENERAL MOTORS COMPANY

    Apply a small amount of lubricant to the front wheel drive intermediate shaft splines. Adhesives, Fluids, Lubricants, and Sealers

  2. Front Wheel Drive Intermediate Shaft Retaining Ring (1) - Install NEW
    3. NOTE:

    Ensure that the front wheel drive intermediate shaft (2) is securely engaged to the front differential carrier.

  3. Front Wheel Drive Intermediate Shaft (2)Install

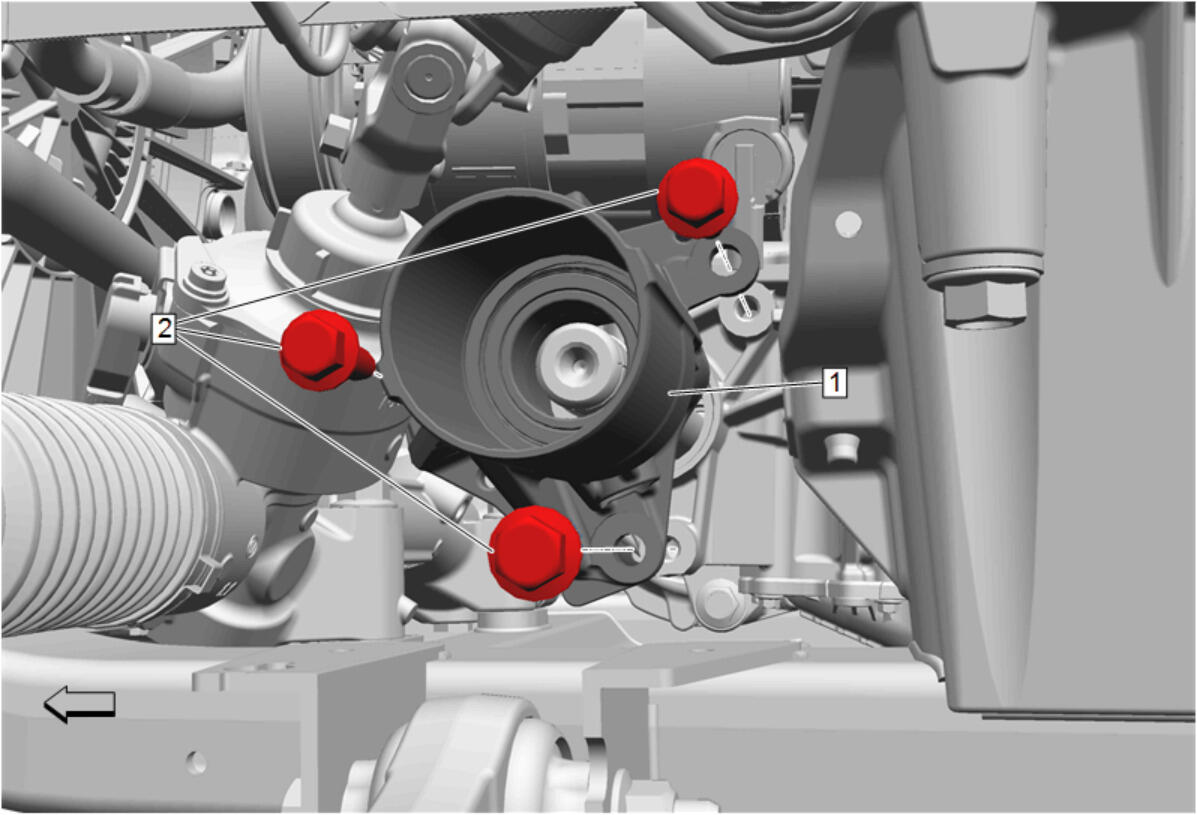

  4. GM5344068Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Drive Intermediate Shaft Bracket (1) - Install

    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Wheel Drive Intermediate Shaft Bracket Bolt (2) - Install and tighten [ 3x ] - Fastener Specifications

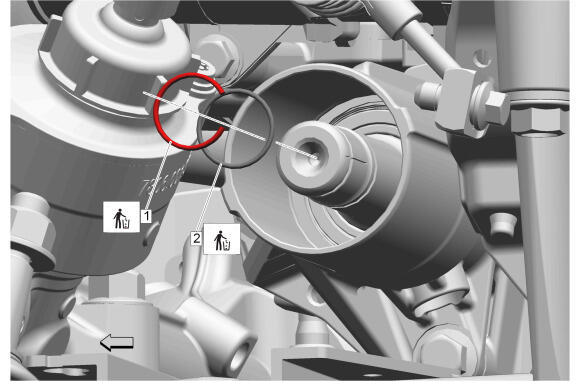

  6. GM5344067Courtesy of GENERAL MOTORS COMPANY

    Apply a small amount of lubricant to the front wheel drive intermediate shaft splines. Adhesives, Fluids, Lubricants, and Sealers

  7. Front Wheel Drive Intermediate Shaft Seal (2) - Install NEW
  8. Front Wheel Drive Intermediate Shaft Retaining Ring (1) - Install NEW

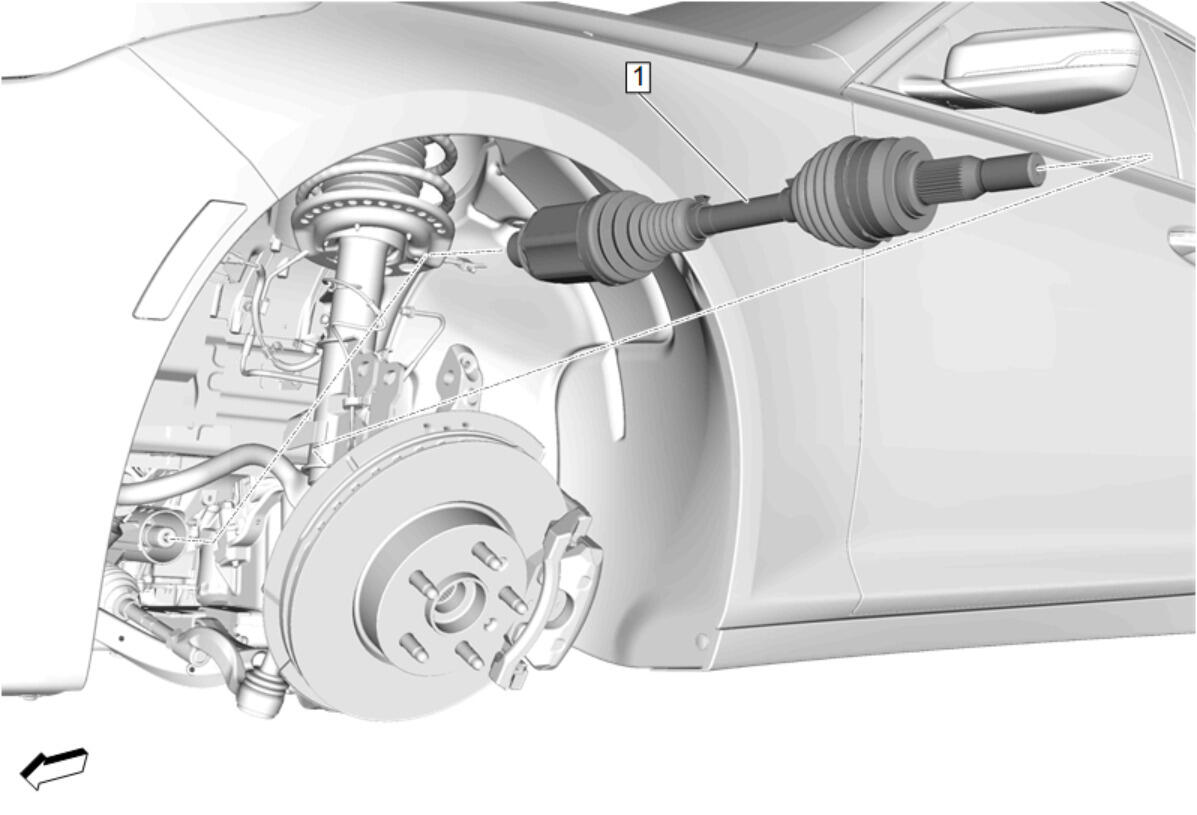

  9. GM5341102Courtesy of GENERAL MOTORS COMPANY

    Apply a small amount of grease to the front wheel drive intermediate shaft splines. Adhesives, Fluids, Lubricants, and Sealers

    10. NOTE:

    Ensure that the front wheel drive half shaft (1) is securely engaged to the front wheel drive intermediate shaft.

  10. Front Wheel Drive Half Shaft (1) - Install

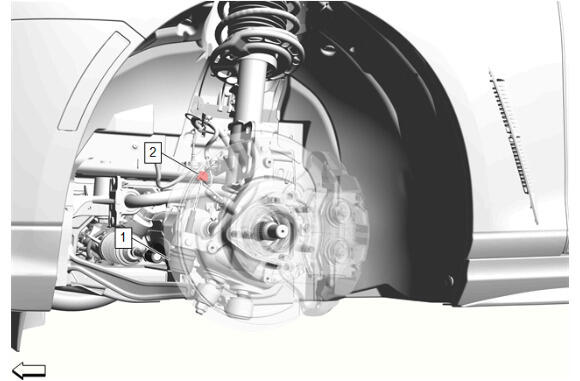

  11. GM5504571Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install

    12. CAUTION:

    Refer to Fastener Caution .

  12. Steering Linkage Outer Tie Rod Nut (2) - Install and tighten - Fastener Specifications

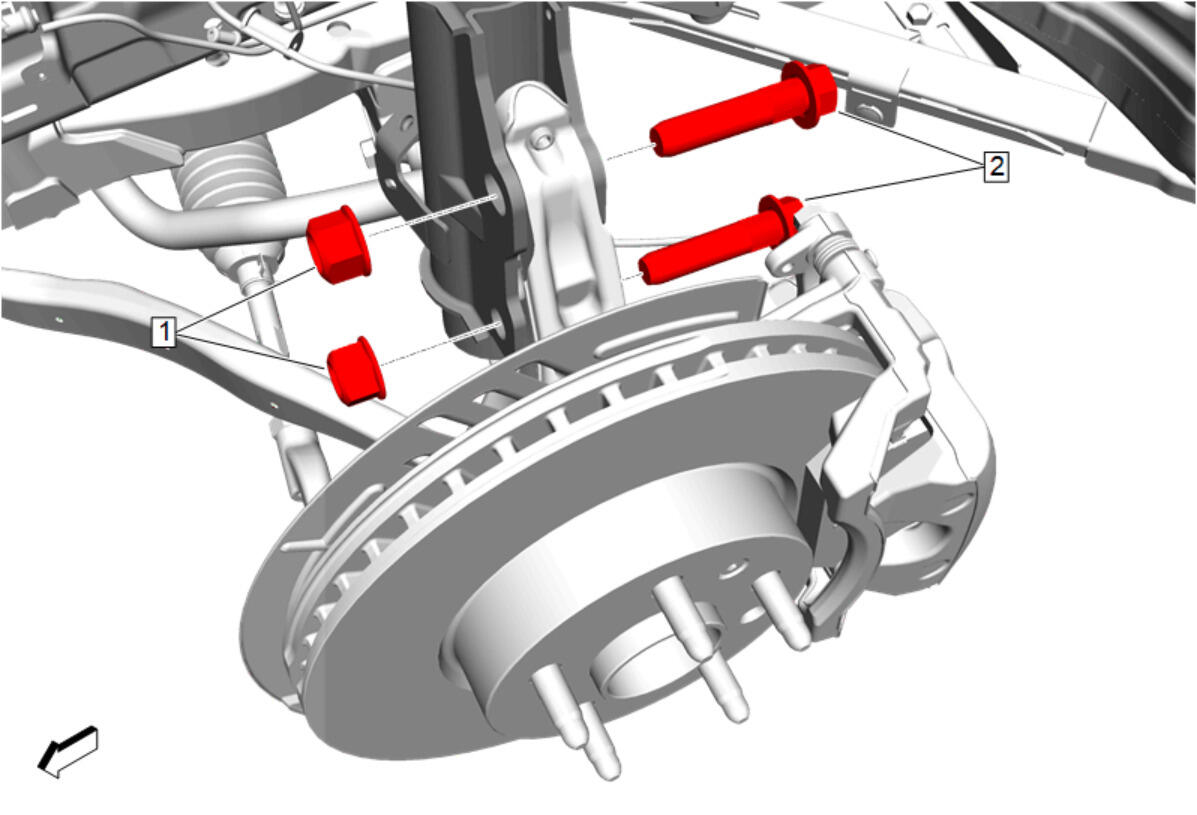

  13. GM5325842Courtesy of GENERAL MOTORS COMPANY

    Steering Knuckle Bolt (2) - Install [ 2x ]

  14. Steering Knuckle Nut (1) - Install and tighten [ 2x ] - Fastener Specifications

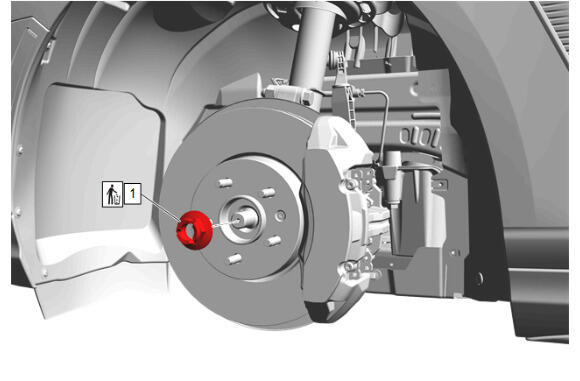

  15. GM5504544Courtesy of GENERAL MOTORS COMPANY

    Have an assistant apply the brakes.

  16. Front Wheel Drive Shaft Nut (1) - Install NEW and tighten - Fastener Specifications

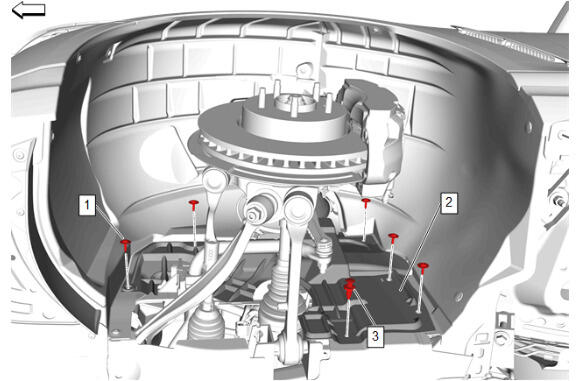

  17. GM5504532Courtesy of GENERAL MOTORS COMPANY

    Engine Front Splash Shield (2) - Install

  18. Engine Front Splash Shield Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications
  19. Engine Front Splash Shield Retainer (3) - Install
  20. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  21. Lower the vehicle.
