Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

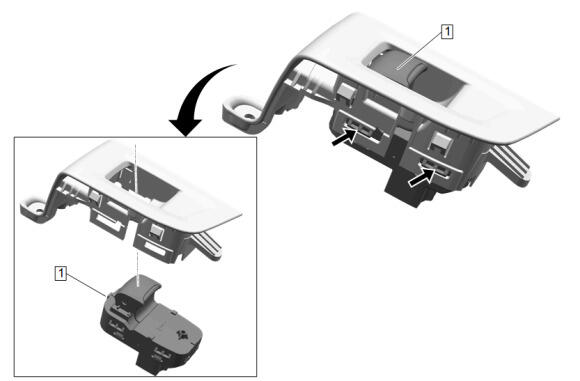

Rear Side Door Window Switch(1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

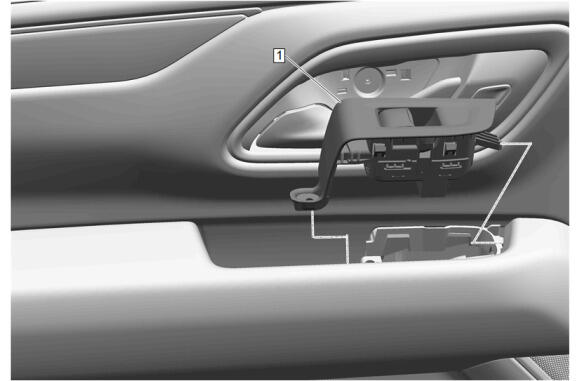

Rotate the rear side door accessory switch mount plate (1) up and forward to hook the front retaining feature.
Rear Side Door Accessory Switch Mount Plate(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

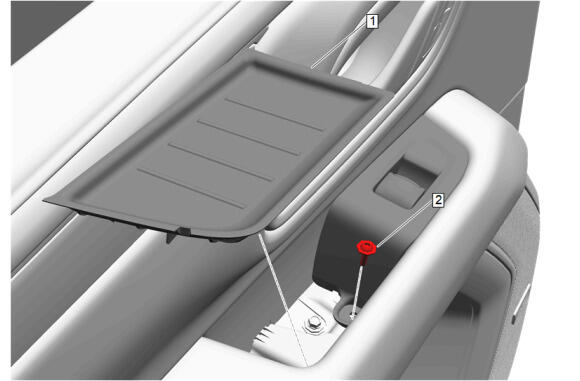

Rear Side Door Trim Panel Bolt(2) - Install and tighten - Fastener Specifications
Rear Side Door Armrest Pull Cup Bolt Cap(1) - Install
