Fastener Specifications
NOTE:
Callouts in the following chart represent components shown in graphic above.
Body Lock Pillar Upper Trim Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Quarter Window Trim Finish Panel Bolt | - | - | 2.5 N.m (22 lb in) | Body Lock Pillar Upper Trim Panel Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Body Rear Corner Upper Garnish Molding, Body Side Rear Window Garnish Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Rear Corner Upper Garnish Molding Bolt | - | - | 2.5 N.m (22 lb in) | Body Rear Corner Upper Garnish Molding Replacement |
| 2 | Body Side Rear Window Garnish Molding Bolt | - | - | 2.5 N.m (22 lb in) | Body Side Rear Window Garnish Molding Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Cargo Tie Down Loop, Convenience Net
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Cargo Tie Down Loop Bolt | - | - | 20 N.m (15 lb ft) | Cargo Tie Down Loop Replacement |
| 2 | Convenience Net Retainer | - | - | 2 N.m (18 lb in) | Convenience Net Retainer Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

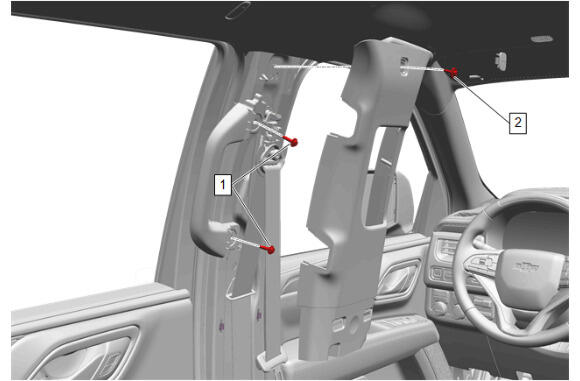

Center Pillar Upper Trim Panel, Center Pillar Assist Handle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Center Pillar Assist Handle Bolt [2x] | - | - | 9 N.m (80 lb in) | Center Pillar Assist Handle Replacement |
| 2 | Center Pillar Upper Garnish Molding Bolt | - | - | 2.5 N.m (22 lb in) | Center Pillar Upper Trim Panel Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Coat Hook
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Coat Hook Bolt | - | - | 6 N.m (53 lb in) | Coat Hook Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Side Door Accessory Switch Plate
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Trim Bolt | - | - | 2.5 N.m (22 lb in) | Front Side Door Accessory Switch Mount Plate Replacement - Driver Side |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Side Door Pull Handle Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Armrest Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Side Door Pull Handle Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Side Door Trim
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Armrest Pull Cup Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Side Door Trim Removal and Installation |
| 2 | Front Side Door Inside Handle Bolt | - | - | 2.5 N.m (22 lb in) | Front Side Door Trim Removal and Installation |
| 3 | Front Side Door Trim Panel Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Side Door Trim Removal and Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.

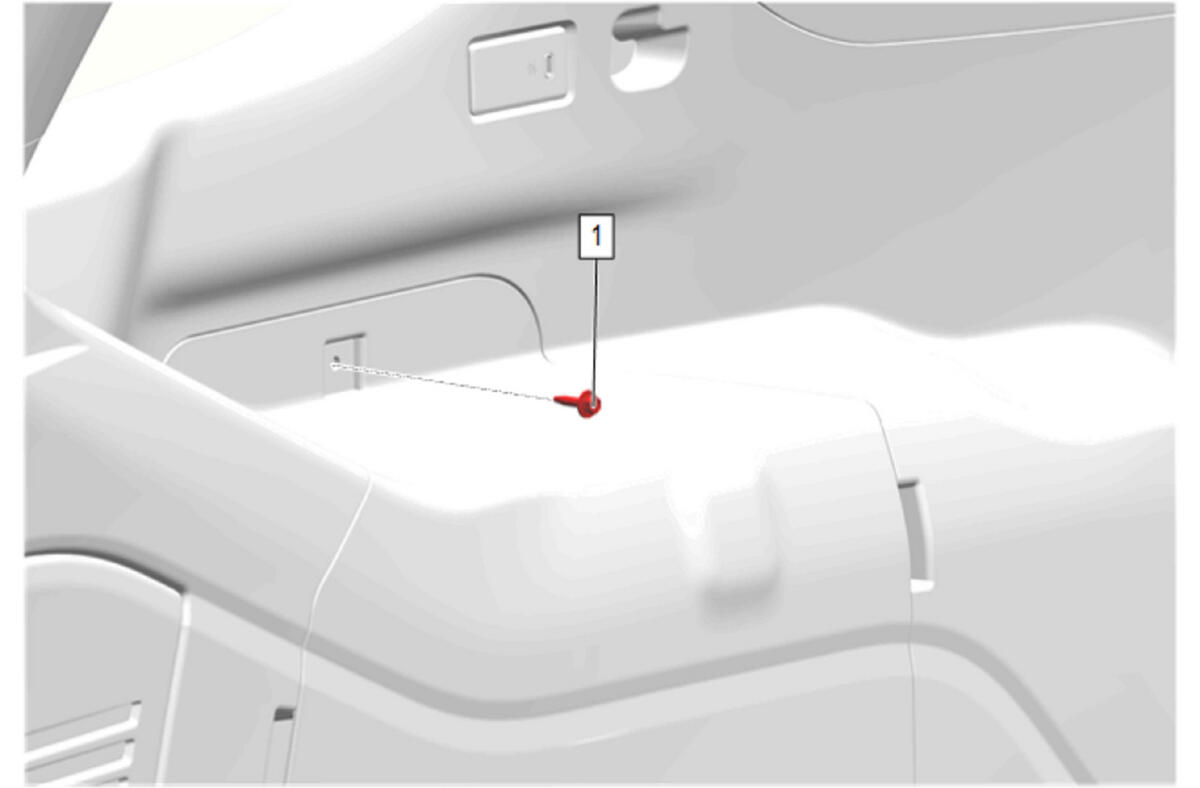

Liftgate Lower Trim Finish Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Liftgate Lower Trim Finish Panel Bolt | - | - | 2.5 N.m (22 lb in) | Liftgate Lower Trim Finish Panel Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Quarter Trim Panel Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Quarter Upper Trim Panel Bolt | - | - | 2.5 N.m (22 lb in) | Quarter Trim Panel Cover Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Compartment Floor Stowage Trim Compartment
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Compartment Floor Stowage Compartment Divider Retainer [2x] - SWB | - | - | 2.5 N.m (22 lb in) | Rear Compartment Floor Stowage Trim Compartment Replacement |
| Rear Compartment Floor Stowage Compartment Divider Retainer [4x] - LWB |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Side Door Accessory Switch Mount Plate, Rear Side Door Trim
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Trim Panel Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Accessory Switch Mount Plate Replacement |
| 2 | Rear Side Door Armrest Pull Cup Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation |
| 3 | Rear Side Door Inside Handle Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation |
| 4 | Rear Side Door Trim Panel Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Side Door Pull Handle Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Armrest Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Auxiliary Rear Side Door Water Deflector Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Roof Rail Assist Handle, Sunshade, Sunshade Support
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Assist Handle Bolt [2x] | - | - | 9 N.m (80 lb in) | Roof Rail Assist Handle Replacement |
| 2 | Sunshade Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Sunshade Replacement - Left Side |
| Sunshade Replacement - Right Side | |||||
| 3 | Sunshade Support Bolt | - | - | 2 N.m (18 lb in) | Sunshade Support Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Windshield Garnish Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Garnish Molding Bolt | - | - | 2.5 N.m (22 lb in) | Windshield Garnish Molding Replacement - Left Side |
| Windshield Garnish Molding Replacement - Right Side |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Windshield Pillar Assist Handle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Pillar Assist Handle Bolt [2x] | - | - | 9 N.m (80 lb in) | Windshield Garnish Molding Replacement - Right Side |
