Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

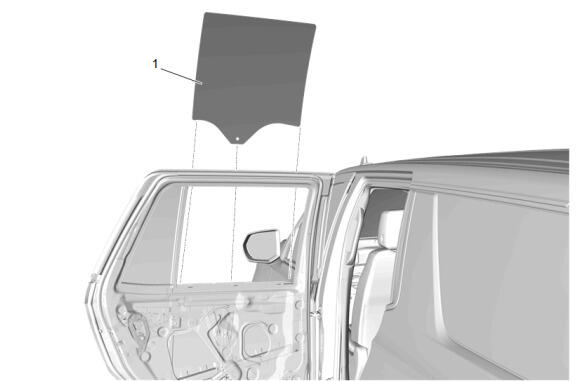

Place the rear side door window (1) into the door frame.
Courtesy of GENERAL MOTORS COMPANY

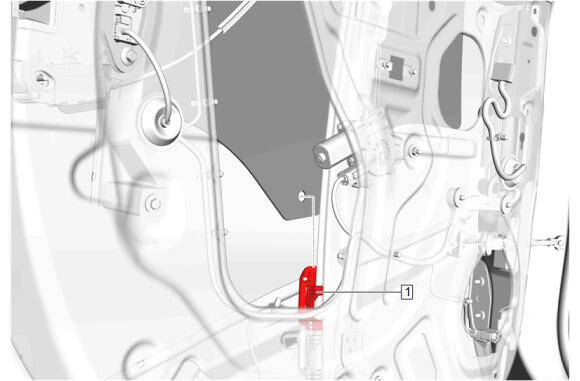

Guide the rear side door window into the window regulator sash (1).
Secure rear side door window into the window regulator sash (1).
Courtesy of GENERAL MOTORS COMPANY

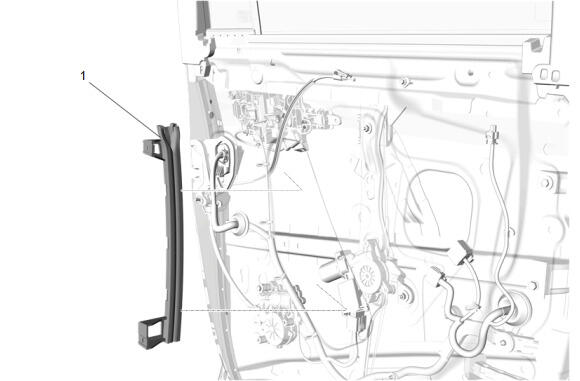

Rear Side Door Window Channel Rear Retainer(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

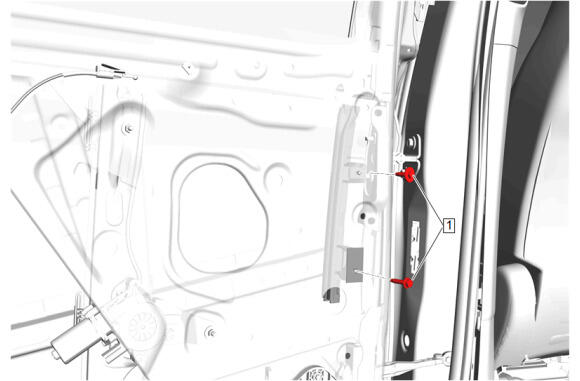

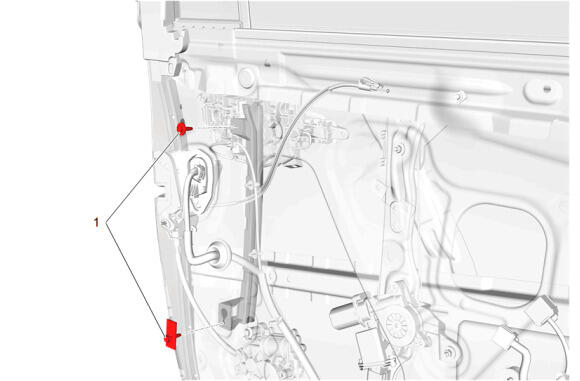

Rear Side Door Window Channel Rear Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

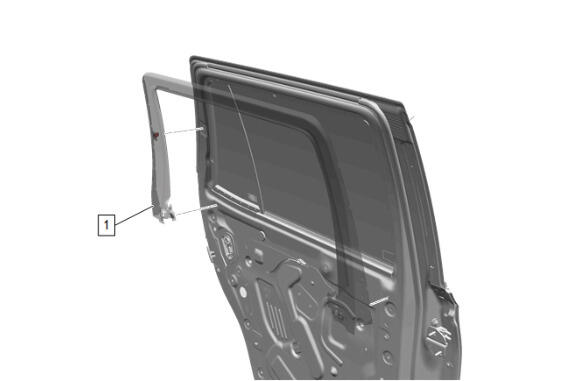

Rear Side Door Window Channel Front Retainer - Install
Rear Side Door Window Channel Front Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

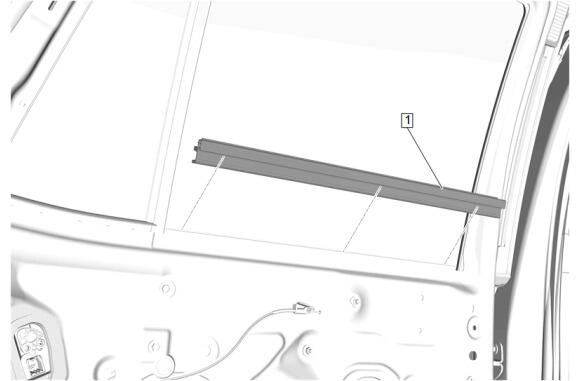

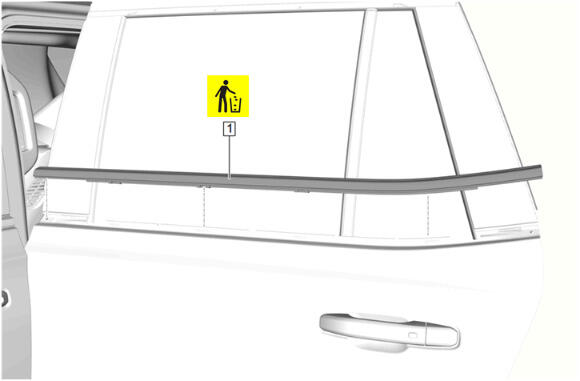

Rear Side Door Window Belt Reveal Molding(1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Belt Reveal Molding Bolt(1) - Install and tighten [2x] - Fastener Specifications
Reposition the rear side door weatherstrip.
Courtesy of GENERAL MOTORS COMPANY

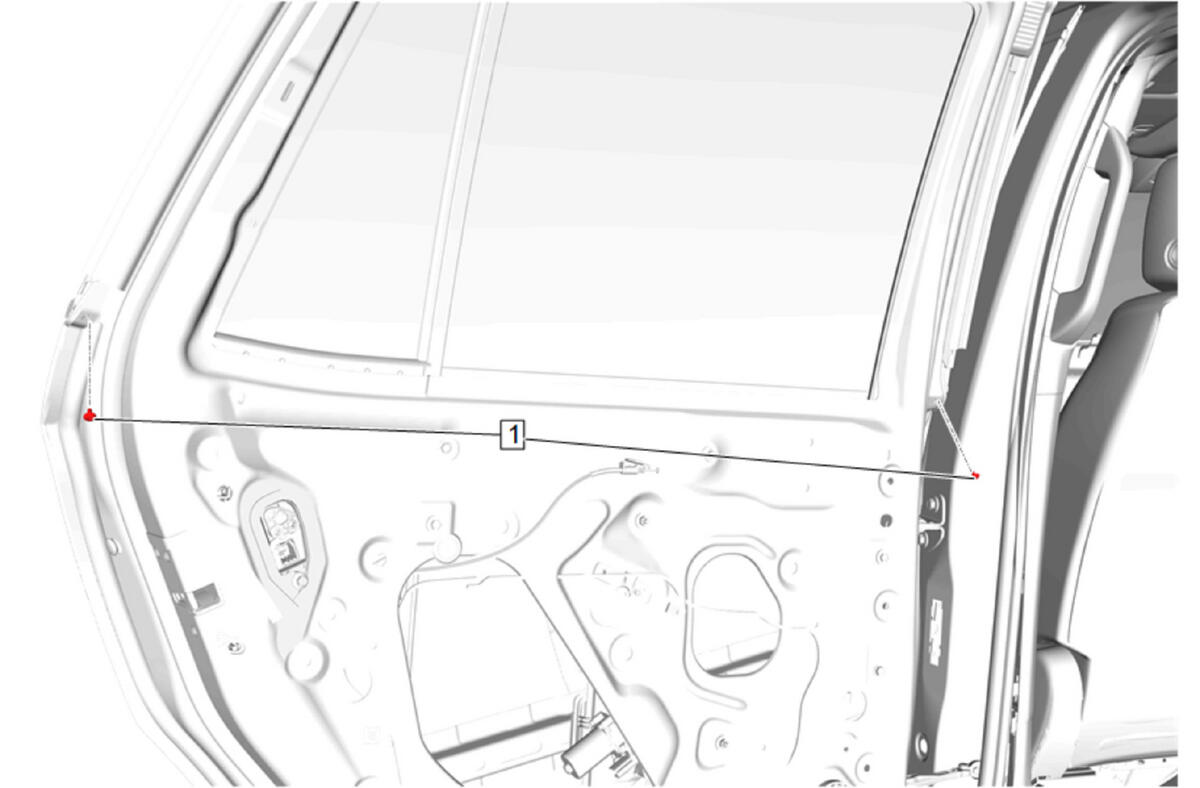

Press firmly to install the rear side door window inner sealing strip (1) onto the door flange.
Rear Side Door Window Inner Sealing Strip(1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route the rear side door inside handle cable through hole in deflector (1).

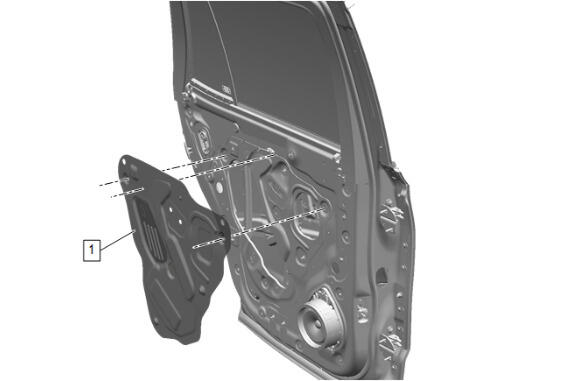

Rear Side Door Water Deflector(1) - Install
Courtesy of GENERAL MOTORS COMPANY

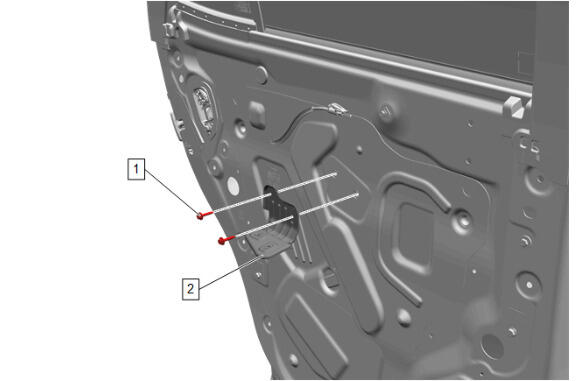

Rear Side Door Pull Handle Bracket(2) - Install
Rear Side Door Trim Bolt(1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the door weatherstrip is not trapped below the window garnish molding (1) once completely installed. Reposition the weatherstrip as necessary.
Rear Side Door Window Garnish Molding(1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

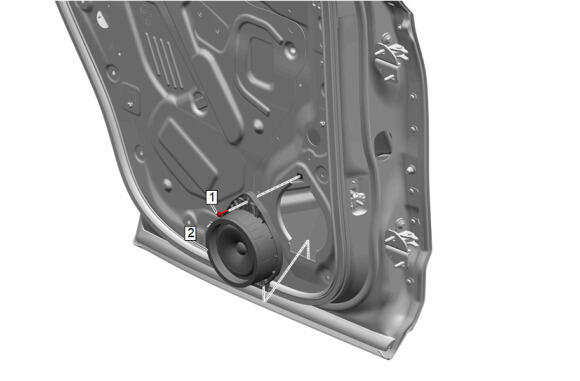

Radio Rear Side Door Speaker(2) - Install
Radio Rear Side Door Speaker Bolt(1) - Install and tighten - Fastener Specifications
Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
