Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

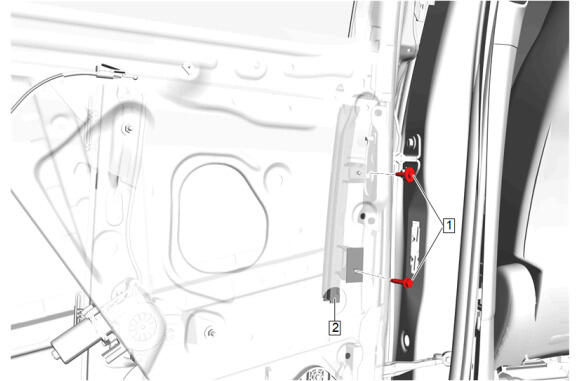

Rear Side Door Window Channel Front Retainer(2) - Install

CAUTION:

Rear Side Door Window Channel Front Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route the rear side door inside handle cable through hole in deflector (1).

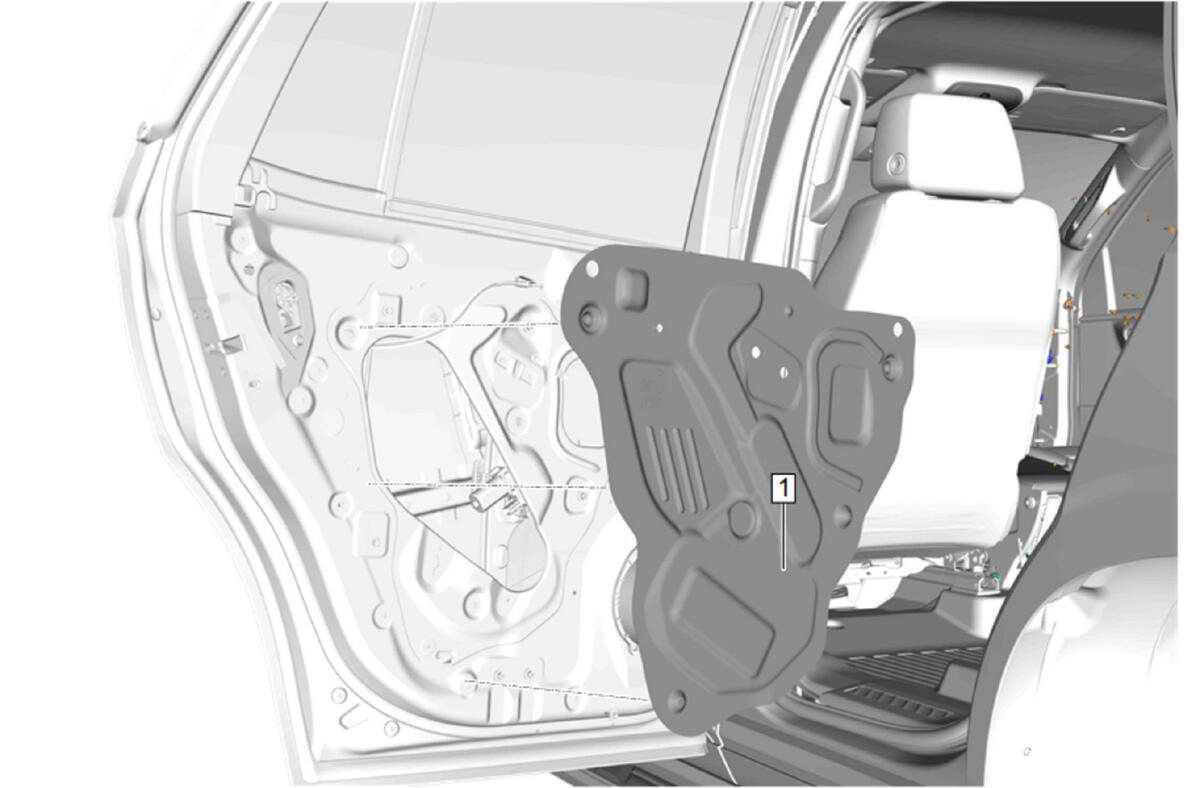

Rear Side Door Water Deflector(1) - Install
Courtesy of GENERAL MOTORS COMPANY

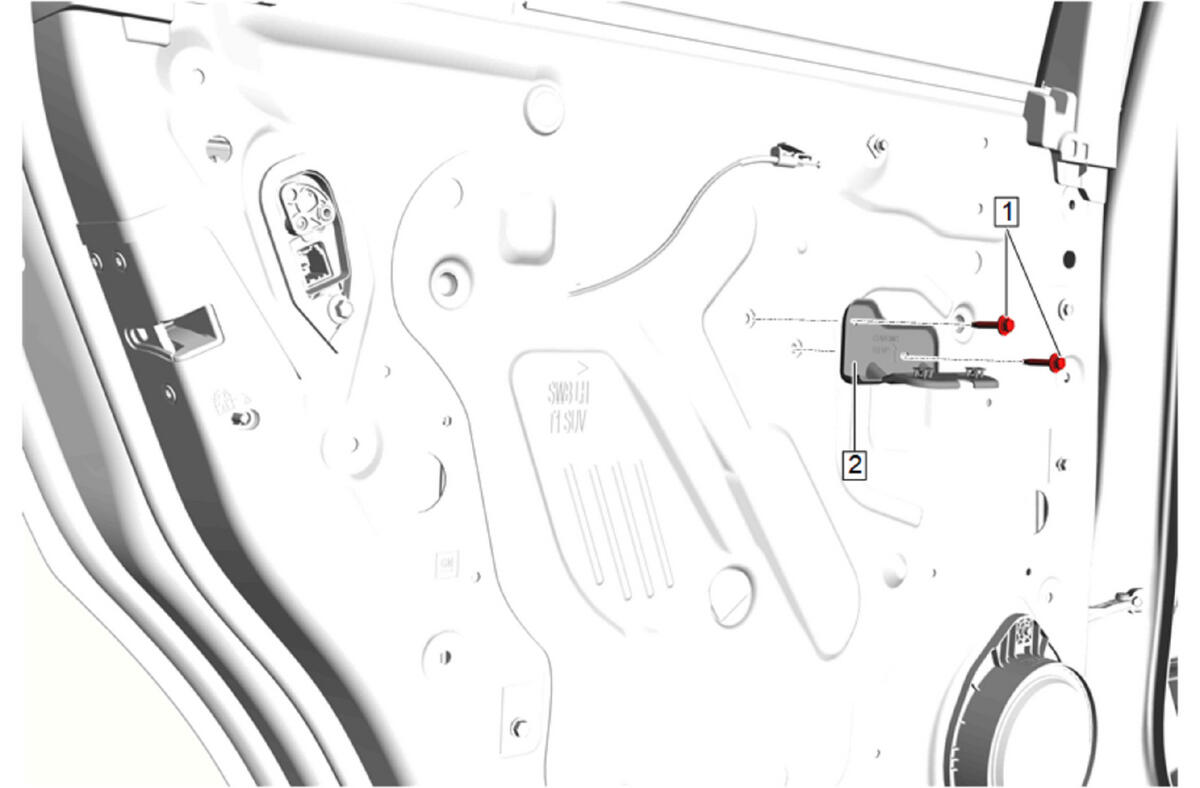

Rear Side Door Pull Handle Bracket(2) - Install
Rear Side Door Pull Handle Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
Ensure the window system operates properly.
