Installation Procedure

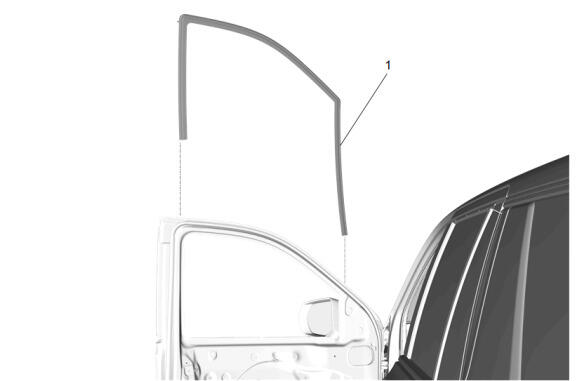

Position the front side door window weatherstrip (1) into the front side door window frame.
- Front Side Door Window Weatherstrip(1) - Install

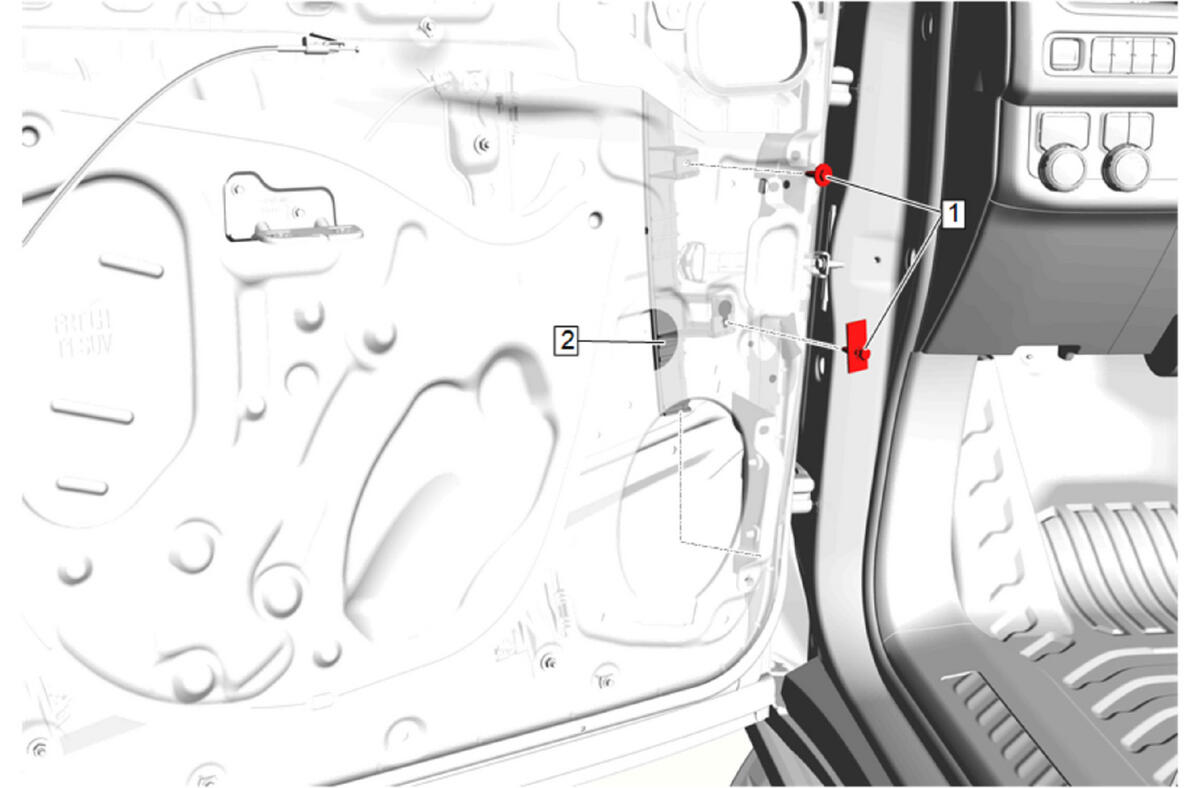

Front Side Door Window Channel Front Retainer(2) - Install
- Front Side Door Window Channel Front Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.

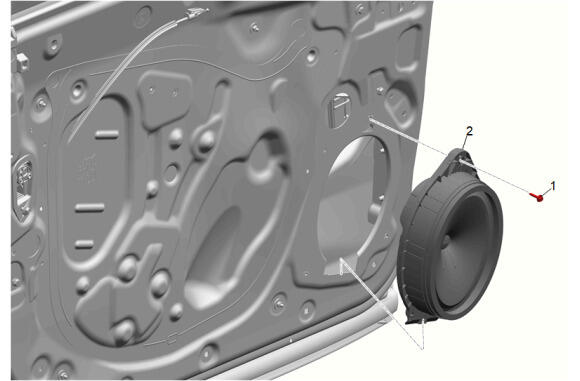

- Radio Front Side Door Speaker(2) - Install
- Radio Front Side Door Speaker Bolt(1) - Install and tighten - Fastener Specifications
Front Side Door Window Belt Reveal Molding(2) - Install
- Starting from the front and working to the back, press firmly to install the front side door window belt reveal molding (2) onto the door flange.
- Front Side Door Window Belt Reveal Molding Bolt(1) - Install and tighten - Fastener Specifications
Front Side Door Inner Window Sealing Strip(1) - Install
- Press firmly to install the front side door window inner sealing strip (1) back onto the door flange.
Ensure that the door weatherstrip is not trapped below the window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.
- Front Side Door Window Garnish Molding(2) - Install
- Front Side Door Window Garnish Molding Retainer(1) - Install
- Check window for proper operation.
Route front side door inside handle cable through hole in deflector (1).
- Front Side Door Water Deflector(1) - Install
Front Side Door Pull Handle Bracket(2) - Install
- Front Side Door Armrest Bracket Bolt(1) - Install and tighten [2x] - Fastener Specifications
- Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling
Refer to Fastener Caution .
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
