Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Rear Window Washer Pump Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Window Washer Pump Hose (1)@Rear Window Washer Nozzle Hose (2) - Install
Courtesy of GENERAL MOTORS COMPANY

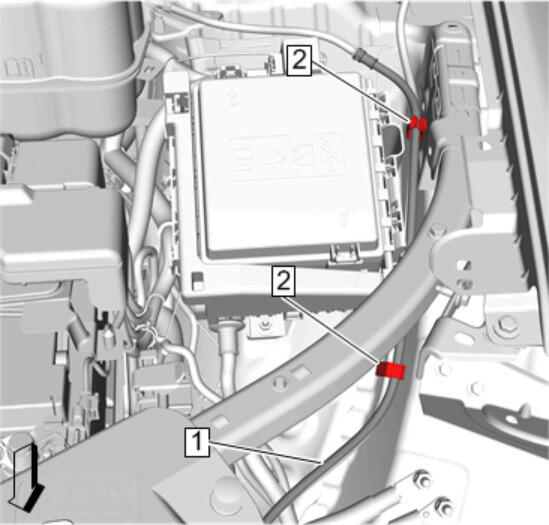

Rear Window Washer Pump Hose (1)@Window Washer Hose Retainer Clip (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Window Washer Pump Hose (1)@Rear Window Washer Pump (2) - Install
Rear Window Washer Pump Hose (1)@Windshield Washer Solvent Container (3) - Install
Remove the drain pan.
