Front Headlamp Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

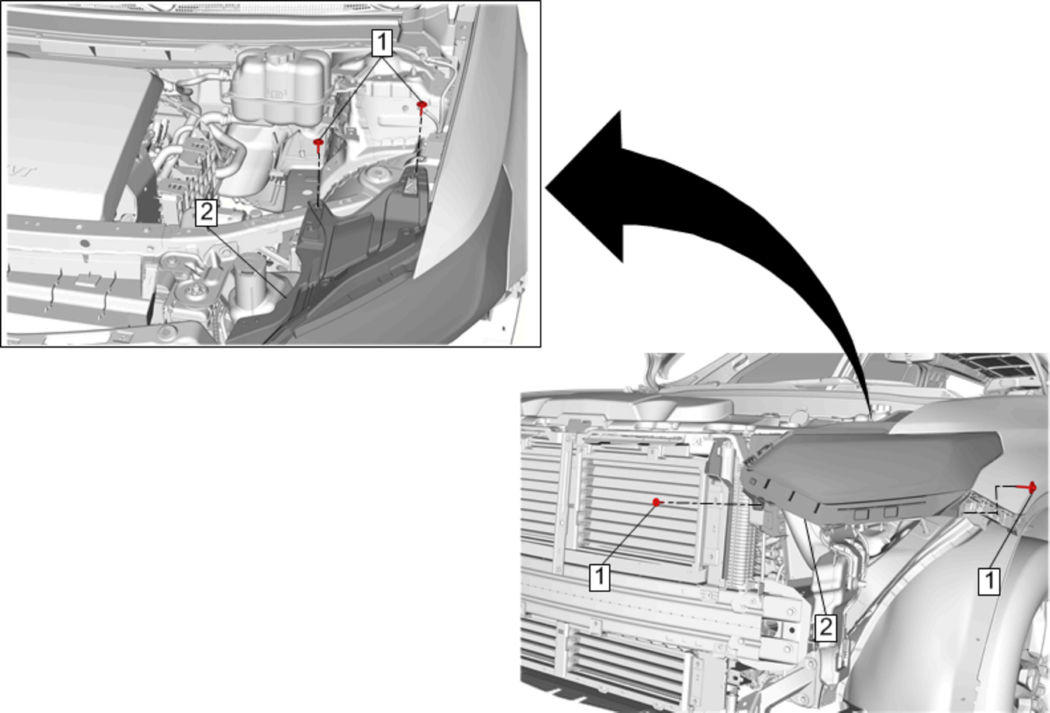

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (LTG)Front Bumper Fascia Replacement (LFY)
1	Headlamp Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect all electrical connectors. Transfer components as necessary. After installation, aim the front headlamps. Front Headlamp Aiming

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement (LTG)Front Bumper Fascia Replacement (LFY)

Headlamp Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure

Disconnect all electrical connectors.
Transfer components as necessary.
After installation, aim the front headlamps. Front Headlamp Aiming
