Rear Window Wiper Blade Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Wiper Cover Replacement

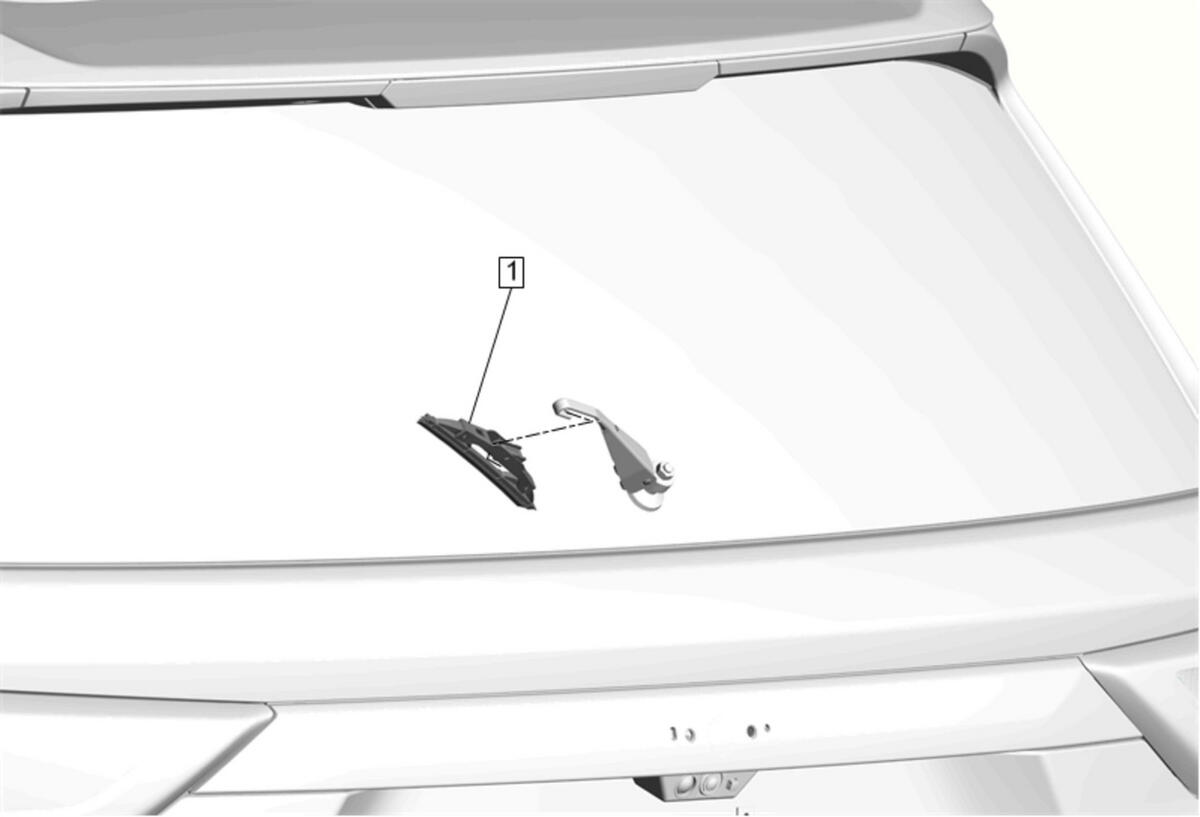

1	Rear Window Wiper Blade Procedure Lift the rear wiper blade off the liftgate window. Release the tab under the hook and pull the wiper blade rearward from the hook. NOTE: Do not let the wiper arm with a removed wiper blade, come in contact with the windshield.

Callout

Component Name

Preliminary Procedure
Rear Window Wiper Cover Replacement

Rear Window Wiper Blade

Procedure

Lift the rear wiper blade off the liftgate window.
Release the tab under the hook and pull the wiper blade rearward from the hook.

NOTE:

Do not let the wiper arm with a removed wiper blade, come in contact with the windshield.
