Rear Window Wiper Cover Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

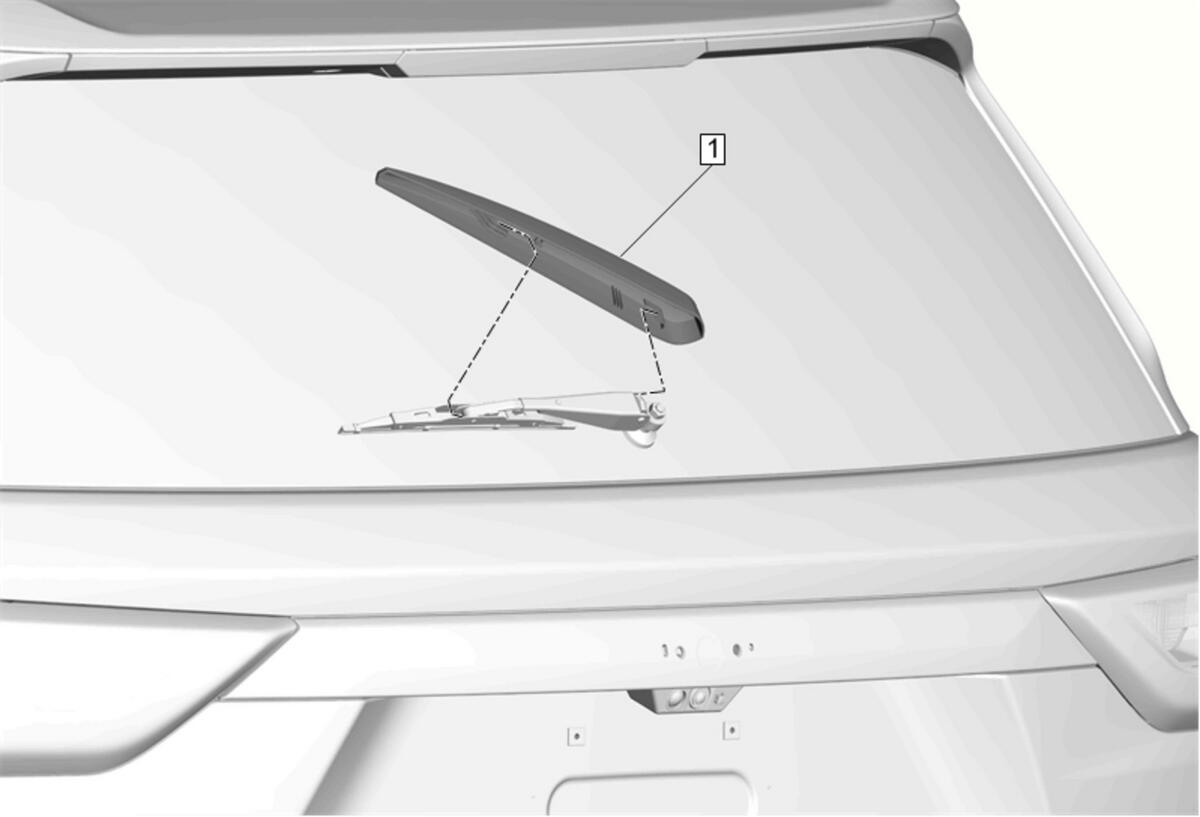

| Callout |
Component Name |
| 1 |
Rear Window Wiper Cover Procedure
- Lift the cover at the pivot end then slide the cover to the left to disengage the hook from the wiper blade.
- Line up the wiper arm cover with the hook on the underside of the cover at the opening in the wiper blade.
- Insert the hook and slide the cover to the right to lock in place.
- Push the cover down at the pivot end to secure the cover in place.
|
