Front Side Door Window Regulator Replacement

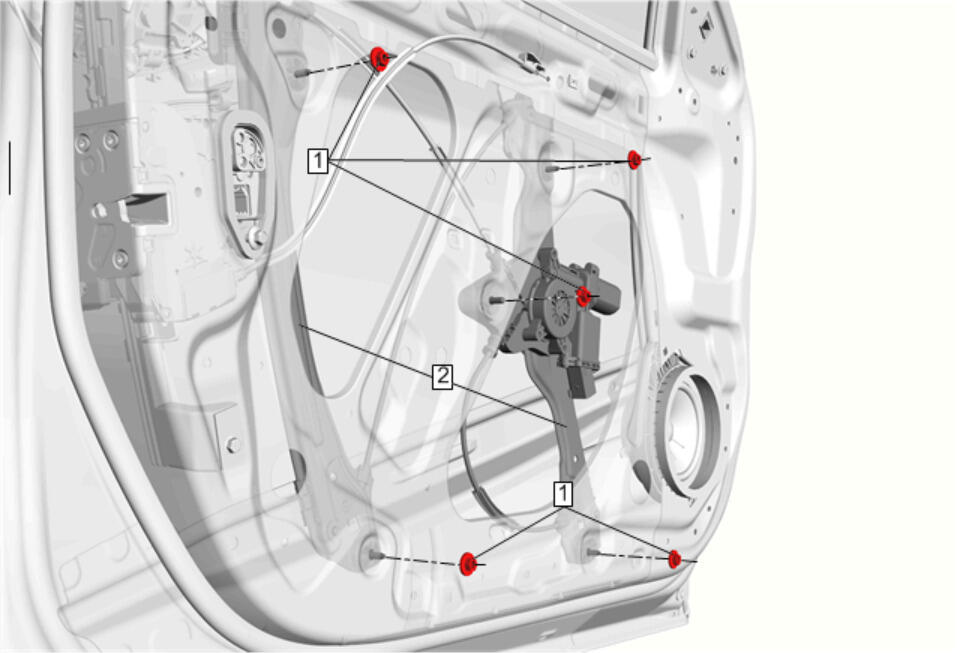

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Release the window from the regulator and tape the window to the upper door frame before removing the regulator. Refer to Front Side Door Window Replacement
1	Front Side Door Window Regulator Nut (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Procedure Disconnect the electrical connector. Remove the window regulator through the opening in the inner door panel. Transfer all parts as necessary. Inspect the window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedure Release the window from the regulator and tape the window to the upper door frame before removing the regulator. Refer to Front Side Door Window Replacement

Front Side Door Window Regulator Nut (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Front Side Door Window Regulator

Procedure

Disconnect the electrical connector.
Remove the window regulator through the opening in the inner door panel.
Transfer all parts as necessary.
Inspect the window for proper operation before installing the door trim panel.
