Front Side Door Window Weatherstrip Replacement

Preliminary Procedures

1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
2. Remove the front side door window. Refer to Front Side Door Window Replacement .
3. Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .

Procedure

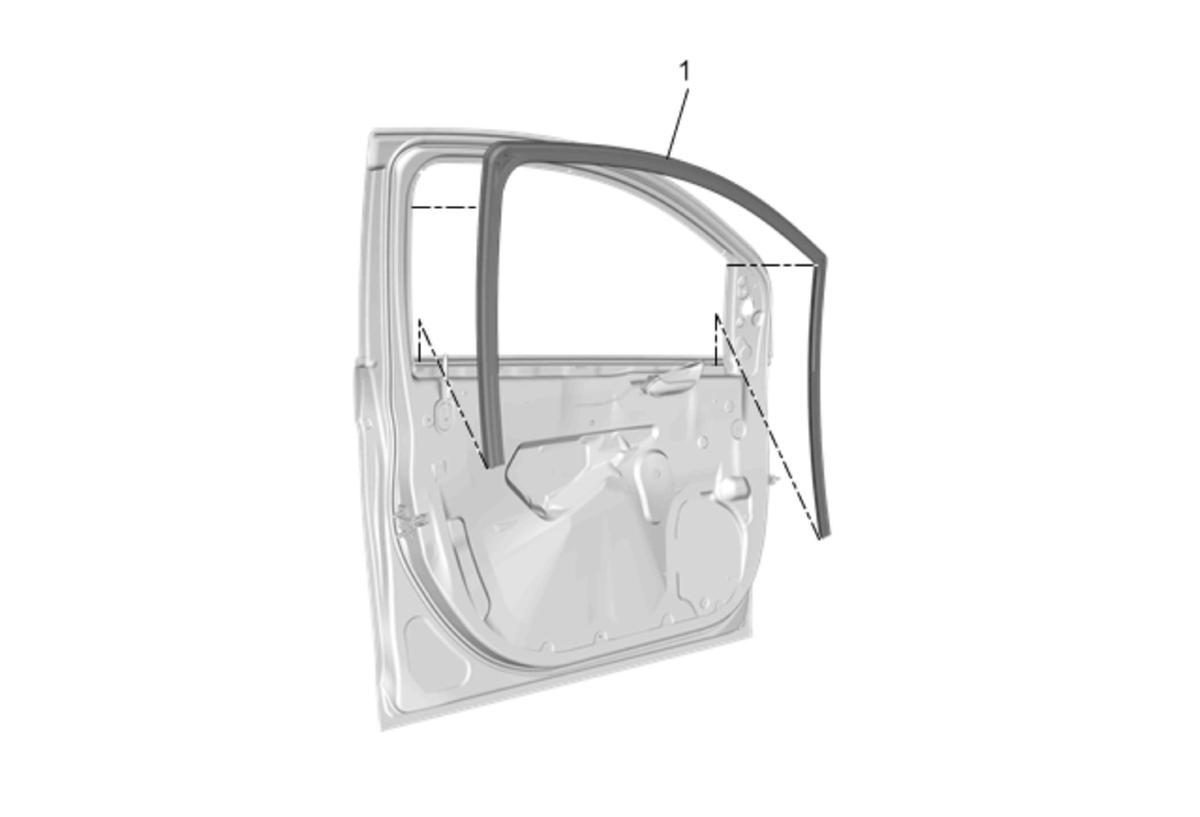

1. Grasp both upper corners of the window weatherstrip, pull downward releasing the assembly from the door frame
2. Insert the weatherstrip downward in the front and rear channel until fully seated.
3. Position the window weatherstrip in the upper rear corner of the frame, work the weatherstrip around the door frame.
4. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the channels.
5. Inspect the door window for proper operation before installing the door trim panel.
