Heater Core Replacement

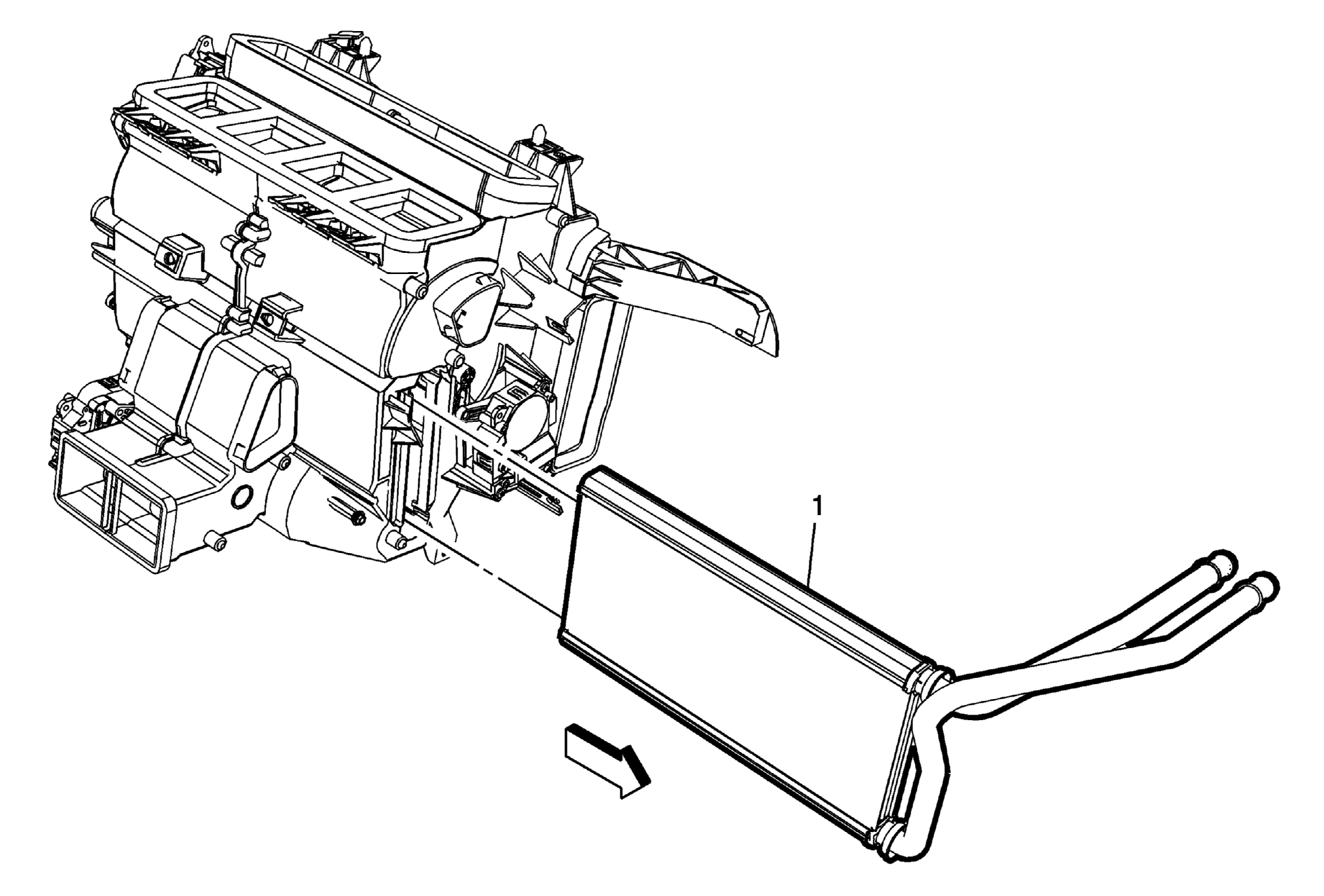

Fig 1: Heater Core
GM3409388Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the blower assembly. Refer to Blower Assembly Replacement .
1 Heater Core
