Blower Assembly Replacement

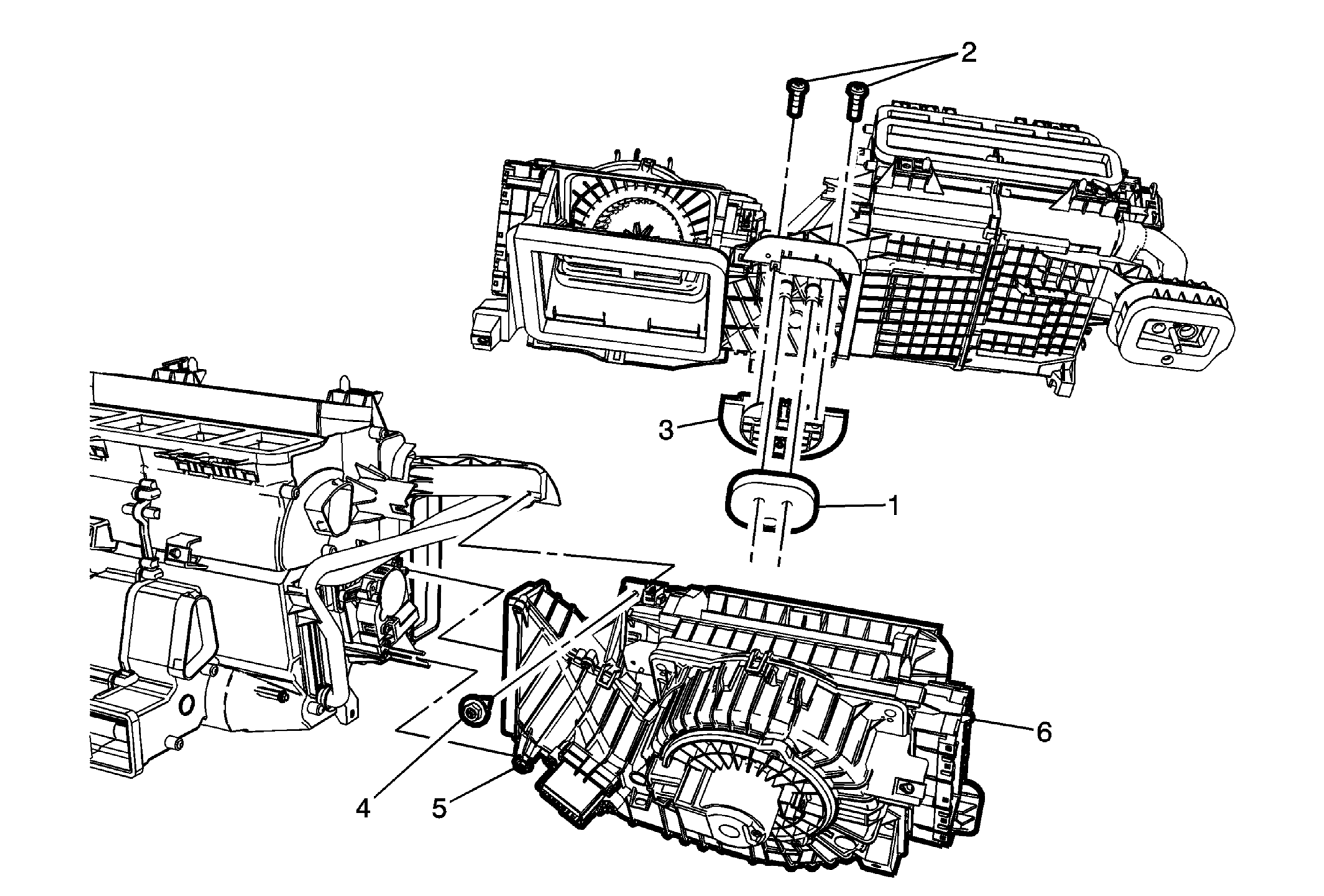

Fig 1: Blower Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the heater and air conditioning evaporator and blower module. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (L77 MYC) .
1	Heater Core Pipe Seal
2	Heater and Air Conditioning Evaporator and Blower Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Heater Core Pipe Bracket
4	Blower Assembly Fastener
5	Blower Assembly Fastener Procedure Loosen the blower assembly fastener.
6	Blower Assembly Procedures Disconnect the blower assembly electrical connectors. Remove the blower motor. Refer to Blower Motor Replacement . Remove the blower control module. Refer to Blower Motor Control Module Replacement . Remove the fresh air recirculation mode valve actuator motor. Refer to Mode Valve Actuator Motor Replacement - Fresh Air Recirculation . Transfer the components as necessary.
