Blower Motor Control Module Replacement

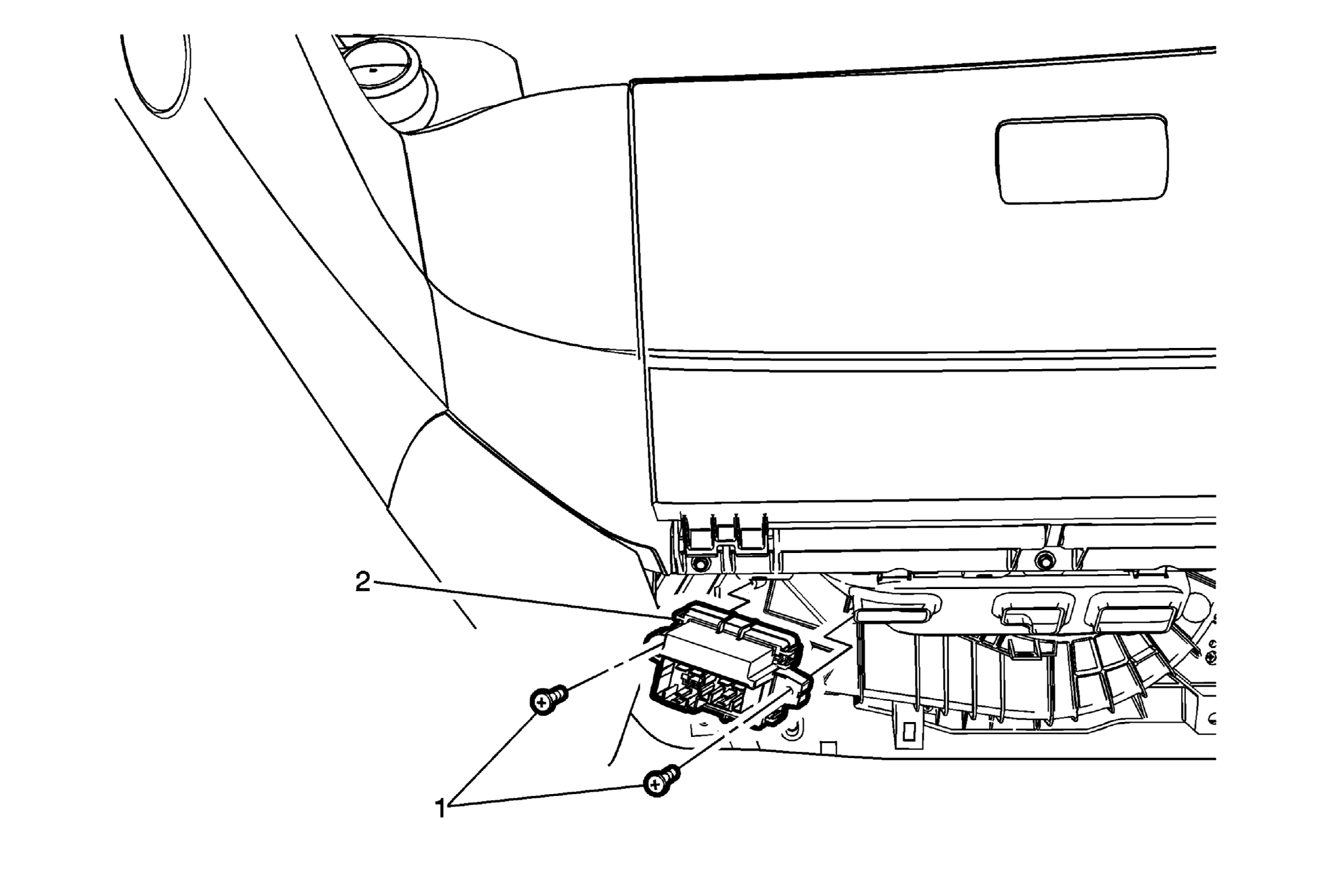

Fig 1: Blower Motor Control Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .
1	Blower Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Blower Control Module Procedure  Disconnect the blower control module electrical connector.
