Removal Procedure

    WARNING:

    Refer to Safety Glasses Warning .

    WARNING:

    Refer to Radiator Cap Removal Warning .

  1. Ensure engine is below 50°C before removing the coolant pressure cap.
  2. Drain the cooling system. Refer to Cooling System Draining and Filling .
  3. Remove the engine cover. Refer to Engine Cover Replacement .
  4. Remove the mass air flow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
  5. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
    6. Fig 1: Radiator Inlet Hose & Clamp
    GM3271058Courtesy of GENERAL MOTORS COMPANY
  6. Reposition the radiator inlet hose clamp (1) on the radiator inlet hose (2) using BO-38185  hose clamp pliers.
  7. Remove the radiator inlet hose (2) from the radiator.
    8. Fig 2: Radiator Inlet Hose & Clamp
    GM3271060Courtesy of GENERAL MOTORS COMPANY
  8. Reposition the radiator inlet hose clamp (1) on the radiator inlet hose (2) using BO-38185  hose clamp pliers.
  9. Remove the radiator inlet hose (2) from the water pump.
    10. Fig 3: Radiator Inlet Hose & Clamp
    GM3271062Courtesy of GENERAL MOTORS COMPANY
  10. Reposition the radiator inlet hose clamp (1) on the radiator inlet hose (2) using BO-38185  hose clamp pliers.
  11. Remove the radiator inlet hose (2) from the engine oil cooler pipe.

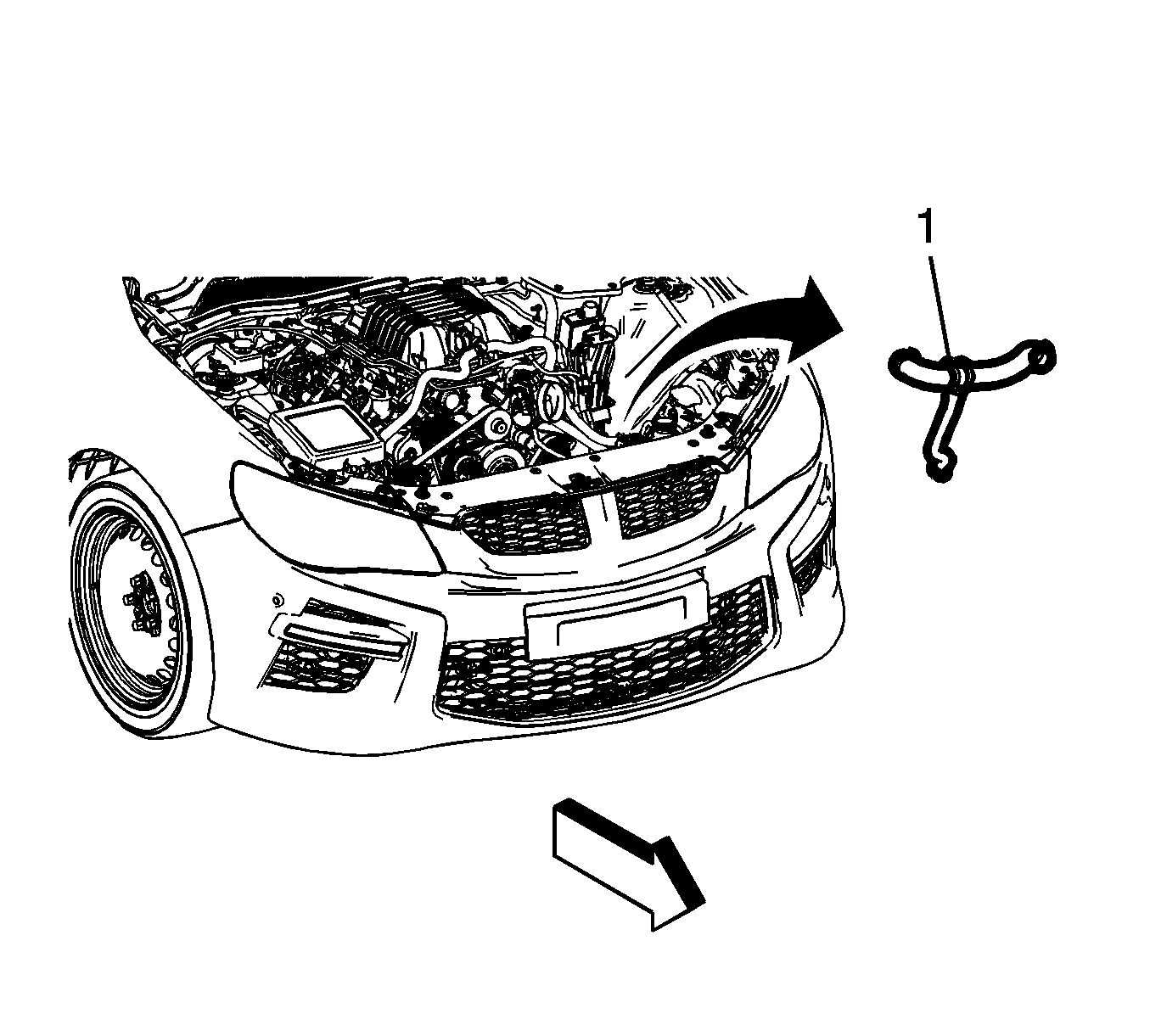

    12. Fig 4: Radiator Inlet Hose
    GM3271063Courtesy of GENERAL MOTORS COMPANY
  12. Remove the radiator inlet hose (1) from the vehicle.
