Engine Cover Replacement

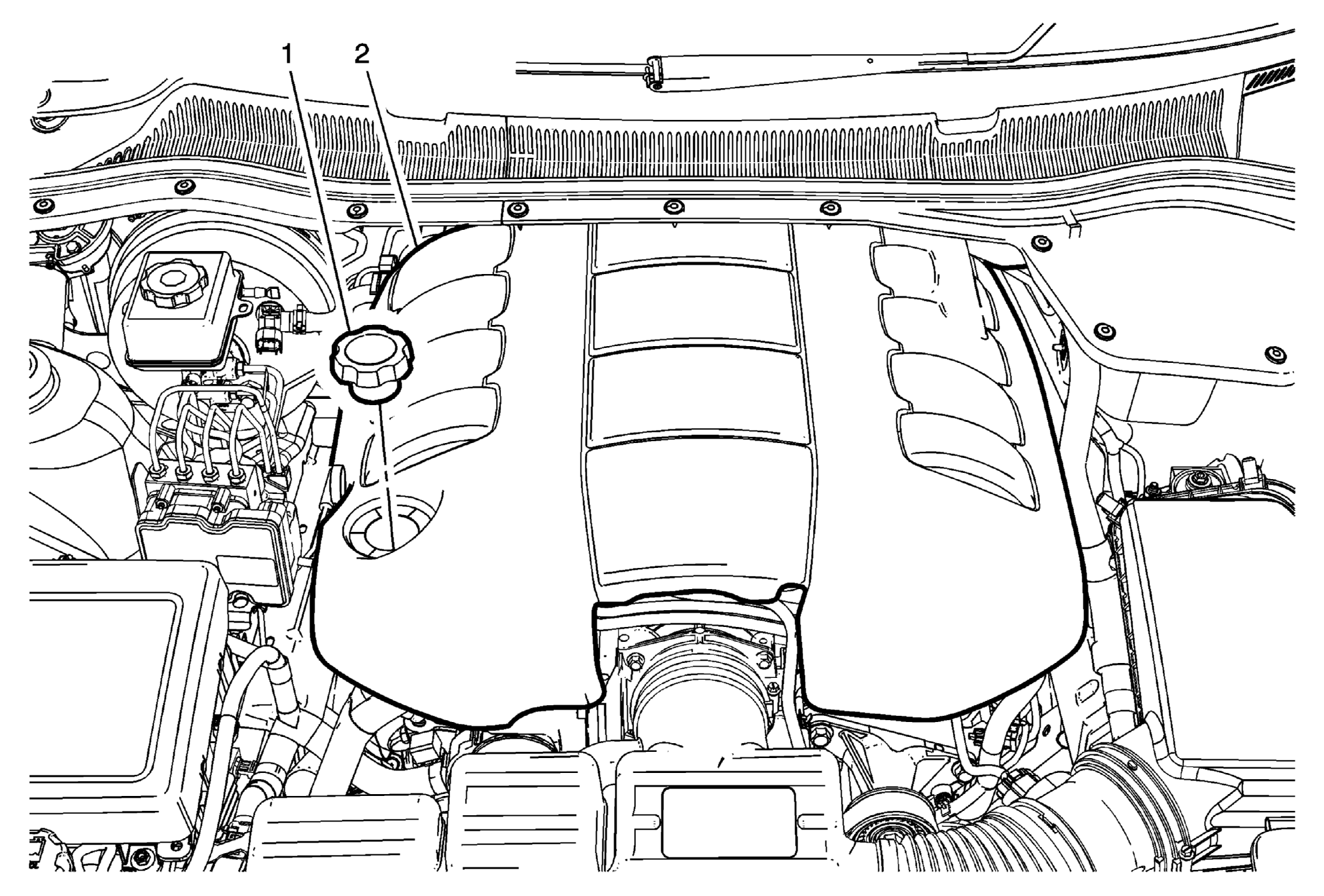

Fig 1: Engine Cover
GM3288487Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Cap
2 Engine Cover
Procedure
Pull upward on the front of the engine cover to detach the engine cover to fuel injector rail retaining clips.
