Serial Data Gateway Module Replacement (With IO5, IO6)

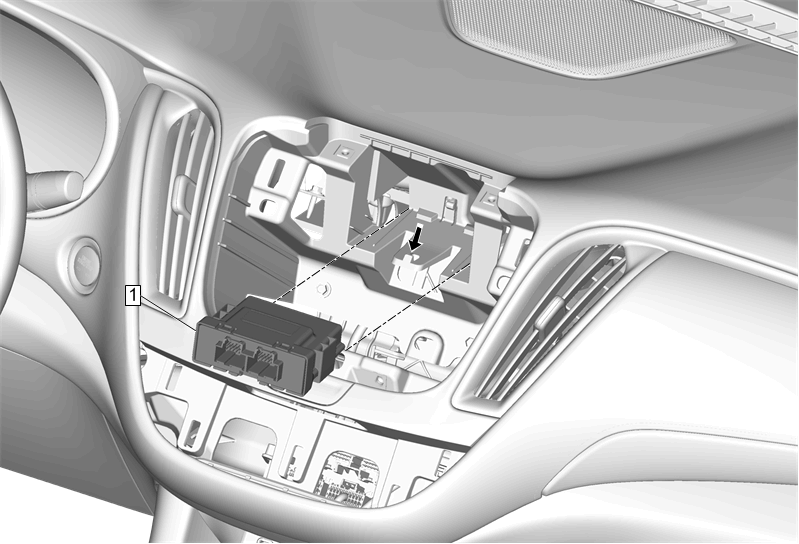

Fig 1: Serial Data Gateway Module (With IO5, IO6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Radio Control Assembly Replacement
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure: Control Module References
