Radio Control Assembly Replacement

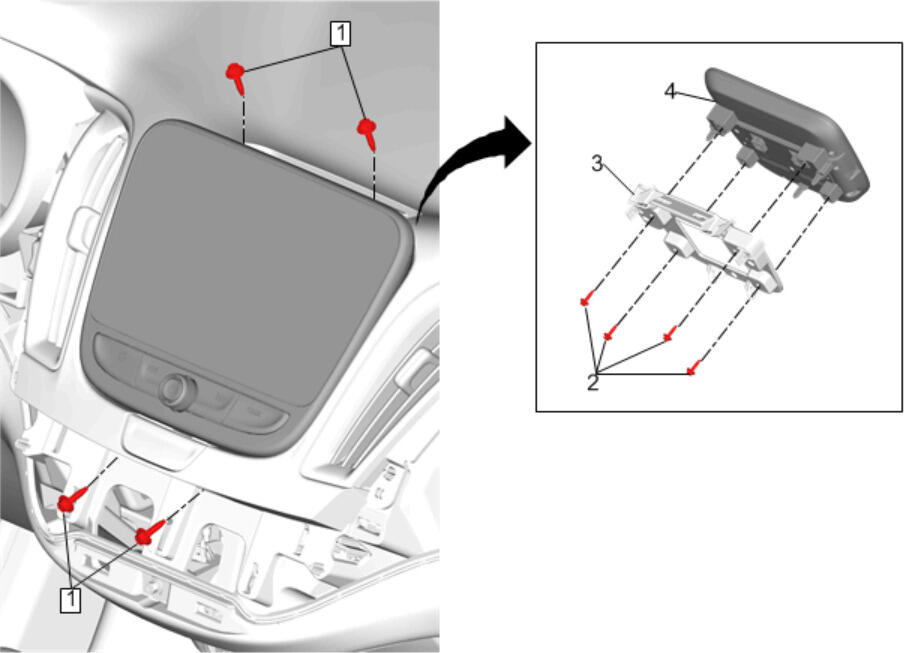

Fig 1: Radio Control Assembly (RPO IO5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Center Bolt Cover Replacement Heater and Air Conditioning User Interface Control Replacement (CJ2)Heater and Air Conditioning User Interface Control Replacement (C4P)
1	Instrument Panel Trim Plate Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Bolt [4x] Tighten 2.5 N.m (22 lb in)
3	Instrument Panel Trim Plate
4	Radio Control Assembly Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup procedures, if required.
