Sunroof Switch Replacement

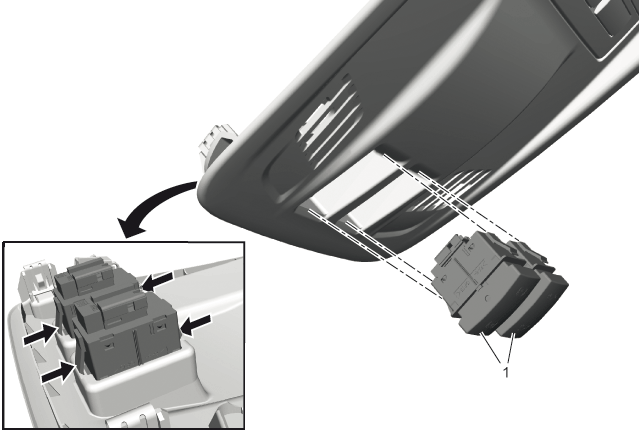

Fig 1: Sunroof Switch
GM4087918Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Sunroof Switch
Procedure
Release the retaining tab. - Use a suitable tool.
