Roof Console Replacement

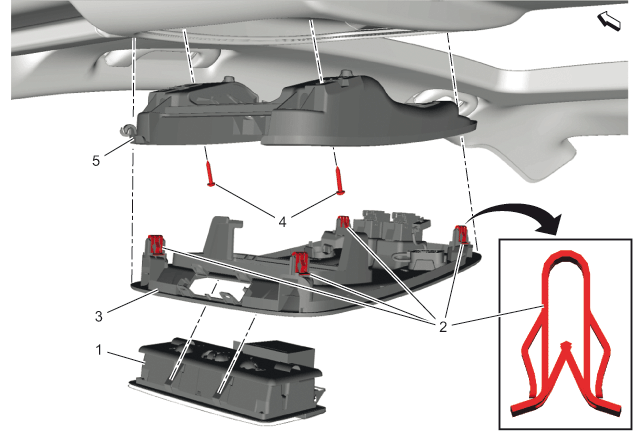

Fig 1: Roof Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Dome and Reading Lamp Lens Replacement - Front
1	Courtesy Lamp Assembly Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connector.
1	Roof Console Bezel Retainer (Qty: 4) Procedure Use a flat bladed plastic tool to remove.
2	Roof Console Bezel Assembly Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connector.
3	Roof Console Backing Plate Fastener (Qty: 2) CAUTION: Fastener Caution Tighten 2 N.m (18 lb in)
4	Roof Console Backing Plate
