Removal Procedure

WARNING:

When performing any service on or around the passenger airbag module or instrument panel, ensure that the module and panel are not disturbed or damaged in any way. Do not remove the module from the panel under any circumstances. If a service cannot be completed without removing the module from the panel, the module and panel must be removed together and each be replaced. The new module must be assembled into the new panel and its position verified. Failure to observe these steps may result in a nonfunctional or unwanted airbag deployment, which may injure you or others.

  1. Disable the SIR system. SIR Disabling and Enabling

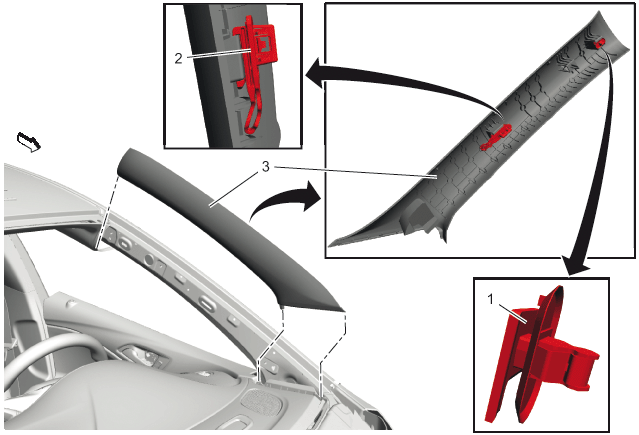

    2. Fig 1: Windshield Garnish Molding
    GM4039430Courtesy of GENERAL MOTORS COMPANY
  2. Remove Windshield Garnish Molding Replacement (3)
    3. Fig 2: Instrument Panel Outer Trim Cover - Right Side
    GM3686273Courtesy of GENERAL MOTORS COMPANY
  3. Remove Instrument Panel Outer Trim Cover Replacement - Right Side (2)

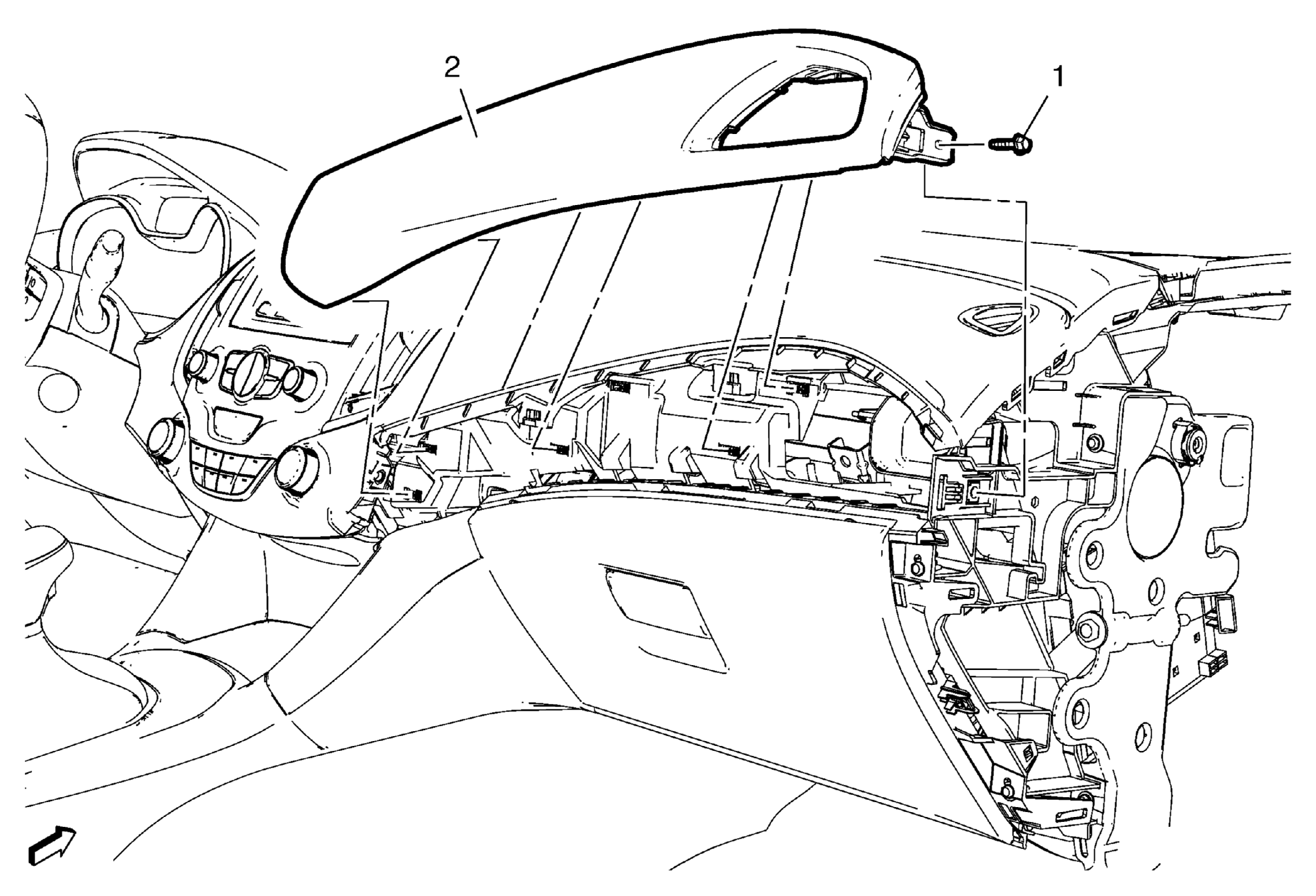

    4. Fig 3: Instrument Panel Trim Pad - Right Side
    GM3657243Courtesy of GENERAL MOTORS COMPANY
  4. Remove Instrument Panel Trim Pad Replacement - Right Side (1)

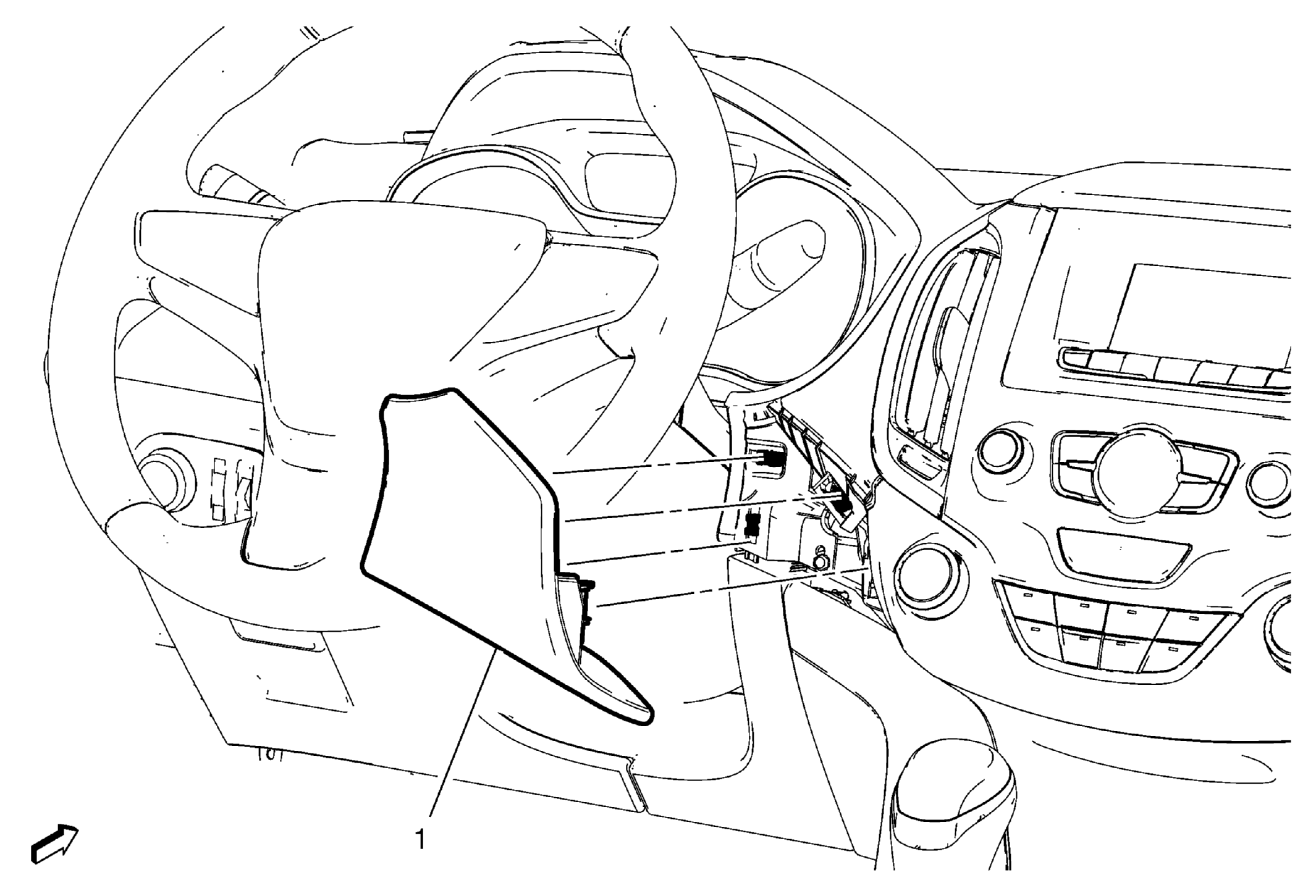

    5. Fig 4: Instrument Panel Center Trim Pad
    GM3657254Courtesy of GENERAL MOTORS COMPANY
  5. Remove Instrument Panel Center Trim Pad Replacement (1)

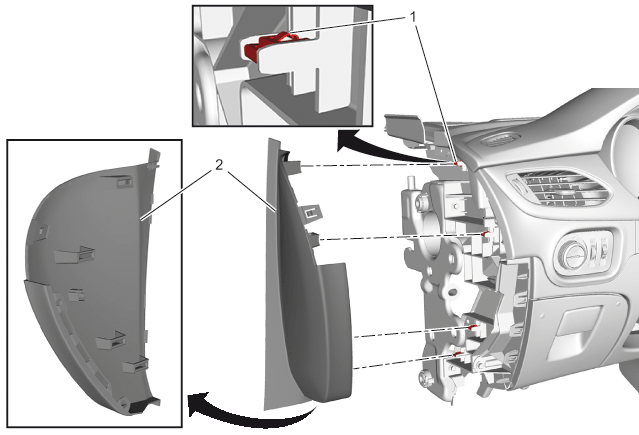

    6. Fig 5: Instrument Panel Outer Trim Cover - Left Side
    GM4091475Courtesy of GENERAL MOTORS COMPANY
  6. Remove Instrument Panel Outer Trim Cover Replacement - Left Side (2)

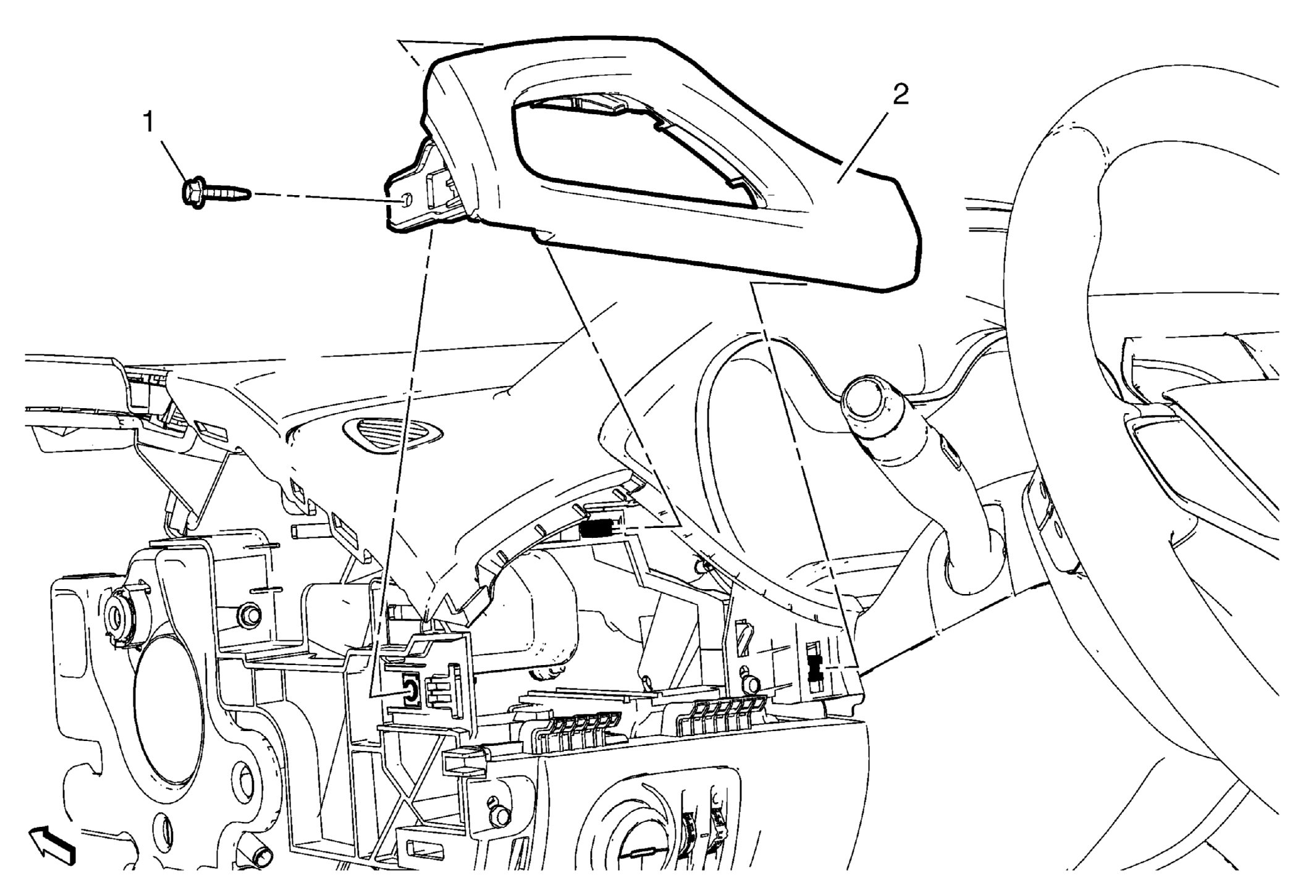

    7. Fig 6: Instrument Panel Trim Pad - Left Side
    GM3657248Courtesy of GENERAL MOTORS COMPANY
  7. Remove Instrument Panel Trim Pad Replacement - Left Side (2)

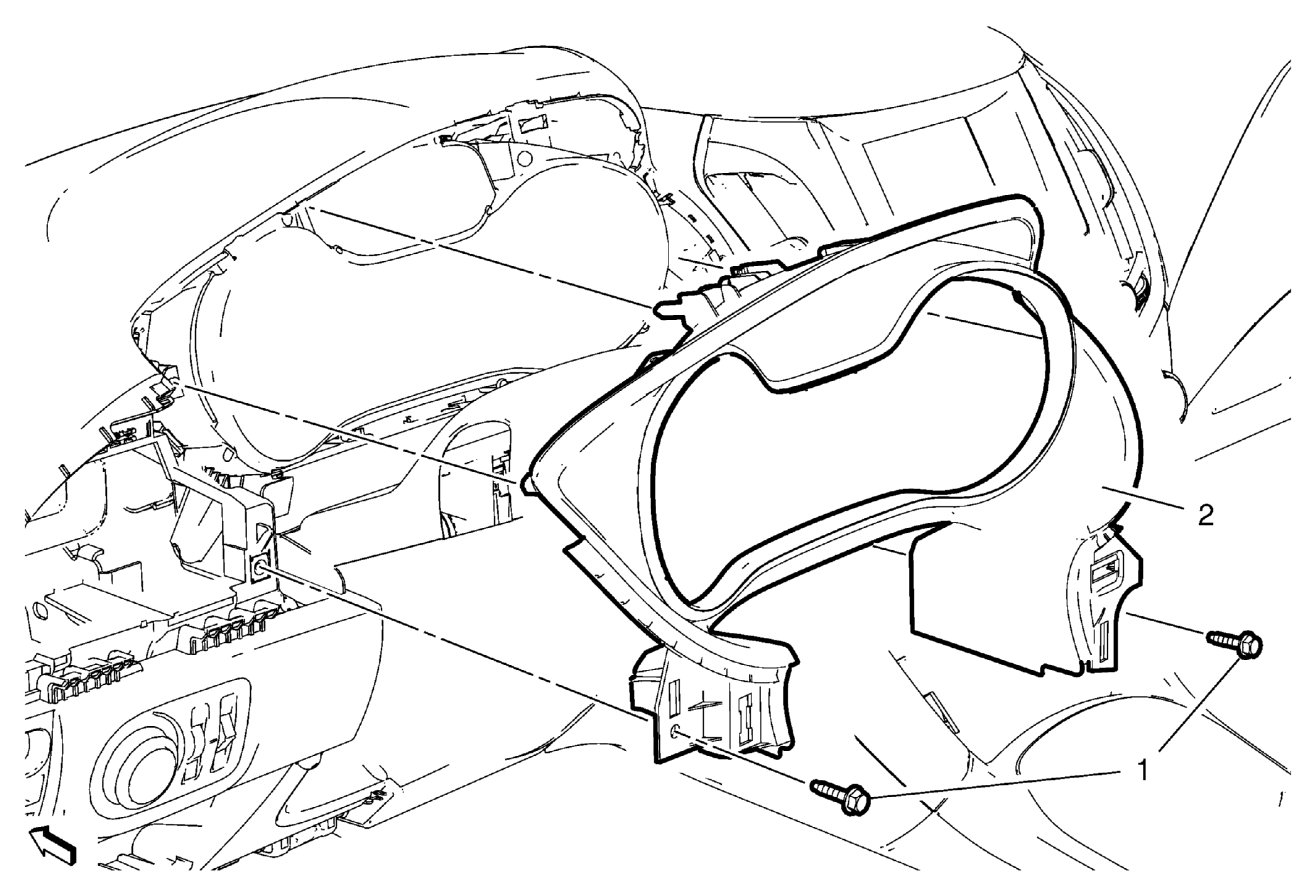

    8. Fig 7: Instrument Panel Cluster Trim Plate
    GM3642930Courtesy of GENERAL MOTORS COMPANY
  8. Remove Instrument Panel Cluster Trim Plate Replacement (2)

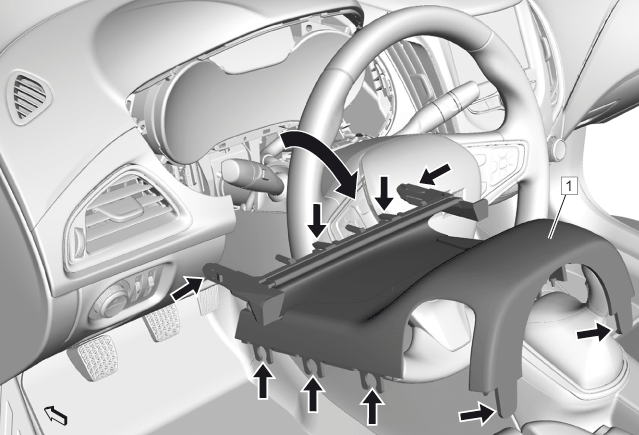

    9. Fig 8: Steering Column Upper Trim Cover
    GM4197178Courtesy of GENERAL MOTORS COMPANY
  9. Remove Steering Column Upper Trim Cover Replacement (1)

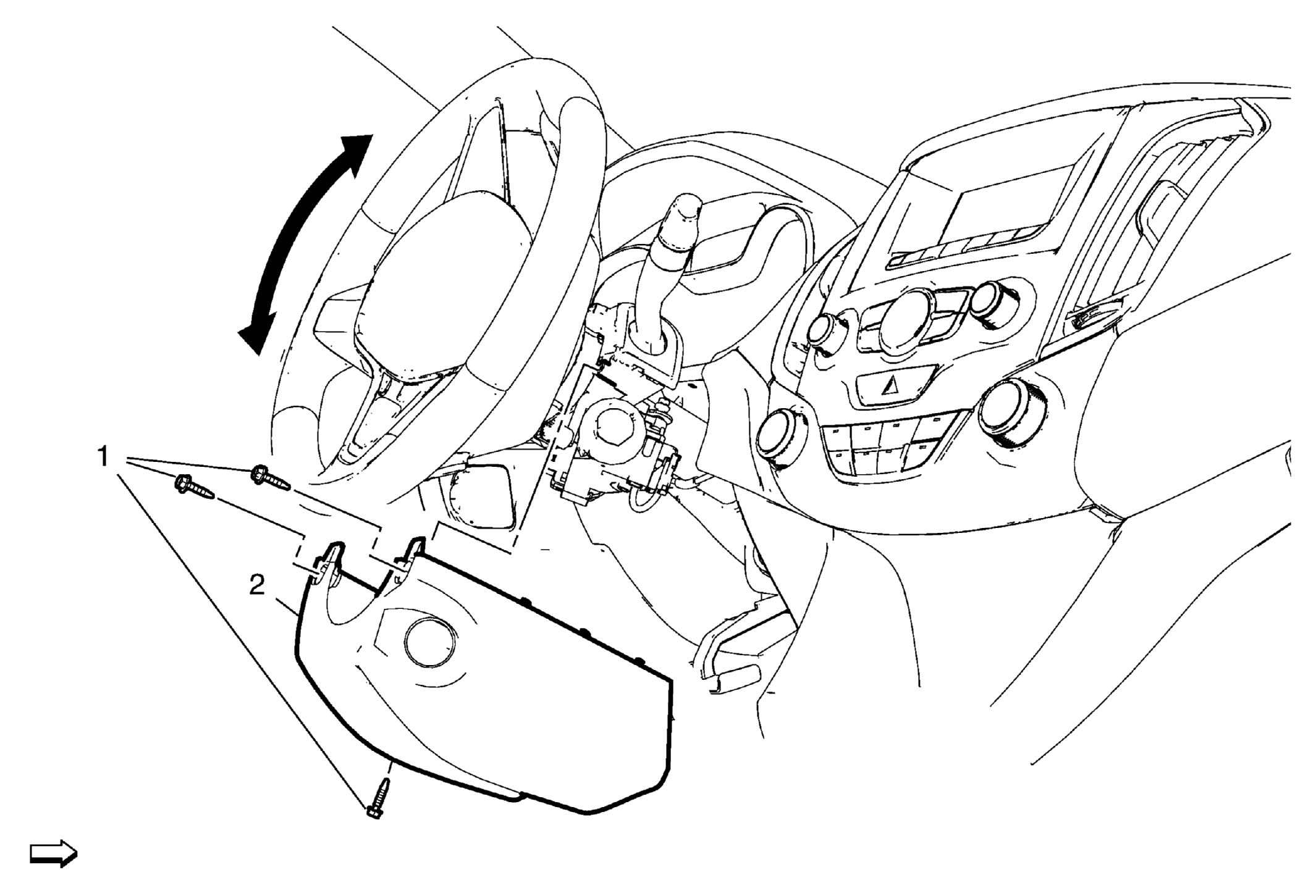

    10. Fig 9: Steering Column Lower Trim Cover
    GM3653358Courtesy of GENERAL MOTORS COMPANY
  10. Remove Steering Column Lower Trim Cover Replacement (2)

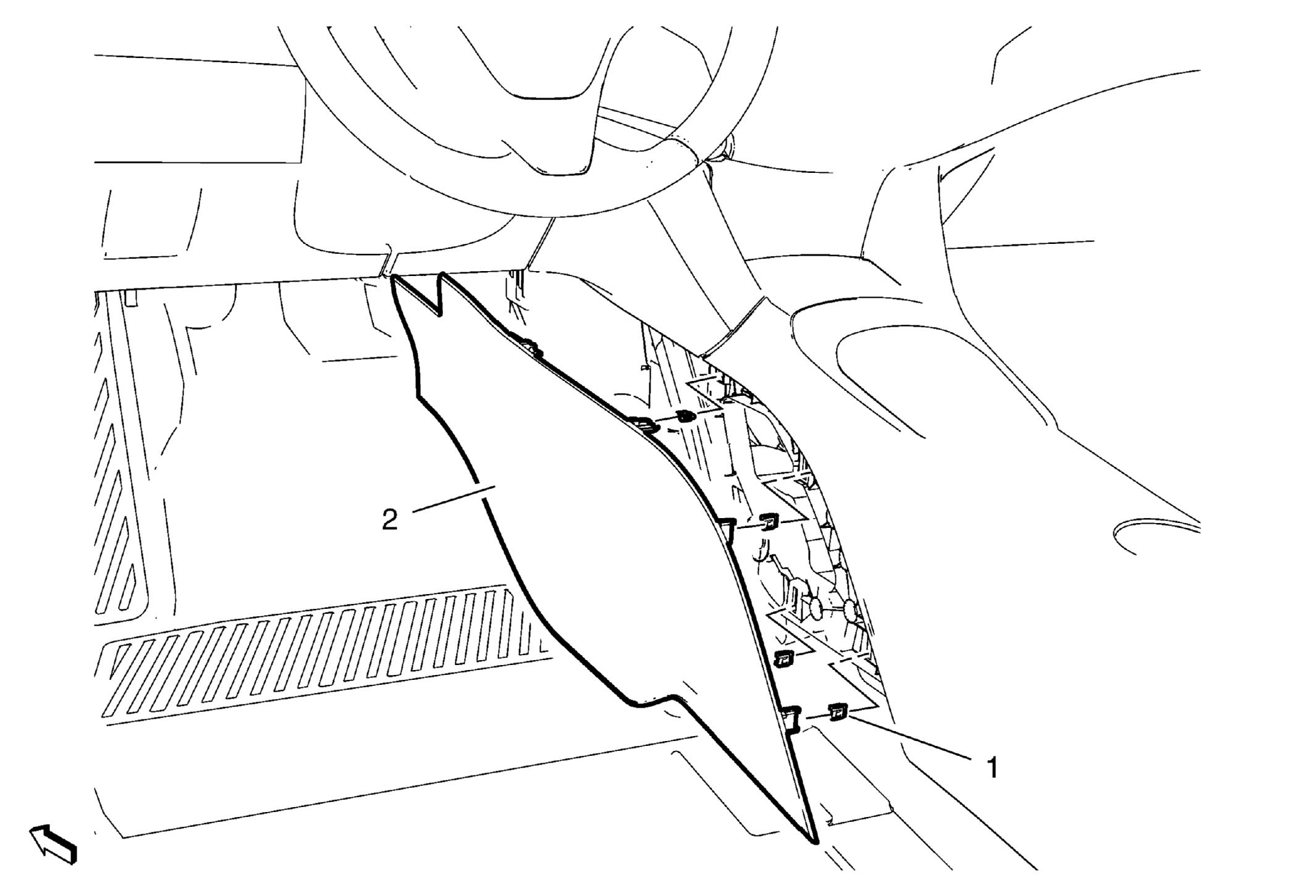

    11. Fig 10: Front Floor Console Extension Panel
    GM3642909Courtesy of GENERAL MOTORS COMPANY
  11. Remove Front Floor Console Extension Panel Replacement (2)
    12. Fig 11: Instrument Panel Fuse Block Access Hole Cover
    GM3642910Courtesy of GENERAL MOTORS COMPANY
  12. Remove Instrument Panel Fuse Block Access Hole Cover Replacement (1)
    13. Fig 12: Instrument Panel Fuse Block Access Cover Frame
    GM3682514Courtesy of GENERAL MOTORS COMPANY
  13. Remove Instrument Panel Fuse Block Access Cover Frame Replacement (1)
    14. Fig 13: Instrument Panel Compartment
    GM4422282Courtesy of GENERAL MOTORS COMPANY
  14. Remove Instrument Panel Compartment Replacement (2)

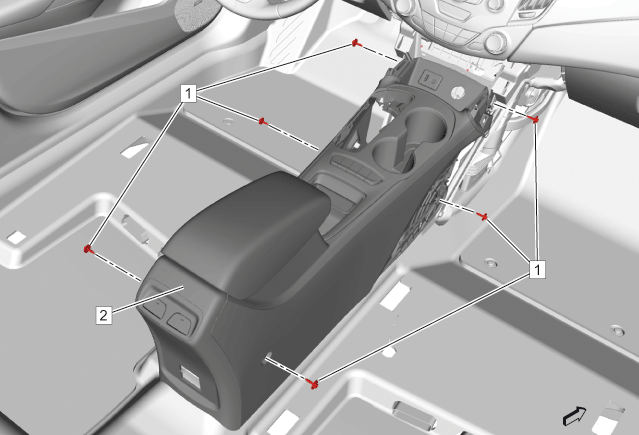

    15. Fig 14: Front Floor Console
    GM4290387Courtesy of GENERAL MOTORS COMPANY
  15. Remove Front Floor Console Replacement (Base) Front Floor Console Replacement (Up Level) (2)

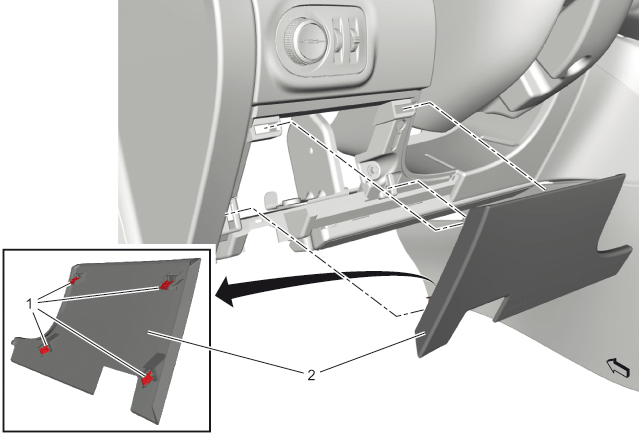

    16. Fig 15: Instrument Panel Knee Bolster Compartment
    GM4290320Courtesy of GENERAL MOTORS COMPANY
  16. Remove Instrument Panel Knee Bolster Compartment Replacement (2)

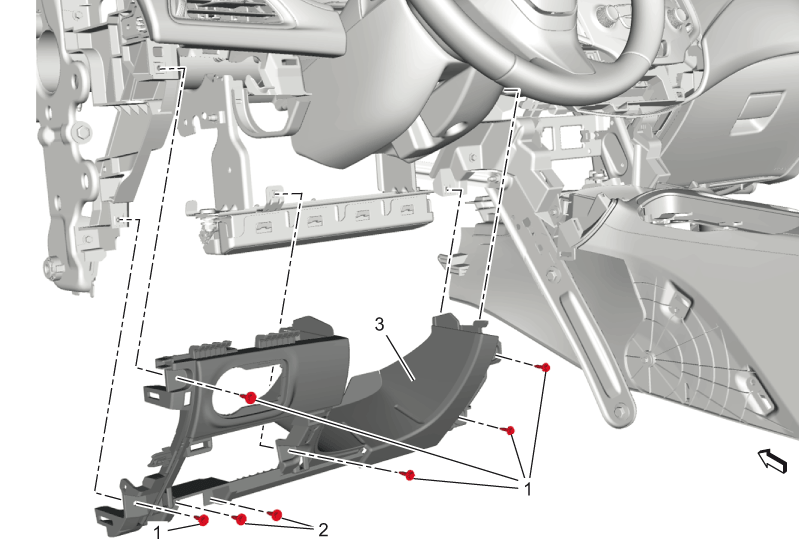

    17. Fig 16: Instrument Panel Knee Bolster
    GM4290321Courtesy of GENERAL MOTORS COMPANY
  17. Remove Instrument Panel Knee Bolster Replacement (2)
  18. Disconnect the headlamp switch electrical connector.

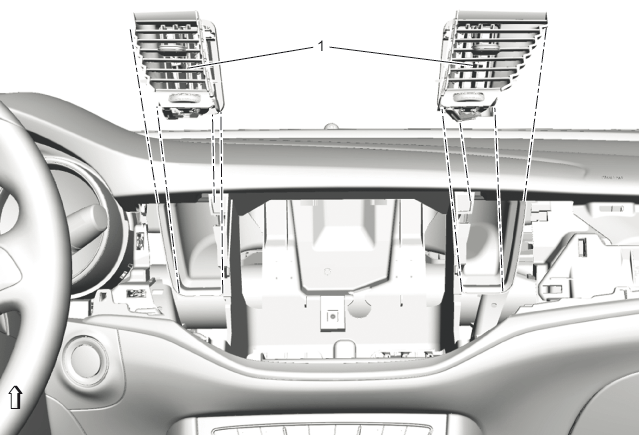

    19. Fig 17: Instrument Panel Center Air Outlet
    GM4211449Courtesy of GENERAL MOTORS COMPANY
  19. Remove Instrument Panel Center Air Outlet Replacement (1)

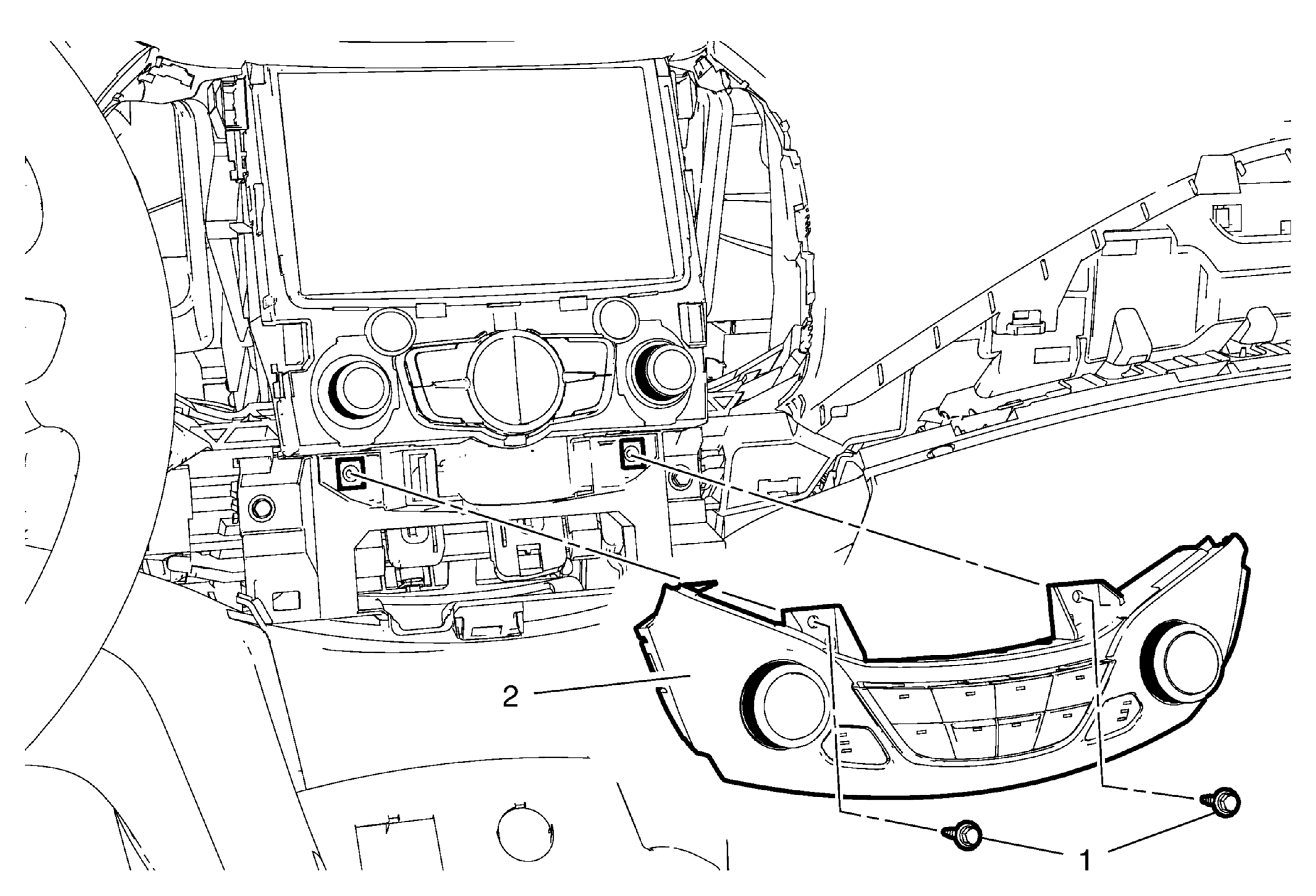

    20. Fig 18: Heater and Air Conditioning Control
    GM3686302Courtesy of GENERAL MOTORS COMPANY
  20. Remove Heater and Air Conditioning Control Replacement (1)
    21. Fig 19: Radio Control Assembly (IO5 or IO6)
    GM4284260Courtesy of GENERAL MOTORS COMPANY
  21. Remove Radio Control Assembly Replacement (IO5 or IO6) (2)

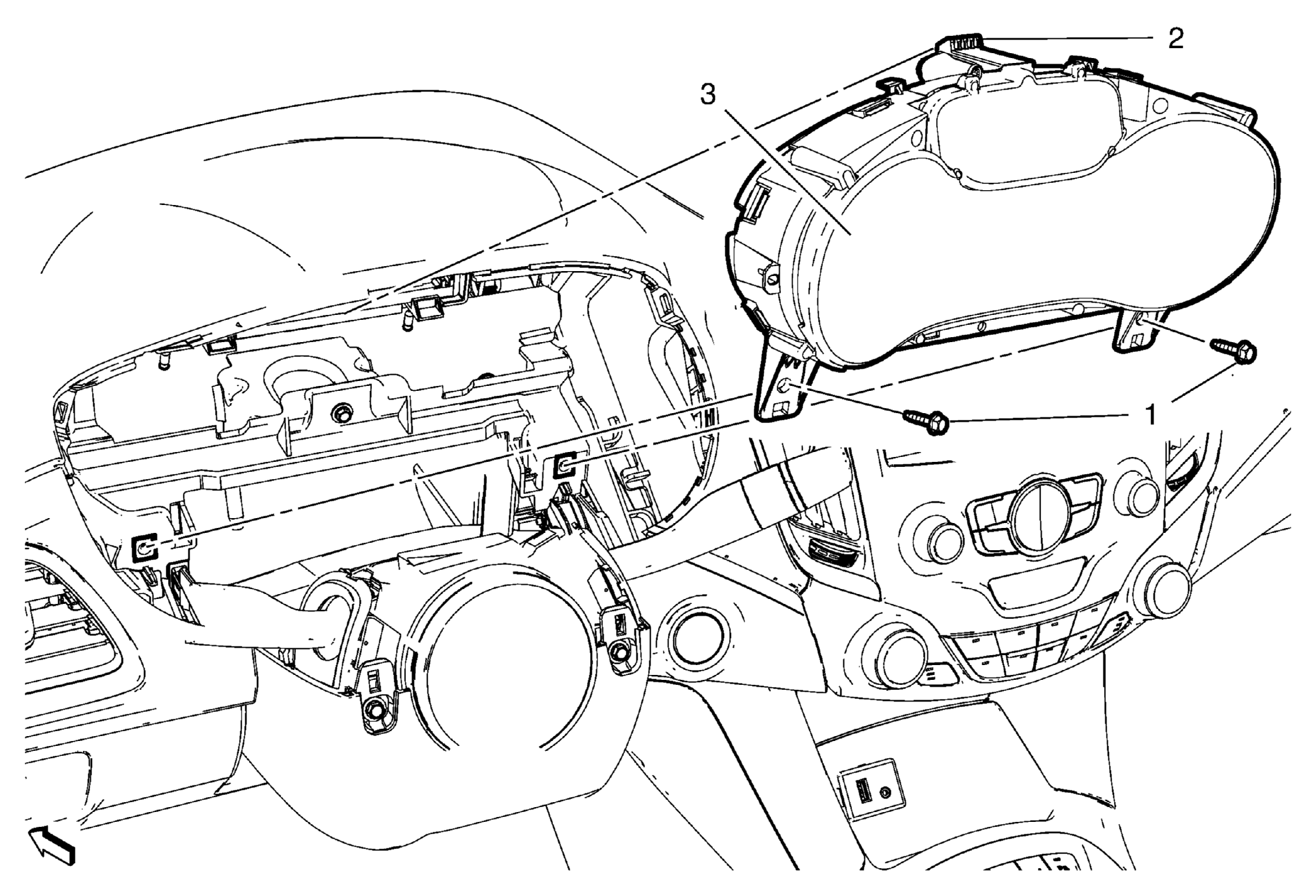

    22. Fig 20: Instrument Cluster
    GM3680303Courtesy of GENERAL MOTORS COMPANY
  22. Remove Instrument Cluster Replacement (3)
    23. Fig 21: Forward Collision Alert Display
    GM4064448Courtesy of GENERAL MOTORS COMPANY
  23. { If equipped } Remove Forward Collision Alert Display Replacement (3)

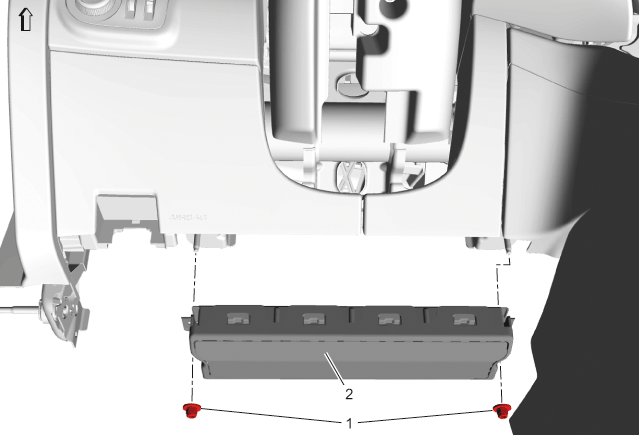

    24. Fig 22: Instrument Panel Lower Airbag - Driver Side
    GM4290301Courtesy of GENERAL MOTORS COMPANY
  24. Remove Instrument Panel Lower Airbag Replacement - Driver Side (2)

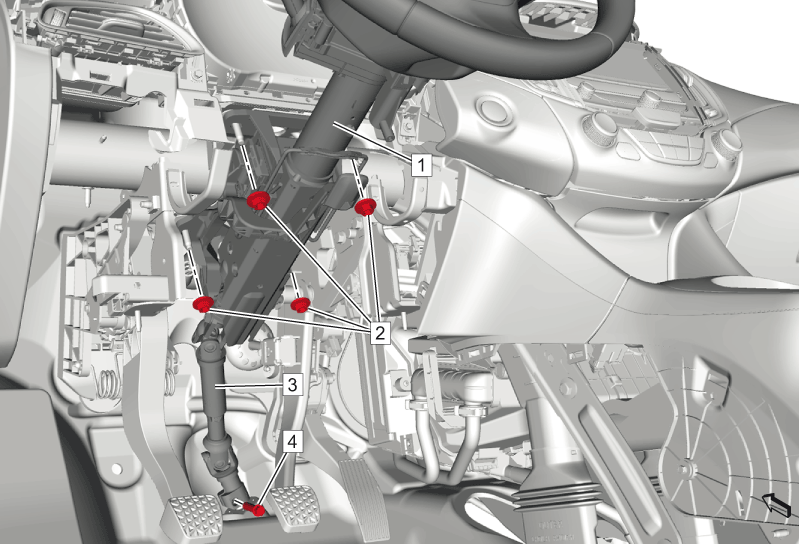

    25. Fig 23: Steering Column
    GM4422111Courtesy of GENERAL MOTORS COMPANY
  25. Loosen and lower the steering column (1). Refer to Steering Column Replacement .

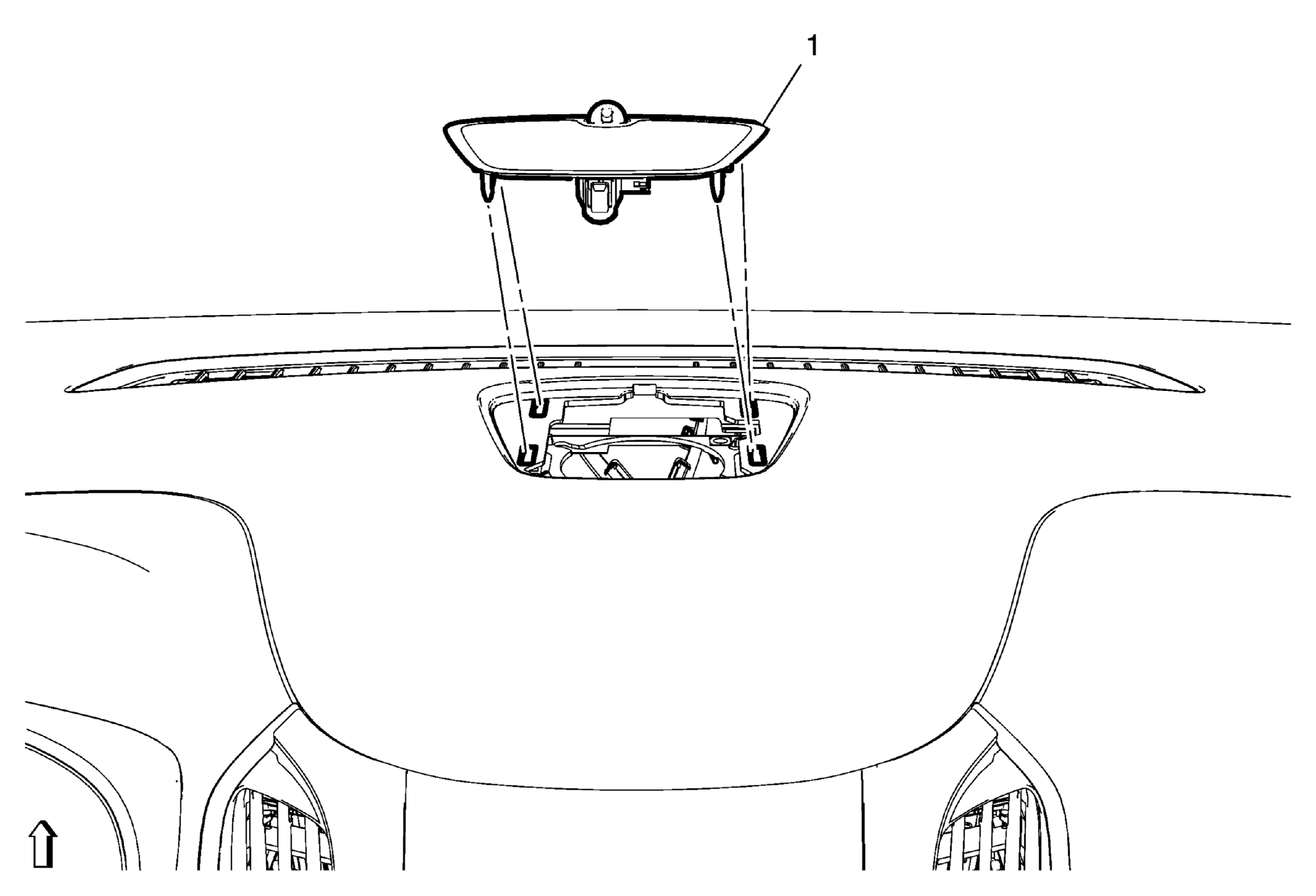

    26. Fig 24: Radio Front Center Speaker Grille
    GM3689043Courtesy of GENERAL MOTORS COMPANY
  26. Remove Radio Front Center Speaker Grille Replacement (1)
    27. Fig 25: Radio Front Center Speaker & Mounting Components
    GM2189478Courtesy of GENERAL MOTORS COMPANY
  27. Remove Radio Front Center Speaker Replacement (3)

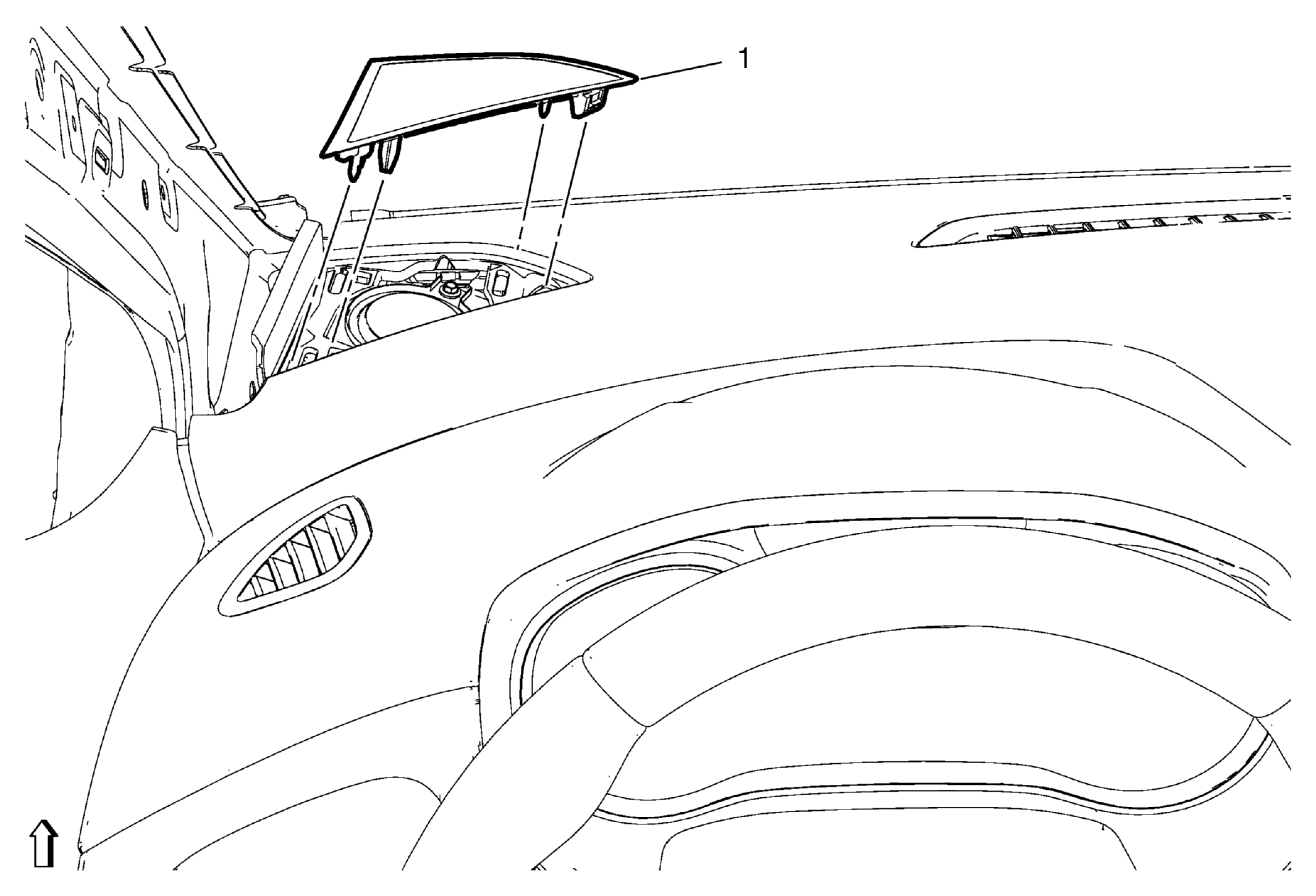

    28. Fig 26: Radio Front Speaker Grille
    GM3689039Courtesy of GENERAL MOTORS COMPANY
  28. Remove Radio Front Speaker Grille Replacement (1)
    29. Fig 27: Radio Front Speaker
    GM3680274Courtesy of GENERAL MOTORS COMPANY
  29. Remove Radio Front Speaker Replacement (2)

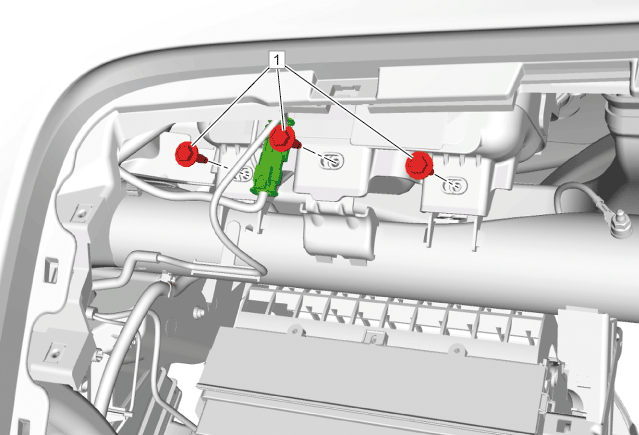

    30. Fig 28: Instrument Panel Airbag Bolts
    GM4253980Courtesy of GENERAL MOTORS COMPANY
  30. Remove Instrument Panel Airbag Bolt (1)
  31. Disconnect the instrument panel airbag electrical connector.

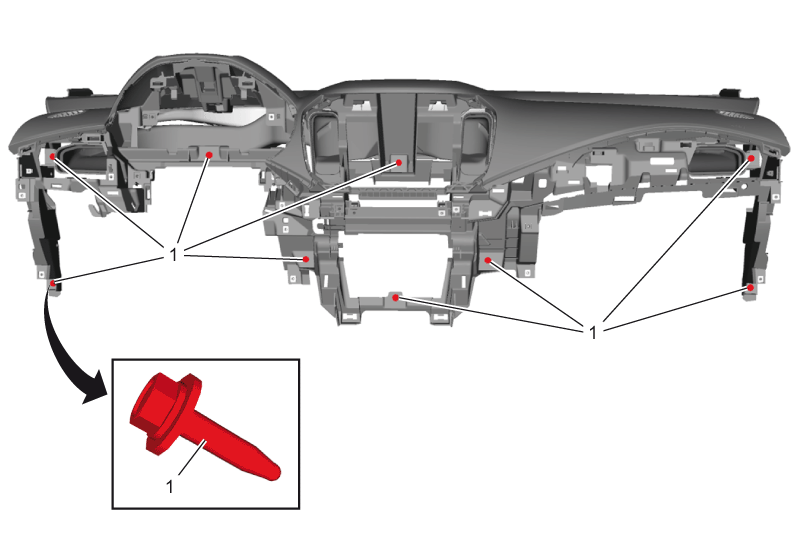

    32. Fig 29: Instrument Panel Bolts
    GM4582935Courtesy of GENERAL MOTORS COMPANY
  32. Remove Instrument Panel Bolt (1)

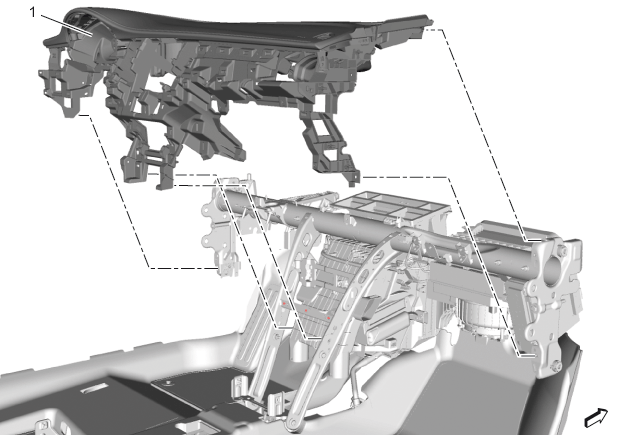

    33. Fig 30: Instrument Panel
    GM4088024Courtesy of GENERAL MOTORS COMPANY
  33. Note the location and routing of the instrument panel wiring harness assembly, to ensure proper reinstallation.
  34. Disconnect the fasteners securing the instrument panel wiring harness assembly to the instrument panel and position out of the way.
  35. With the aid of an assistant lift the instrument panel (1)from the tie bar assembly.
  36. Instrument Panel - Remove
  37. Transfer components as necessary.
