Radio Control Assembly Replacement (IO5 or IO6)

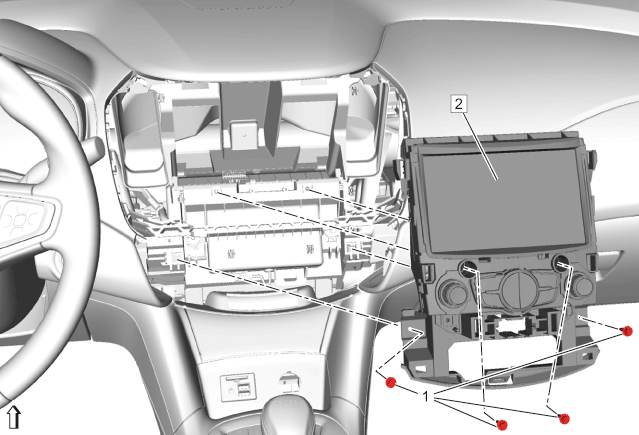

Fig 1: Radio Control Assembly (IO5 or IO6)
GM4284260Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Heater and Air Conditioning Control. Refer to Heater and Air Conditioning Control Replacement
  2. Remove Instrument Panel Center Trim Pad. Refer to Instrument Panel Center Trim Pad Replacement
  3. Remove Instrument Panel Center Air Outlet. Refer to Instrument Panel Center Air Outlet Replacement
1 Radio Control Assembly Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Radio Control Assembly

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect all electrical connectors.
