Installation Procedure

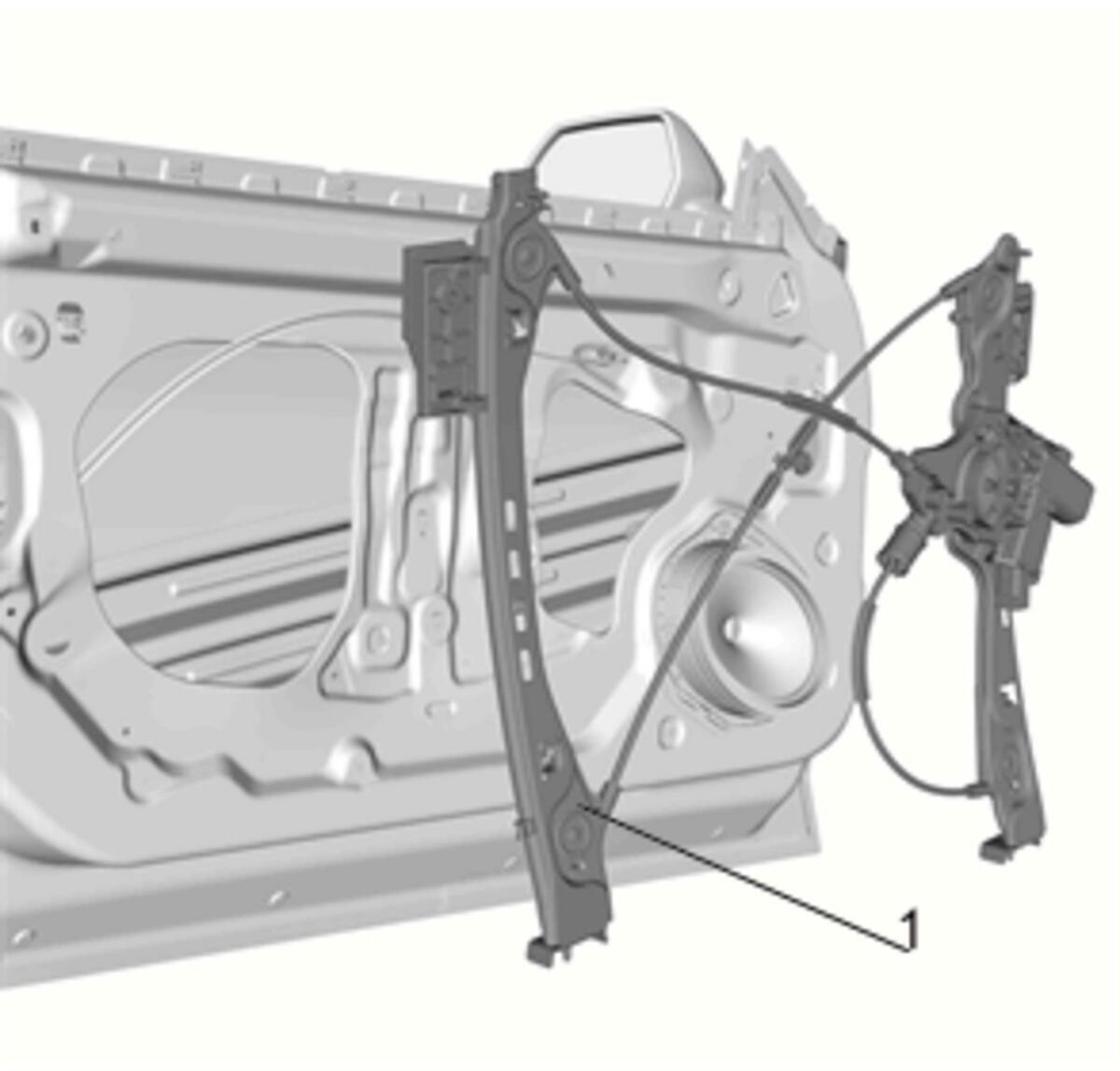

    Fig 1: Front Side Door Window Regulator
    GM4170671Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Side Door Window Regulator (1)

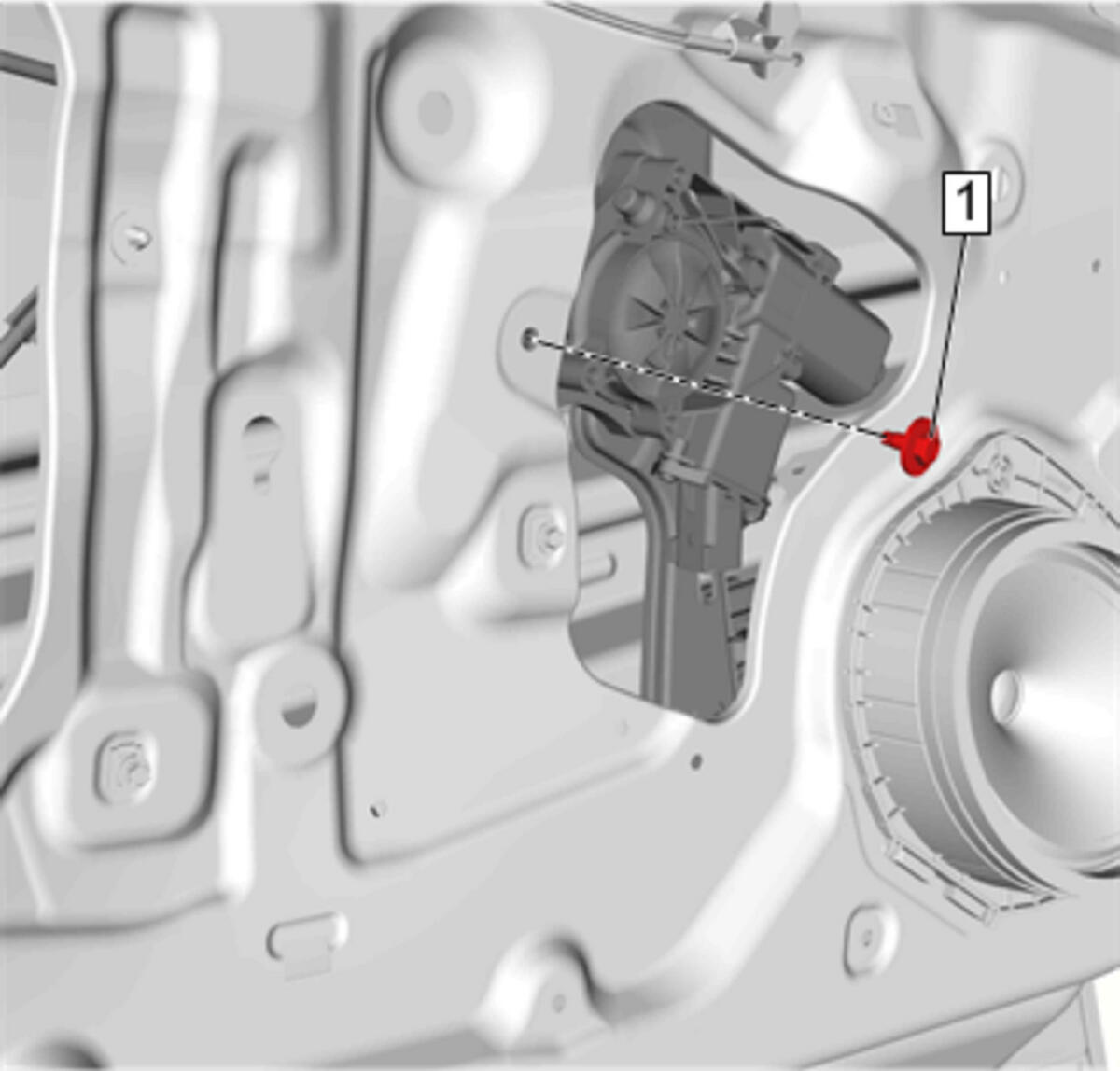

    2. Fig 2: Front Side Door Window Regulator Bolt
    GM4373853Courtesy of GENERAL MOTORS COMPANY
  2. Install Front Side Door Window Regulator Bolt (1) and tighten 10 N.m (89 lb in)

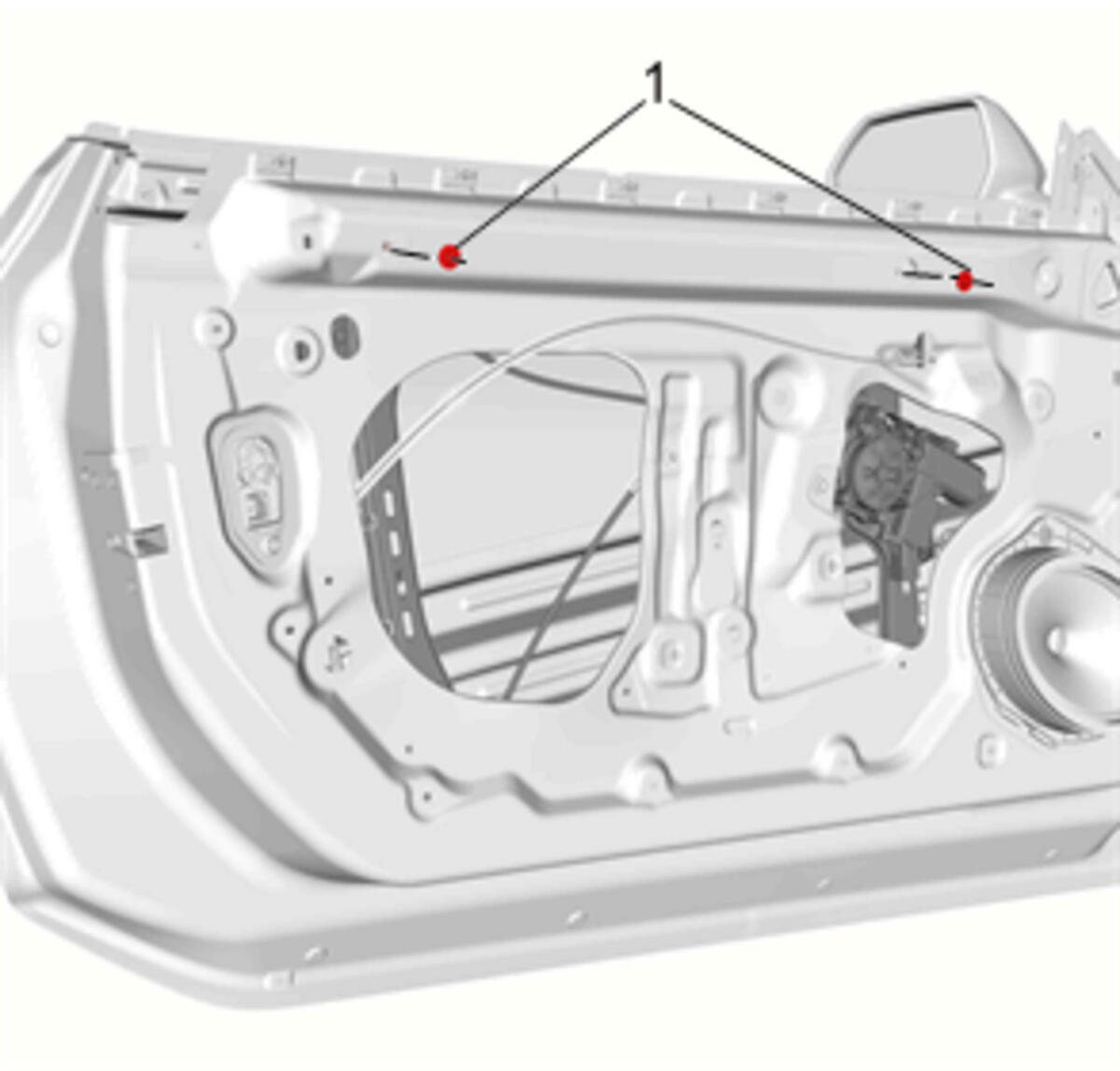

    3. Fig 3: Front Side Door Window Regulator Upper Nut
    GM4170666Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Side Door Window Regulator Upper Nut (1) and tighten 10 N.m (89 lb in)

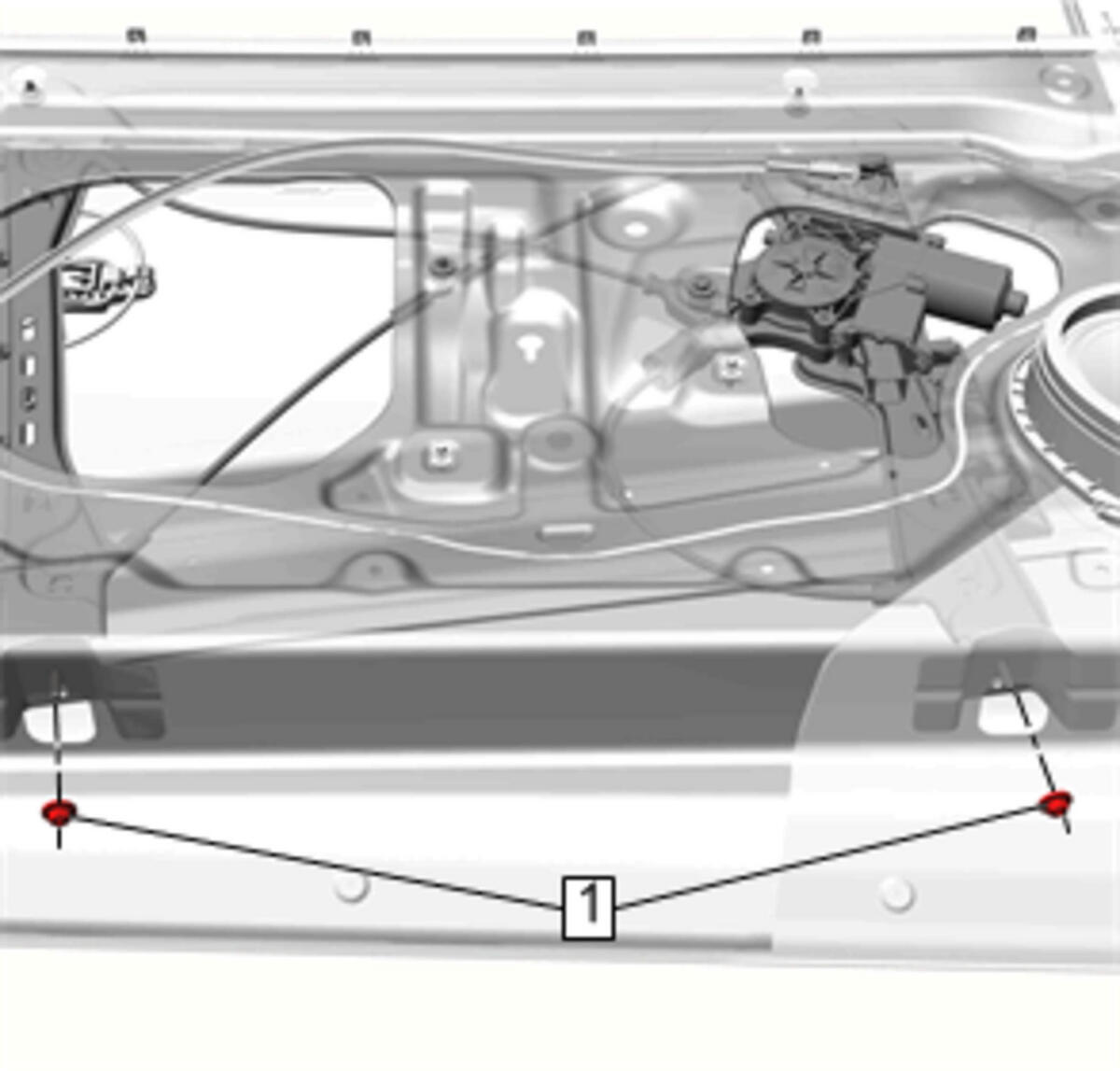

    4. Fig 4: Front Side Door Window Regulator Lower Nut
    GM4170650Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Side Door Window Regulator Lower Nut (1) and tighten 10 N.m (89 lb in)
    5. Fig 5: Door Plug
    GM4170657Courtesy of GENERAL MOTORS COMPANY
  5. Install Door Plug (1)
  6. Connect the electrical connector.
  7. Install Front Side Door Window Front Side Door Window Replacement
