Front Side Door Window Replacement

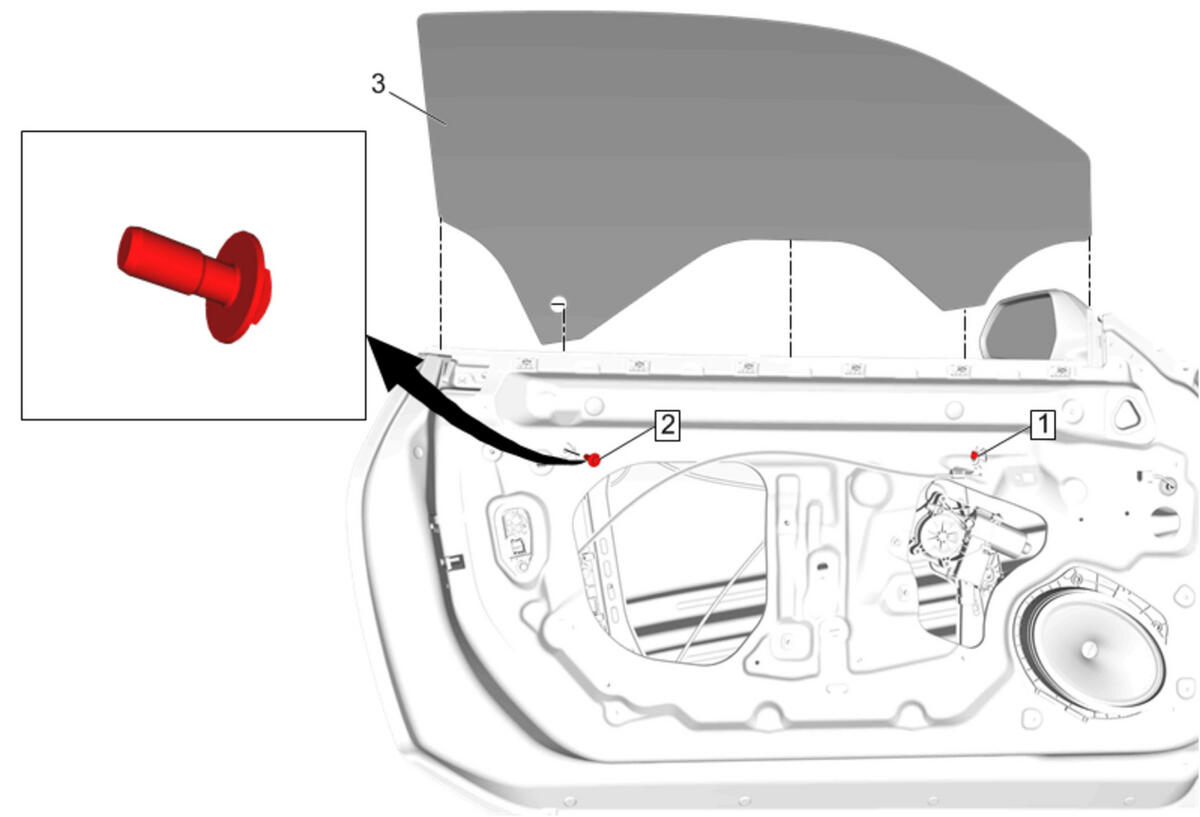

Fig 1: Front Side Door Window
GM4167244Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Front Side Door Window Weatherstrip Replacement
  2. Raise window in the full up position.
1 Front Side Door Window Regulator Fastener
Tighten
10 N.m (89 lb in)
NOTE:

Mark location of the front window retainer adjuster bolt before loosening to aid in installation.


Using an appropriate tool, disengage window clip.
2 Front Side Door Window Regulator Fastener
Procedure
  1. Remove the fastener.
  2. Using an appropriate tool, disengage window clip.

Tighten
10 N.m (89 lb in)
3 Remove front side door window.
