Right Side Engine Compartment

Right Side Engine Compartment

Items
1: K10 Coolant Heater Control Module K10 Coolant Heater Control Module X1K10 Coolant Heater Control Module X2
2: M75R Windshield Wiper Motor Module - Right M75R Windshield Wiper Motor Module - Right
3: K17 Electronic Brake Control Module K17 Electronic Brake Control Module

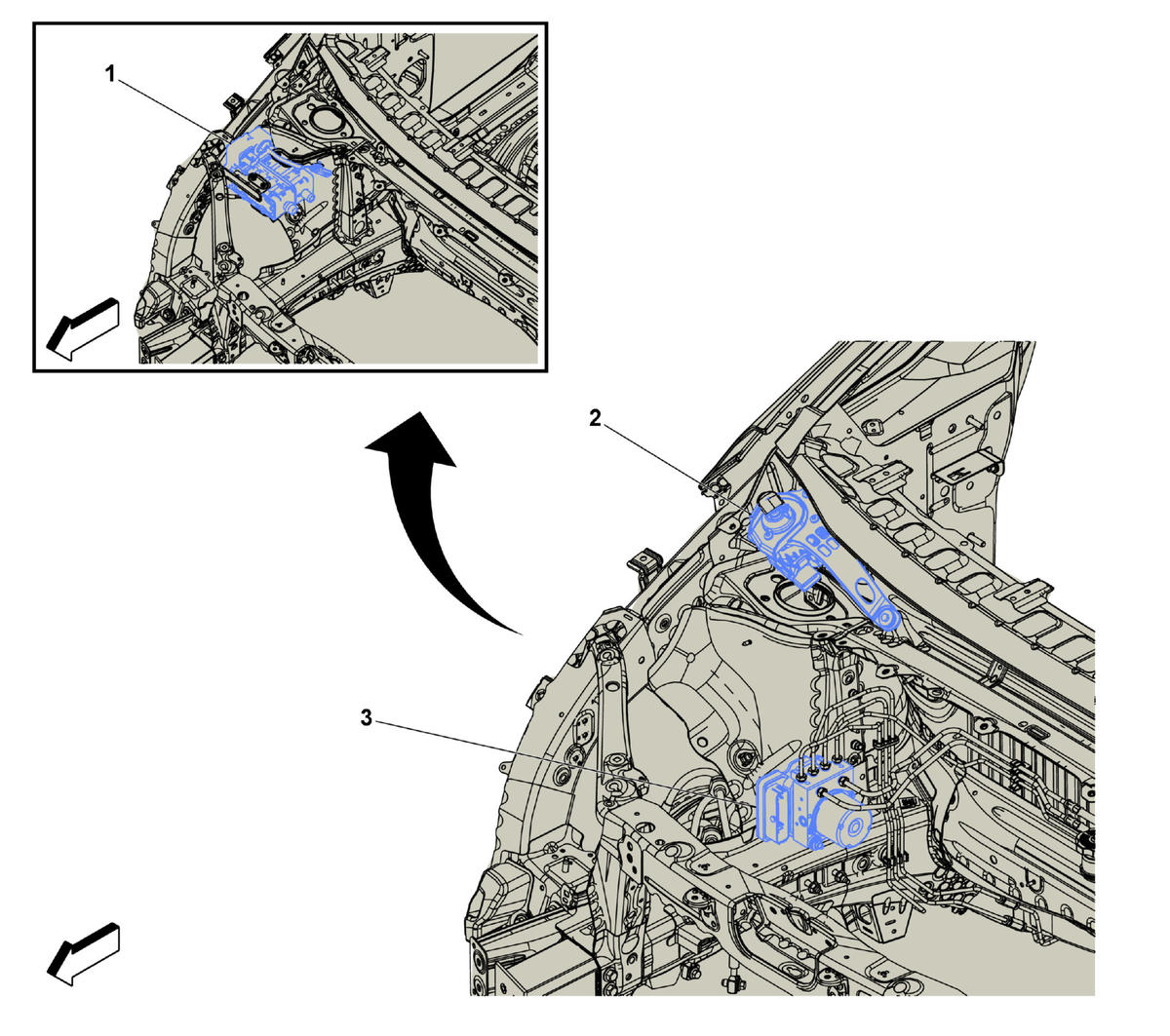

Fig 1: Right Side Engine Compartment
GM4531098Courtesy of GENERAL MOTORS COMPANY
