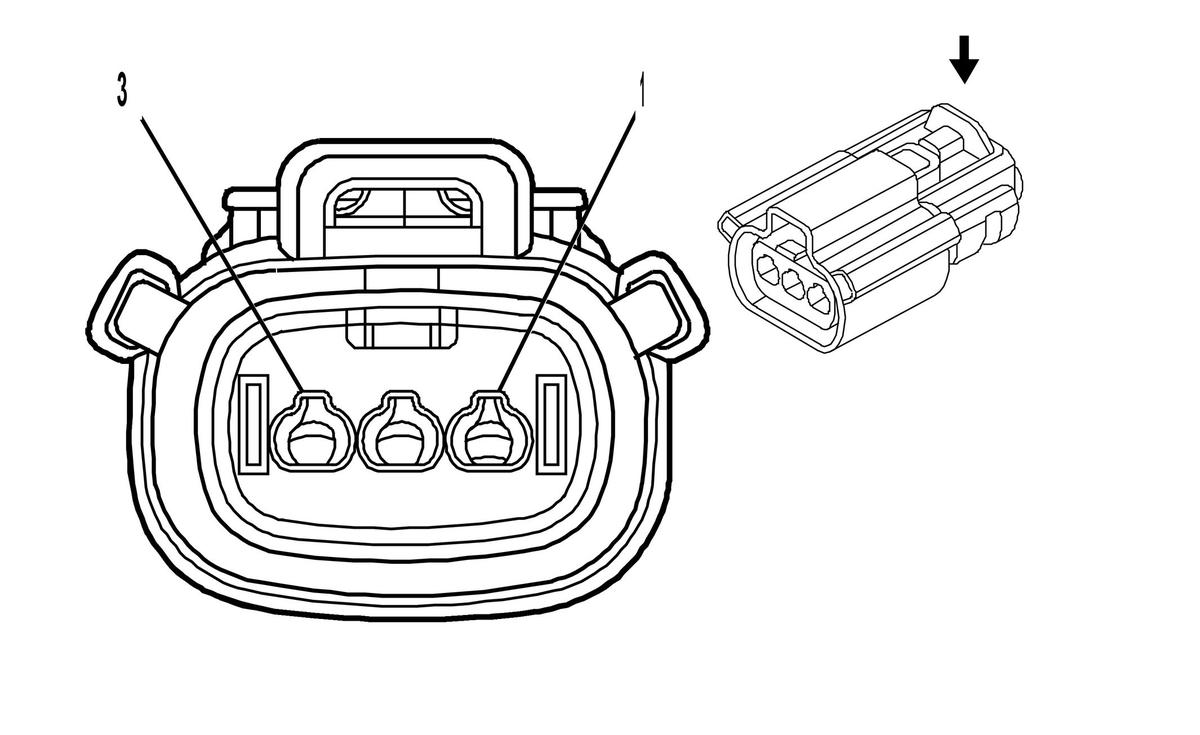

K10 Coolant Heater Control Module X2
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33471-0306
- Service Connector: 19301648
- Description: 3-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/BU |
4119 |
Local Interconnect Network Serial Data Bus 19 |
I |
- |
| 2 |
0.5 |
RD/WH |
2740 |
Battery Positive Voltage |
I |
- |
| 3 |
0.5 |
BK |
750 |
Ground |
I |
- |
