Installation Procedure

    Fig 1: Cooling Fan And Bolts
    GM4505438Courtesy of GENERAL MOTORS COMPANY
  1. Install Cooling Fan (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 cooling fan bolts (1) and tighten to 5 N.m (44 lb in)
    3. Fig 2: Radiator Assembly
    GM4505437Courtesy of GENERAL MOTORS COMPANY
  3. Install Radiator Assembly (1)

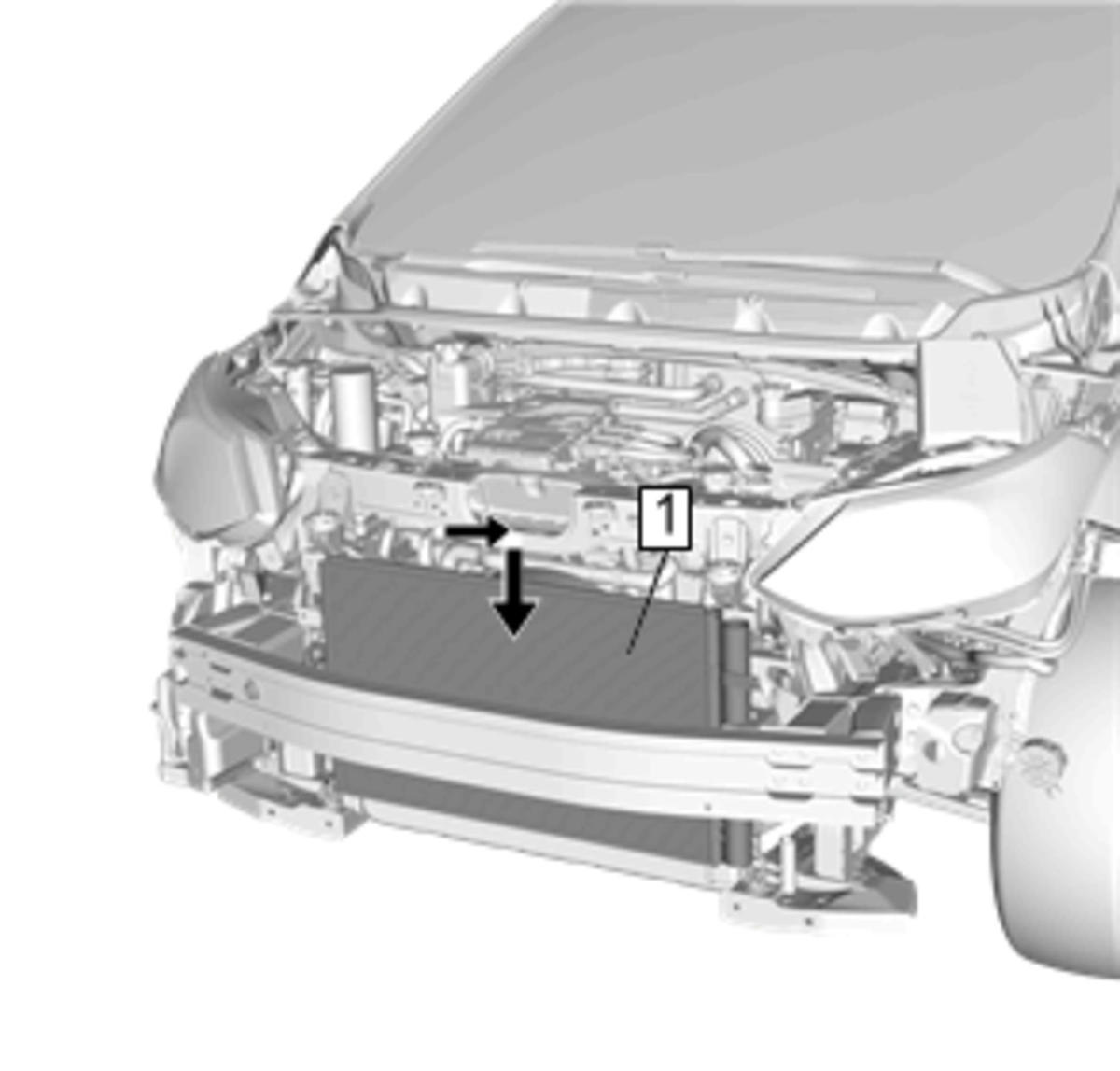

    4. Fig 3: Air Conditioning Condenser
    GM4530278Courtesy of GENERAL MOTORS COMPANY
  4. Install Air Conditioning Condenser (1). Refer to Air Conditioning Condenser Replacement
    5. Fig 4: Electrical Connector
    GM4504479Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connector (1)
    6. Fig 5: Drive Motor Generator Control Module Radiator Outlet Hose And Clamp
    GM4497520Courtesy of GENERAL MOTORS COMPANY
  6. Install Drive Motor Generator Control Module Radiator Outlet Hose (2)
  7. Engage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
    8. Fig 6: Electrical Connector
    GM4504476Courtesy of GENERAL MOTORS COMPANY
  8. Connect Electrical Connector (1)
    9. Fig 7: Drive Motor Generator Control Module Radiator Inlet Hose And Clamp
    GM4504473Courtesy of GENERAL MOTORS COMPANY
  9. Install Remove Drive Motor Generator Control Module Radiator Inlet Hose (2)
  10. Engage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
    11. Fig 8: Radiator Upper Brackets
    GM4574101Courtesy of GENERAL MOTORS COMPANY
  11. Install Radiator Upper Brackets (2) (Qty: 3). Refer to Radiator Upper Bracket Replacement
    12. Fig 9: Radiator Air Lower Baffle and Deflector Assembly
    GM4502457Courtesy of GENERAL MOTORS COMPANY
  12. Install Radiator Air Lower Baffle and Deflector Assembly (3). Refer to Radiator Air Lower Baffle and Deflector Replacement
    13. Fig 10: Front Bumper Shutter
    GM4533693Courtesy of GENERAL MOTORS COMPANY
  13. Install Front Bumper Shutter (2). Refer to Front Bumper Shutter Replacement
    14. Fig 11: Radiator Air Upper Baffle And Deflector
    GM4502460Courtesy of GENERAL MOTORS COMPANY
  14. Install Radiator Air Upper Baffle and Deflector (2). Refer to Radiator Air Upper Baffle and Deflector Replacement
  15. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (North America)Front Bumper Fascia Replacement (Europe, Korea)
    16. Fig 12: Front Wheelhouse Liner
    GM4533726Courtesy of GENERAL MOTORS COMPANY
  16. Install Front Wheelhouse Liner (4) (Qty: 2). Refer to Front Wheelhouse Liner Replacement
    17. Fig 13: Front Compartment Air Deflector And Fasteners
    GM4533729Courtesy of GENERAL MOTORS COMPANY
  17. Install Front Compartment Air Deflector (5). Refer to Front Compartment Air Deflector Replacement
    18. Fig 14: Front Compartment Front Sight Shield
    GM4532578Courtesy of GENERAL MOTORS COMPANY
  18. Install Front Compartment Front Sight Shield (3). Refer to Front Compartment Front Sight Shield Replacement
  19. Recharge the refrigerant. Refer to Refrigerant Recovery and Recharging
  20. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling .
  21. Check the cooling system for leaks.
  22. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
